These Warm White, Flexible LED Light sheets from LED Technologies are part of our extensive range of Flexible panel lighting products. This Warm white (2,700K) version features 392 x 2835 LED chips, with a CRI rating of >90 producing an exceptional quality of light. Each panel emits 32W of light which equates to 2,560 Lumens with a beam angle of 120 degrees. For larger projects, additional light sheets can be incorporated into your project by connecting them back to the LED Driver or an additional driver, each light sheet is 480mm x 240mm and requires a 24V Constant Voltage LED Driver that can be connected to any of the terminals using the starter cable (sold separately).

Link/power terminals can be found on all sides of the LED Sheet, enabling them to be connected together easily using the link cables. Our LED Light Sheets can be cut along the marked cutting lines as required to enable you to install them into various shaped light boxes or for other special projects where a bright flexible light is required.

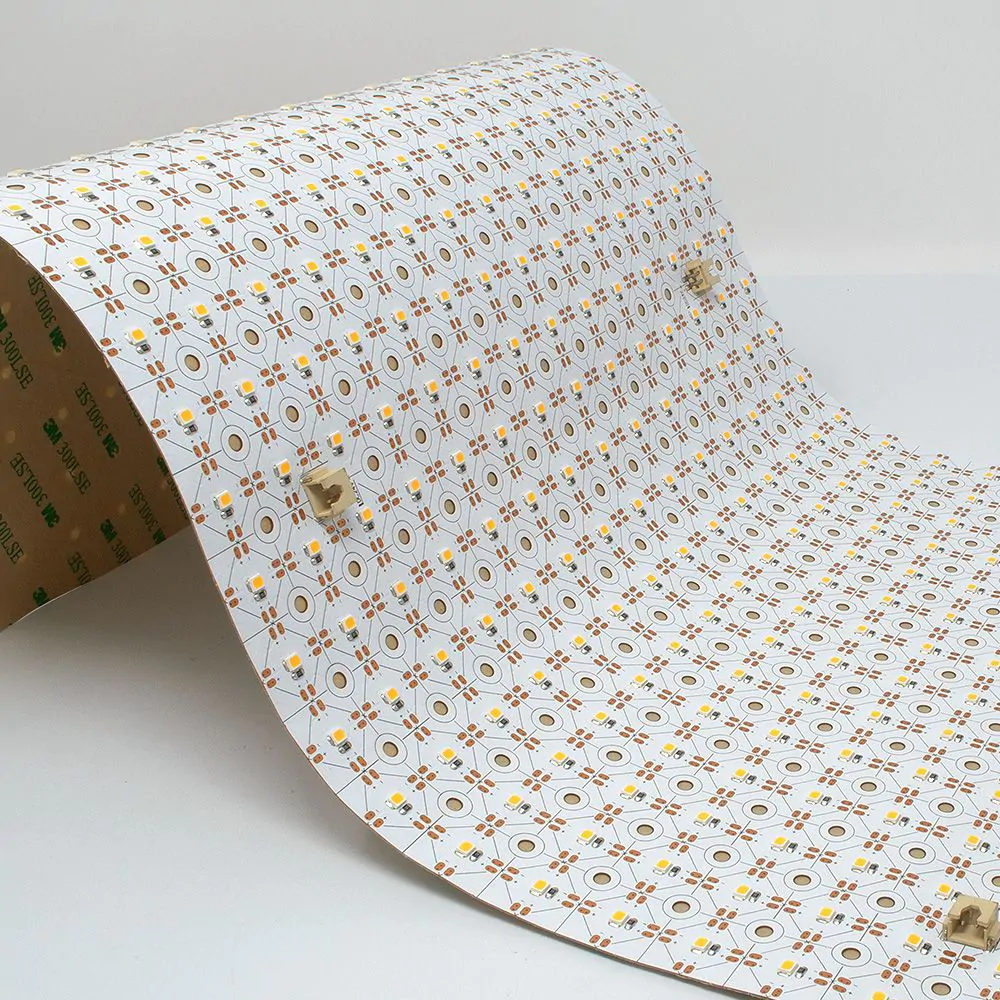

The light sheets are highly flexible allowing them to bend as required making this product ideal for backlighting curved areas, walls, reception desks, pillars, and similar shapes. The panels are energy-efficient and easy to install, making them suitable for any project that requires a bright flexible lighting solution.

For further information about our Flexible LED panel Lighting solutions and professional control equipment, please contact our technical sales team by phone, email, WhatsApp or via live chat on our website.

Features:
Can be cut to size as required
Very flexible
120° beam angle
392 x 2835 LED's at 32W / sheet
Bright warm white light 2700K CRI>90
Light sheet size 480mm x 240mm
Linkable up to 3 x units together
Supplied in packs of 3 sheets
Powerful 300LSE 3M™ sticky backing to fix firmly in place

Technical Specification
Colour:Warm White (2700K)
Colour Wavelength:600-610nm
Power per Sheet:32W
Current:1.292A
Input Voltage:24V DC
Cut Intervals:17.1*17.1mm
LED Quantity per Sheet:392 LEDs
LED Type:SMD2835
Cross Section:480x240mm
Beam Angle:120°
CRI Rating:N/A
Lumens per LED:6-7 lm/LED
Lumens per Sheet:2560 lm
Light Intensity per LED:1800-2100 mcd
Power Consumption per Sheet:32W/pcs
IP Rating:IP20
Average LED Lifetime:30,000 Hours
Sheet Size:480 x 240 (mm)
Base Type (Both Sides):Terminal Type
CE & RoHS:Yes
Peelable Back:300LSE 3M™

Product Dimensions
