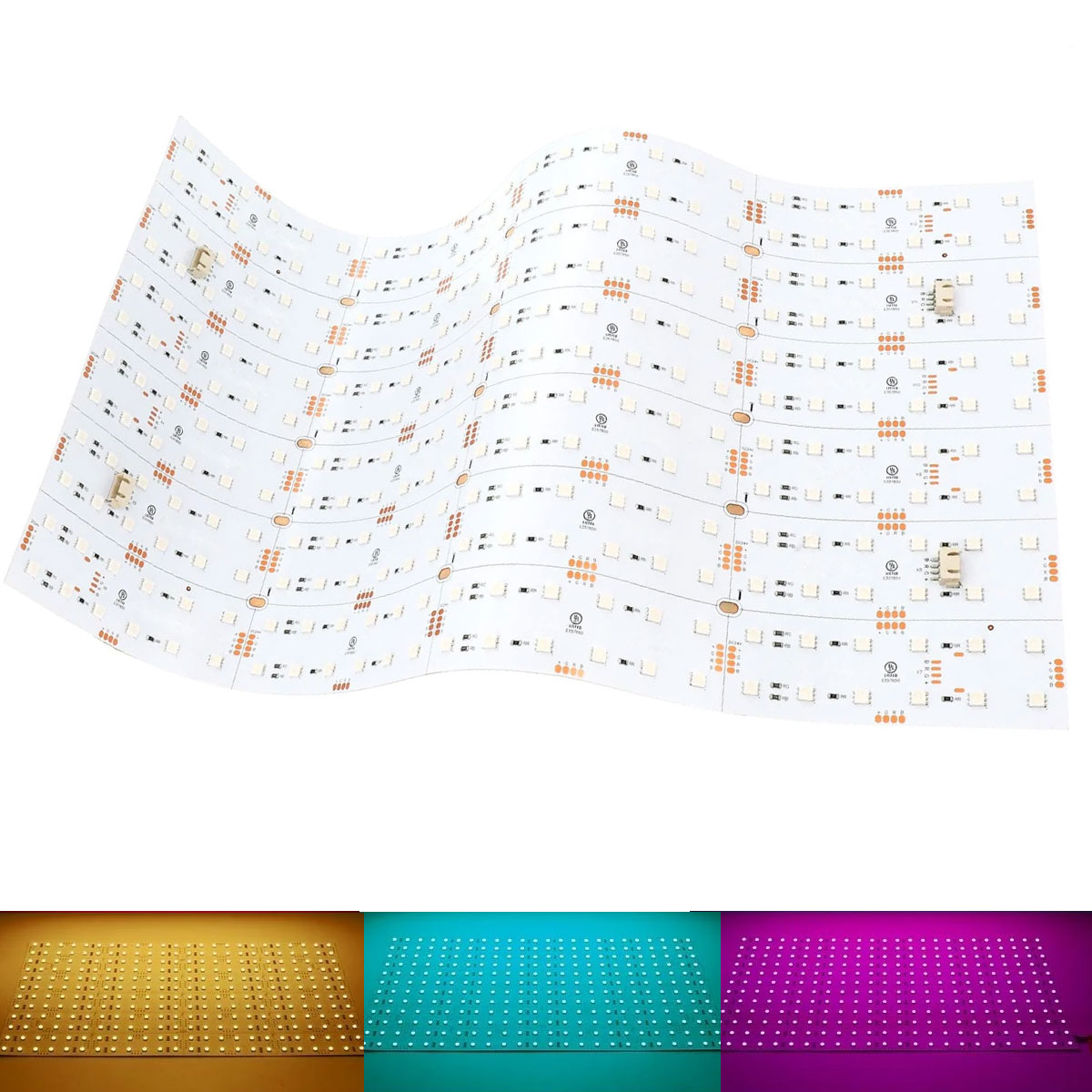

Wrap corners and trim to fit a unique shape with the RGB LED Light Sheet. The 18.9” x 9.5” sheet can be cut along the horizontal, vertical, or diagonal black lines of the 6 x 4 rows to customize the flexible sheet. Even in signs or backlighting with low clearance, the slim light sheet delivers powerful lighting, perfect for signage applications. On-board XH connectors eliminate soldering and simplify installation. To connect multiple light sheets, use the included 8cm interconnect cable. To install, use the 3M™ adhesive backing, or fasten it with screws at the indicated spots.

Product Details:
Segment size: 4.72" x 1.58"- 24 segments per sheet
Max Run with Class 2 wiring: 1.5 sheets
Includes one 0.5m pigtail connector and one 8cm interconnect
Input connection: 4-pin XH connector
PWM dimmable
24 VDC
UL Listed
7-year warranty

Specifications
Ambient Operating Temperature：-20 to 60 °C (-4 to 140 °F)
Certifications/Compliance：UL Listed
Current Draw：2.5 A
Dimensions：18.9in x 9.5in
Dimmable：Yes
Dimmer Type：PWM
Enclosed Fixture Rated：Yes
Environmental Rating：Non-weatherproof, Suitable for Dry Locations
Finish：White
Input Connection Type：Pigtail, XH 4-Pin Connector
IP Rating：IP20
LED Beam Angle：120°
LED Color：RGB
LED Chip Type：5050 SMD
LEDs per Segment：12
LED Lifetime：50000 Hours
Max Run (Class 2)：1.5 Sheets
Operating Voltage：24 VDC
Output Connection Type：XH 4-Pin Connector
Product Dimensions：18.94″ x 9.50″ x 0.26″
Segment Size：4.72 in. x 1.58 in. (120 mm x 40 mm)
Wattage：60 Watts
