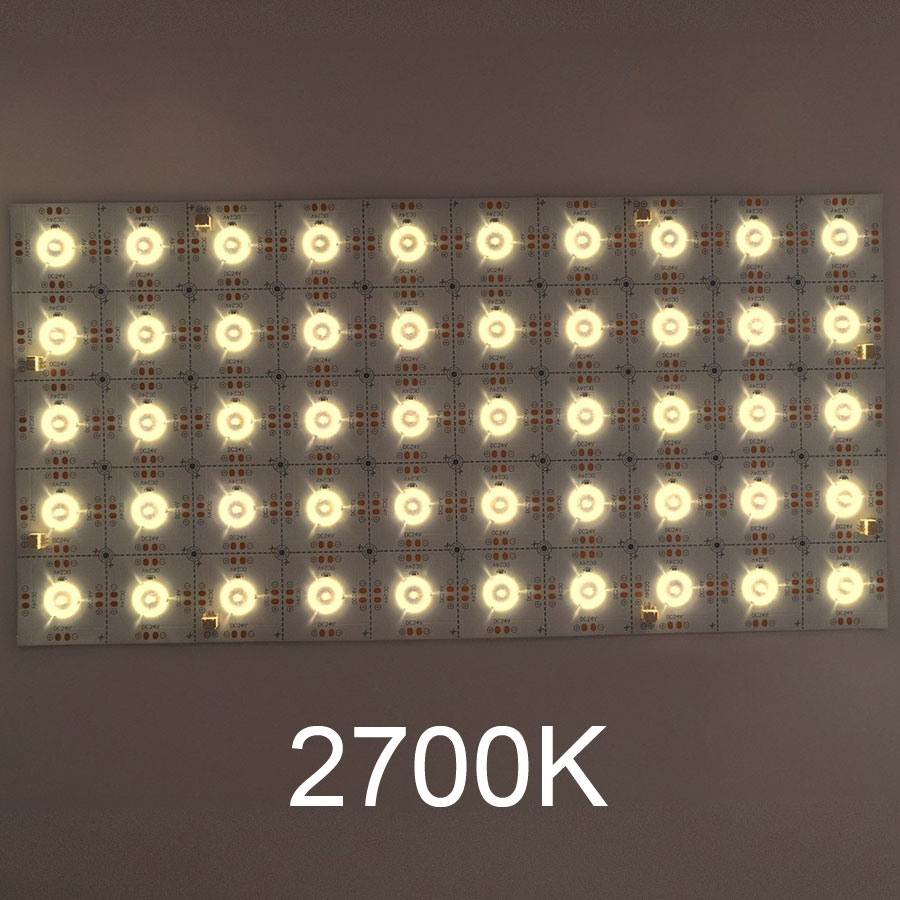

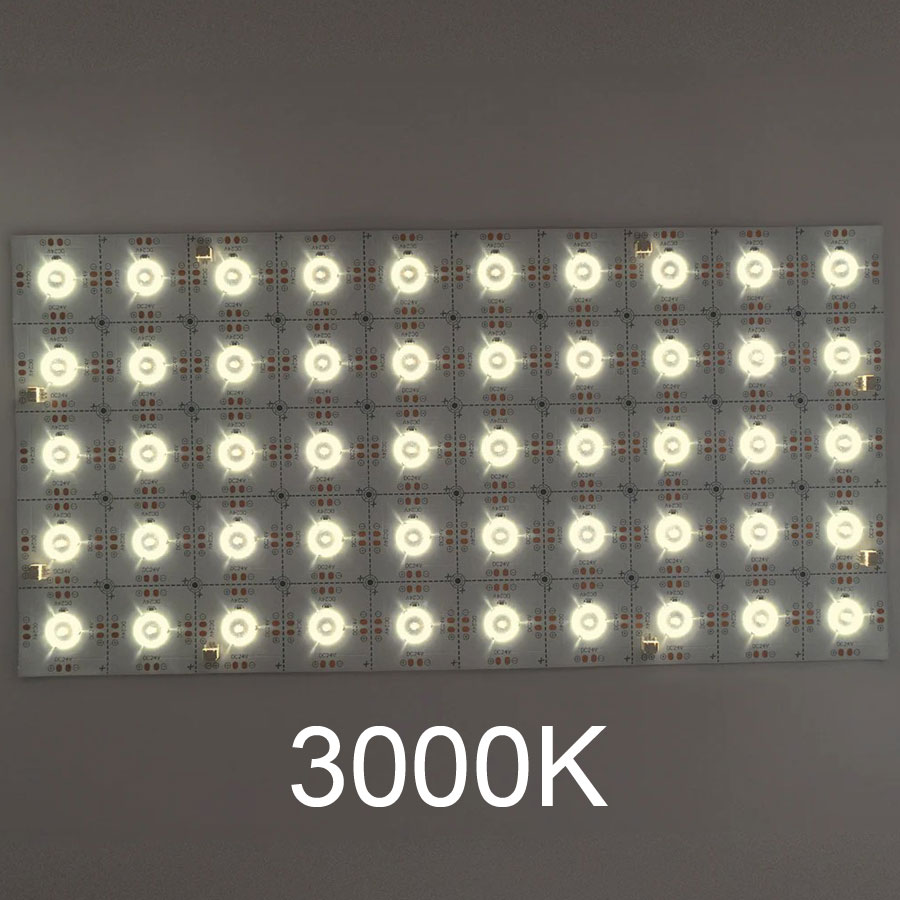

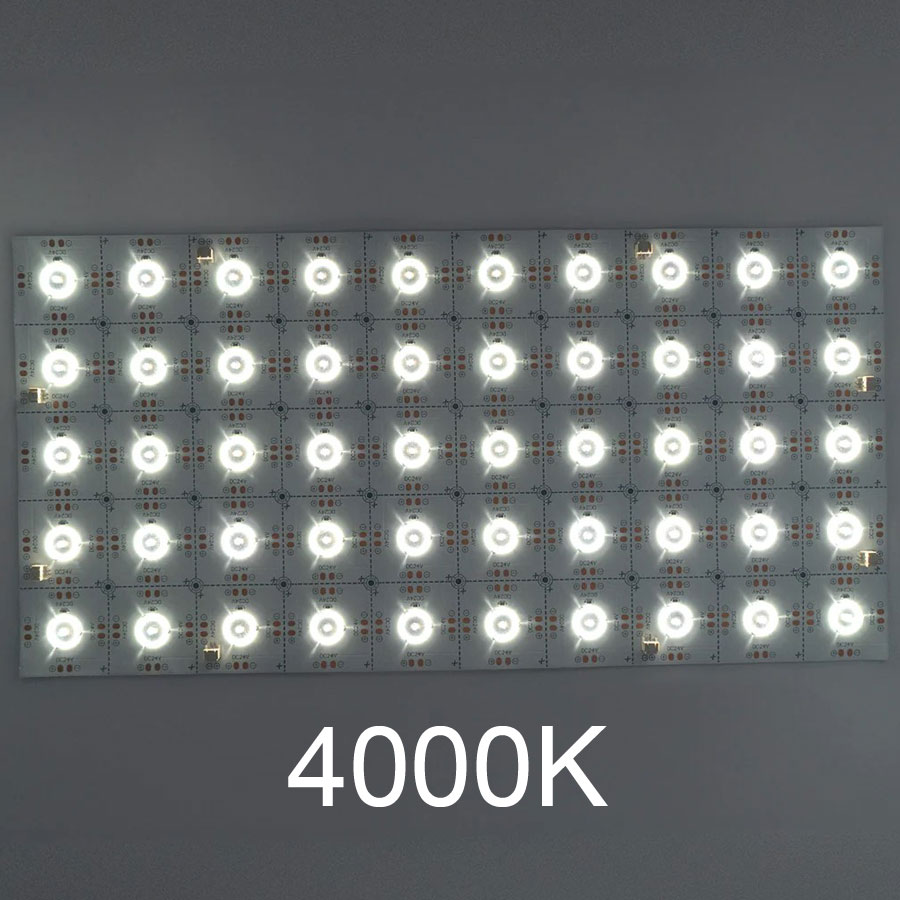

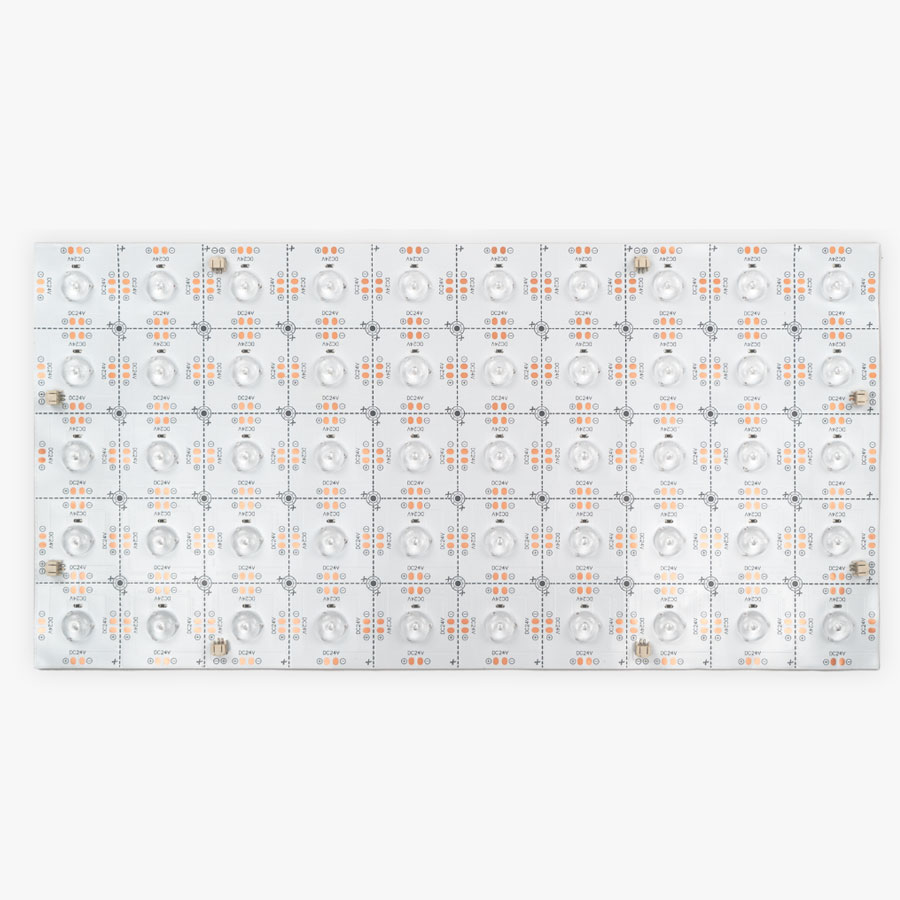

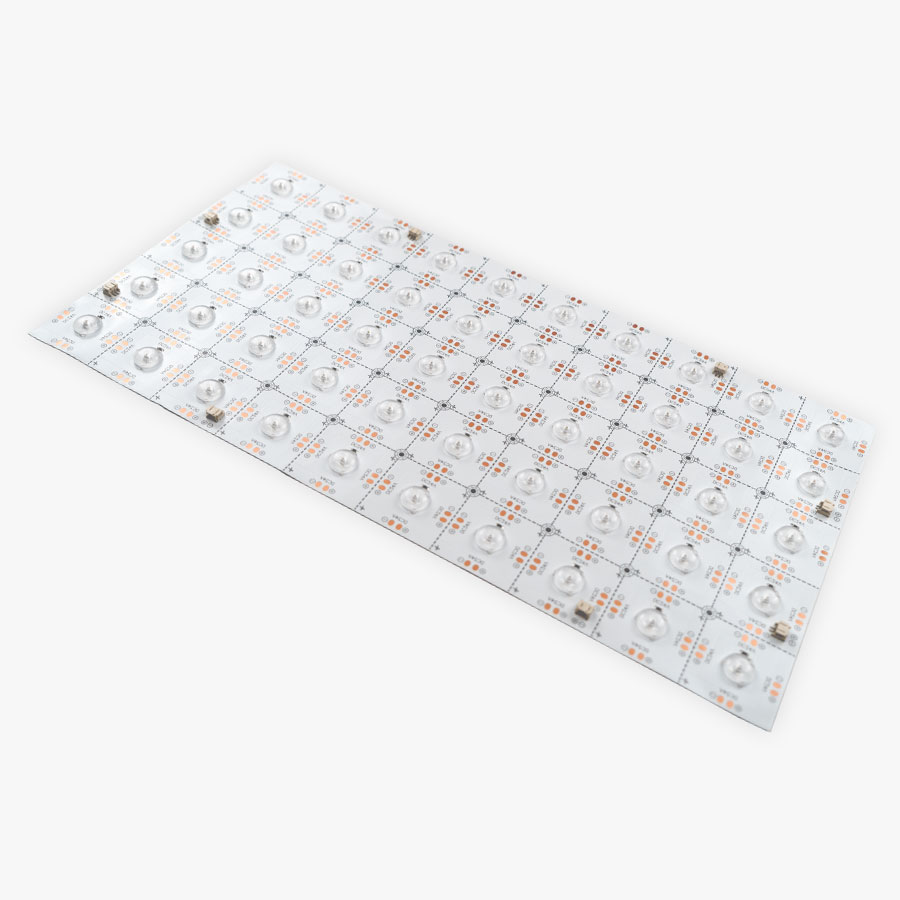

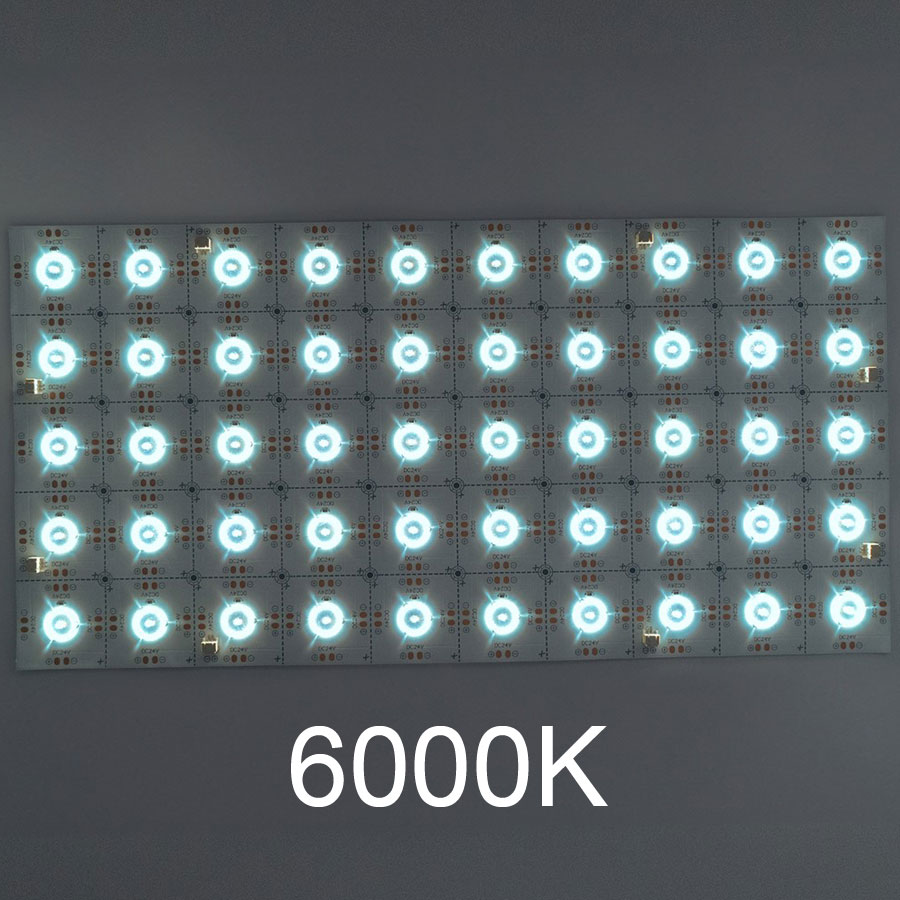

Lo-Glow™ Light Sheets are the go-to choice when your project demands a big impact in a limited amount of space. Featuring 90+ CRI and 160 Degree Mesh Diffusion, these flexible light sheets are specially designed to deliver crisp, hot-spot free illumination in as little as a half inch of space. If you’re constantly running into hot spot issues with your signage and backlighting projects, this is the product for you. And with the ability to daisy chain 10 sheets in series with Plug and Play connections, your installers and bottom line will be thanking you again and again. Fewer wire runs and less man-hours means more time and money in the bank. When your designer throws you a curveball, our Lo-Glow™ light sheets are here to help you save the day. Customizable to nearly any shape down to a single diode/square, you and your crew are free to make needed adjustments onsite, even at the last minute. Choose from 4 color temperature options to meet the complex needs of any given project space, sign depth, or material selection. Each light sheet ships with (2) 8” pigtail connectors, (2) 2.75” jumper connectors, and (10) plastic spacers.

Specifications
Adhesive Backing:    3M Adhesive Tape (300LSE)
Beam Angle:    160°
Cut Length:    1-7/8" x 1-7/8" (48mm x 48mm)
Dimensions:    18-7/8" Long (480mm), 9-7/16" Wide (240mm), 1/4" Tall (6.5mm)
Estimated Lifespan:    Up to 50,000 hours
Weight:    0.43 lb (0.25 kg)
Input Voltage:    24VDC
LED Quantity:    50 (10 rows, 5 per row)
LED Type:    SMD 2835 LED Chip
Max Power Consumption:    20W
Max Run Length:    10 Sheets (in series)**According to the National Electrical Code (NEC), wiring exceeding 96 watts is no longer                                  considered Class 2 wiring. For a class 2 circuit the limit is 4 sheets
CRI:    90+
Max Lumens:    1800 lumens
Overall Coverage:    1.25 ft²
IP Rating:    IP20
Max Operating Temperature:    -25°C to 60°C (-13°F to 140°F)
Max Storage Temperatures:    -40°C to 80°C (-40°F to 176°F)
Suitable Uses:    Dry Locations Only
Dimmable:    Yes
Standards / Certifications:    UL/cUL Listed, RoHS, CE
Warranty:      5 Years

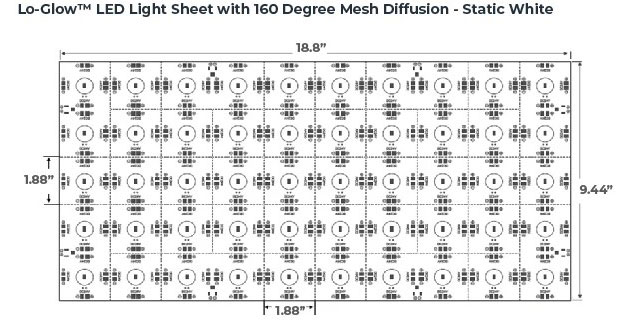

Product Dimensions
