The Arc™ Backlighting Starter Kit is designed to illuminate up to 20 square feet of surface using a single power supply and one home run. It’s an ideal solution for vertical backlighting applications such as accent walls and backsplashes. For larger surfaces, simply add additional kits to scale your installation.
This plug-and-play kit includes everything you need to backlight a surface with confidence. Add your preferred PWM dimmer control to complete the setup.

According to the National Electrical Code (NEC), wiring exceeding 96 watts is no longer considered Class 2 wiring.

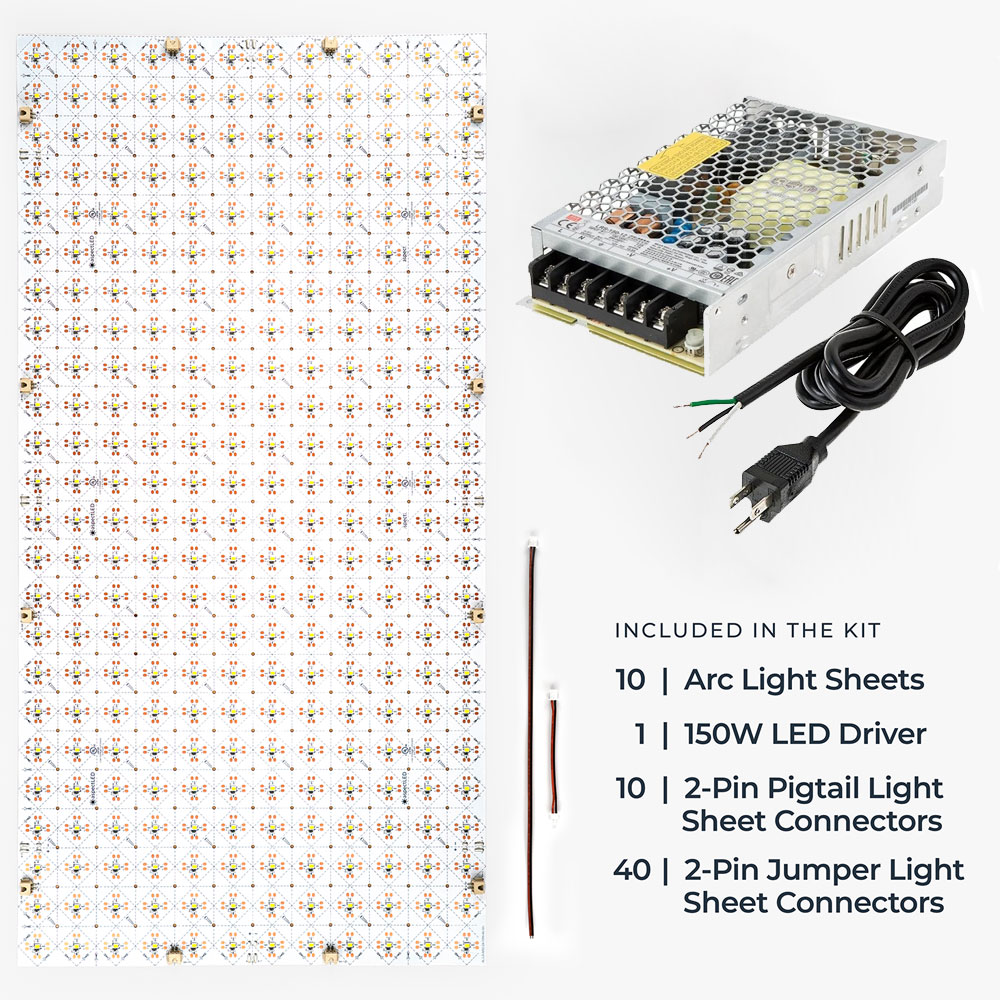

Kit Includes:
(10) Arc™ - LED Light Sheet - 12x24, Static White
(1) 150W LED Power Supply – Non-Dimmable
(10) 2-Pin Static White Light Sheet Pigtail Connectors
(40) 2-Pin Static White Light Sheet Jumper Connectors

Features:

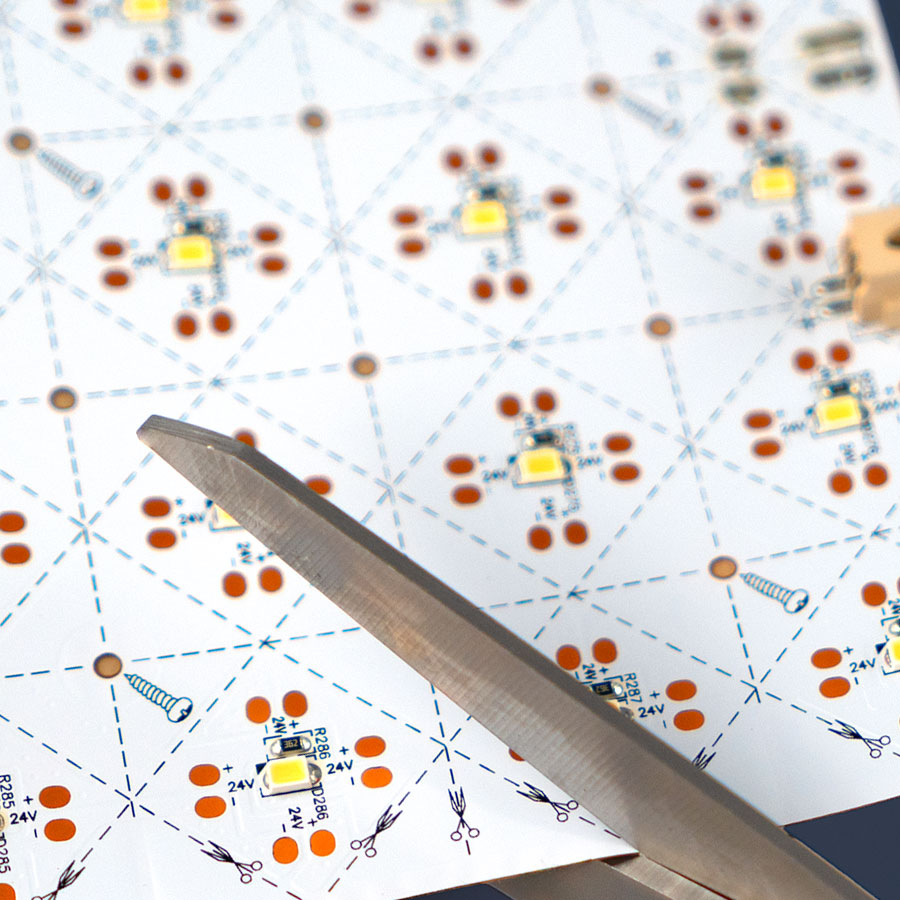

Maximum Customization: 1ft x 2ft sheets are cuttable to nearly any shape. Cuttable down to 1 diode (1" x 1" squares). Dual direction cut lines allow for last-minute adjustments, design changes, and customization on-site.
Wire/link up to 23 sheets in series (46 square feet), reducing installation time and costs with fewer runs without maxing out your power supply.
Maximum Flexibility: Thin, flexible backing makes it easy to arch around contours and curved surfaces or bend over corners. Backed with 3M adhesive tape for easy mounting and installation.

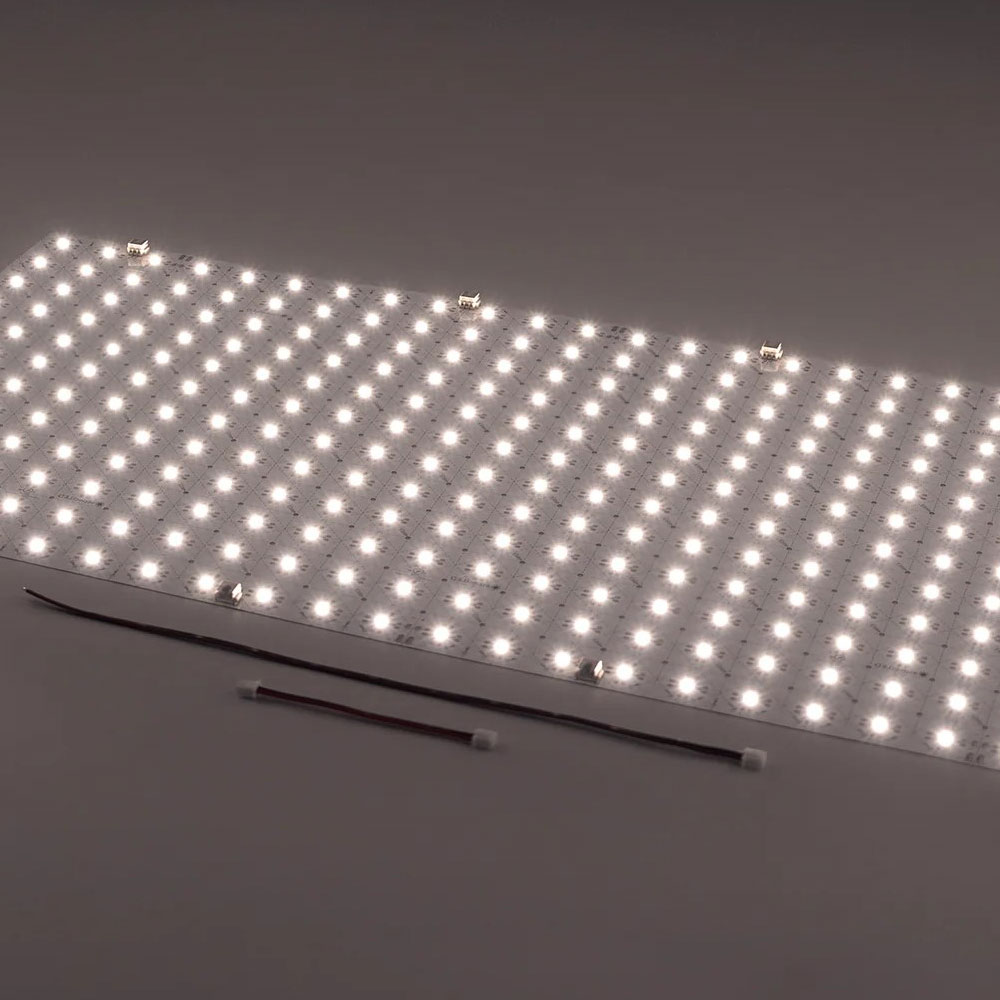

Ready to use accessories: Each light sheet ships with pigtail and jumper XH-style plug connectors to link multiple sheets with integrated connection blocks. Need extras? Replacements can be found here.
Commercial Grade quality: Engineered for demanding jobs. Up to 50,000 hours of continuous, reliable illumination.

Specifications
Adhesive Backing:    Yes
Beam Angle:    120°
Cut Length:    1" x 1"
Dimensions:    24" Long x 12" Wide x 0.26" Tall
Estimated Lifespan:    50,000 Hours
Mounting Method:    3M Adhesive Tape
Weight:    0.42 lbs
Efficacy (lumens per watt):    110 Lumens/Watt
Input Voltage:    24VDC
LED Quantity:    288 LEDs/sheet

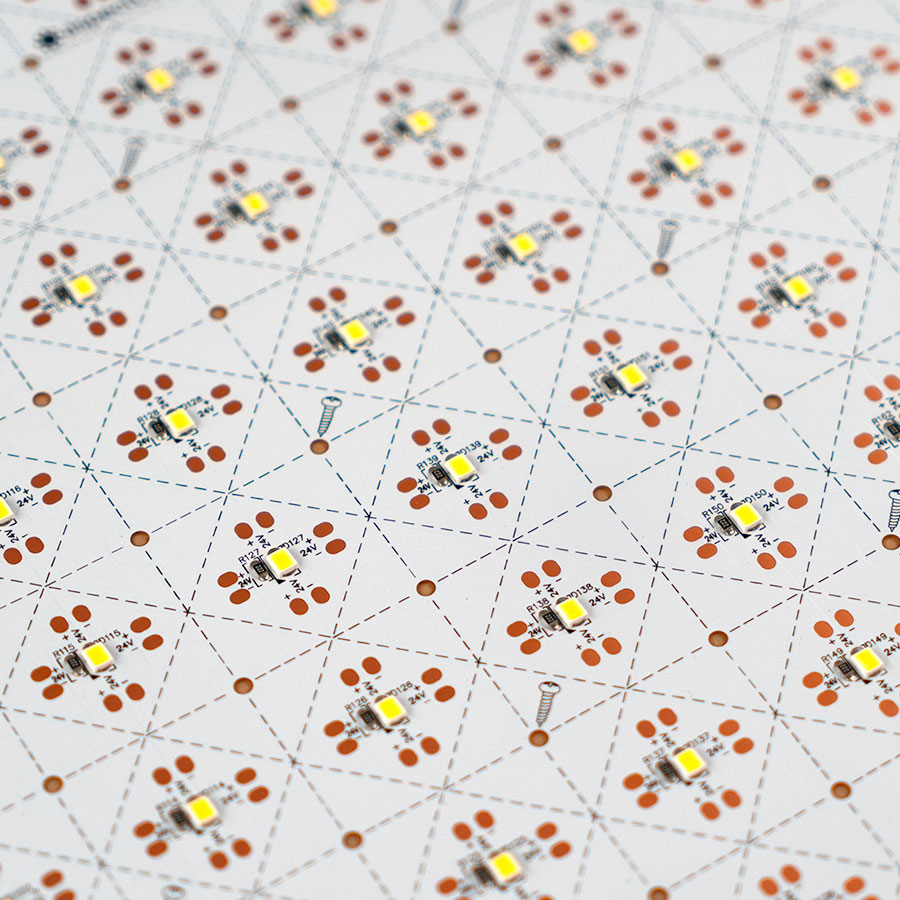

LED Type:    SMD 2835
Max Power Consumption:    10 watts
Max Run Length:    Class 2 = 9 sheets, Non-Class 2 = 23 sheets
CRI:    90+

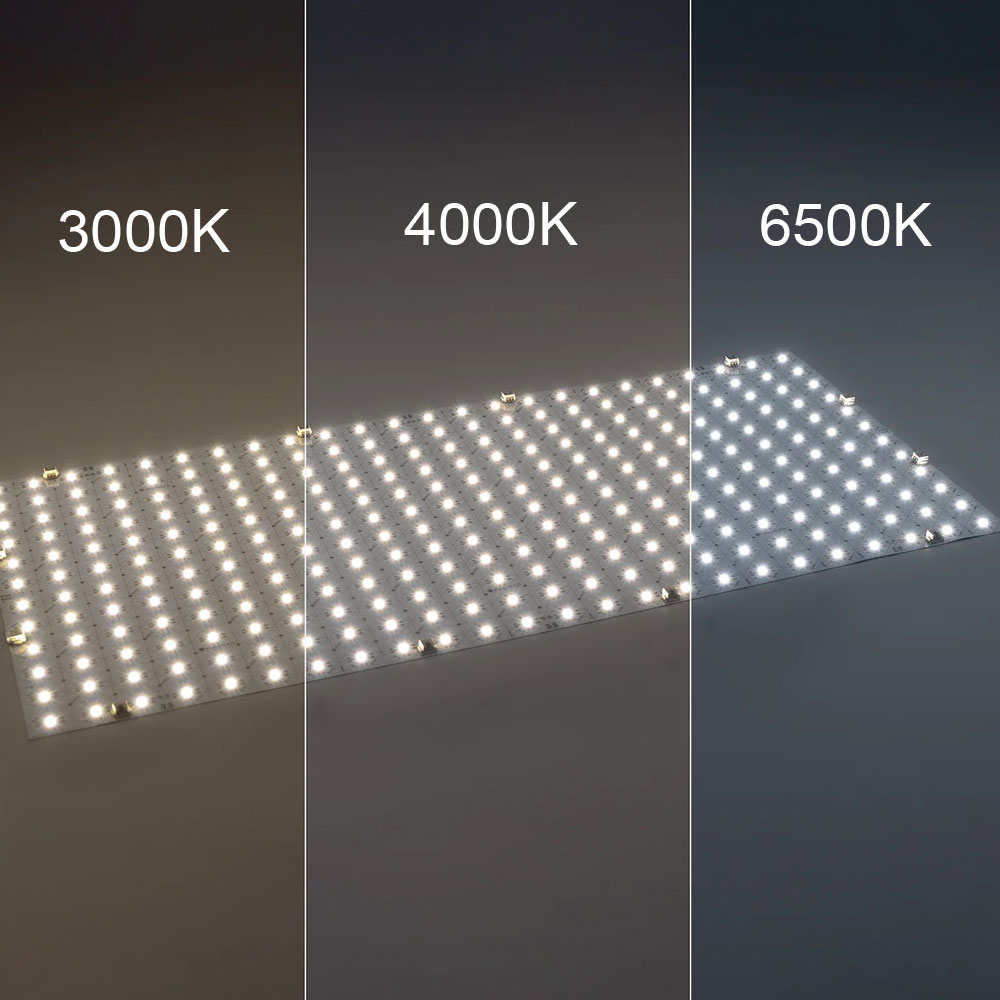

LED Color Options:    3000K, 4000K, 6500K
Max Lumens:    Up to 1100 lumens
Overall Coverage:    2 ft²
IP Rating:    IP20
Max Operating Temperature:    68°-113°F (20-40°C)
Max Storage Temperatures:    140°F
Suitable Uses:    Dry Locations Only
Dimmable:    Yes
Standards / Certifications:    RoHS, CE, UL
Warranty:      5 years

Applications
Backlighting for signage and/or large format graphics
Backlighting for kitchen backsplashes and translucent stone countertops
Backlighting for accent walls, facades, and other architectural features
Commercial/Retail Lighting
Showroom/Tradeshow Displays
Public Art
Hospitality/Commercial Lobbies
Illuminating Stained Glass (museums, art galleries, churches, etc.)
DIY projects
