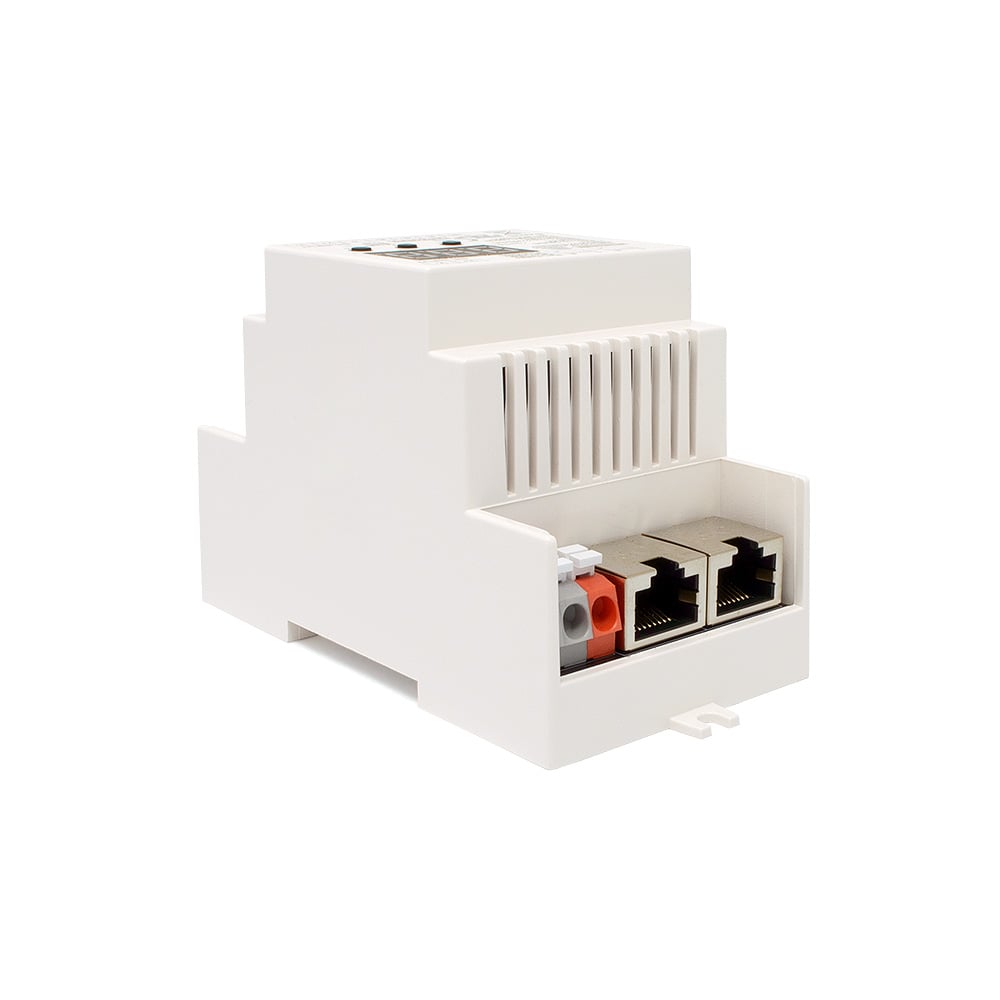

With an array of professional features including DMX RDM protocol, Fixed PWM frequency and adjustable dimming GAMA curve, this compact, DIN rail mountable DMX Decoder from our Sunricher range of control products is perfect for use for both commercial and domestic projects.

This DIN Mountable DMX Decoder has a high PWM frequency (up to 35KHz) and a 7-step Dimming GAMMA curve. These features ensure the decoder is perfect for TV & Film production, and can also be used for stage lighting control.

The RDM system feature enables the decoder to be set up directly from an RDM enabled DMX master. Setting DMX addresses can also be done on the on-board digital display and menu buttons can be used to set up the decoder manually.

The decoder can control single-colour, dual-colour, tri-colour and quad-colour 12V, 24V or 36V LED strips up to 5A per channel output.

The DMX signal indicator built into the digital display will flash when a DMX signal is detected. The DMX data connection can be made either with hard-wired terminals or the RJ45 connectors.

You will need to connect a constant voltage 12V, 24V or 36V driver depending on the voltage of the lighting equipment you want to control, the input and output connections are made in a terminal block.

When new firmware updates become available for the DMX system, the decoder can be connected to a Windows PC to the DMX hard-wired port and then the software RS285-OTW will update the decoder.

For more information on this and all our professional control products please contact our technical sales team by phone, email, or Live chat via our website.

Specifications
DIN mountable DMX decoder
RDM enabled
RJ45 input & output connections for DMX
Four ouputs for RGBW LED Strip
Single, CCT, RGB or RGBW channel adjustable
Adjustable dimming curve
Fixed 2KHz PWM Frequency
5A / channel
5 Year warranty
