Sunricher DALI PIR & Light Sensor (Ceiling Mountable)
Key Features

Sole UK & Ireland Authorised Distributor

DALI-2 compatible

DALI BUS powered (no additional power supply required)

PIR motion detection sensor

Ambient light level detection

LED status indicator

Recommended mounting height: 2.5m

130° detection angle

Fully configurable via DALI Master

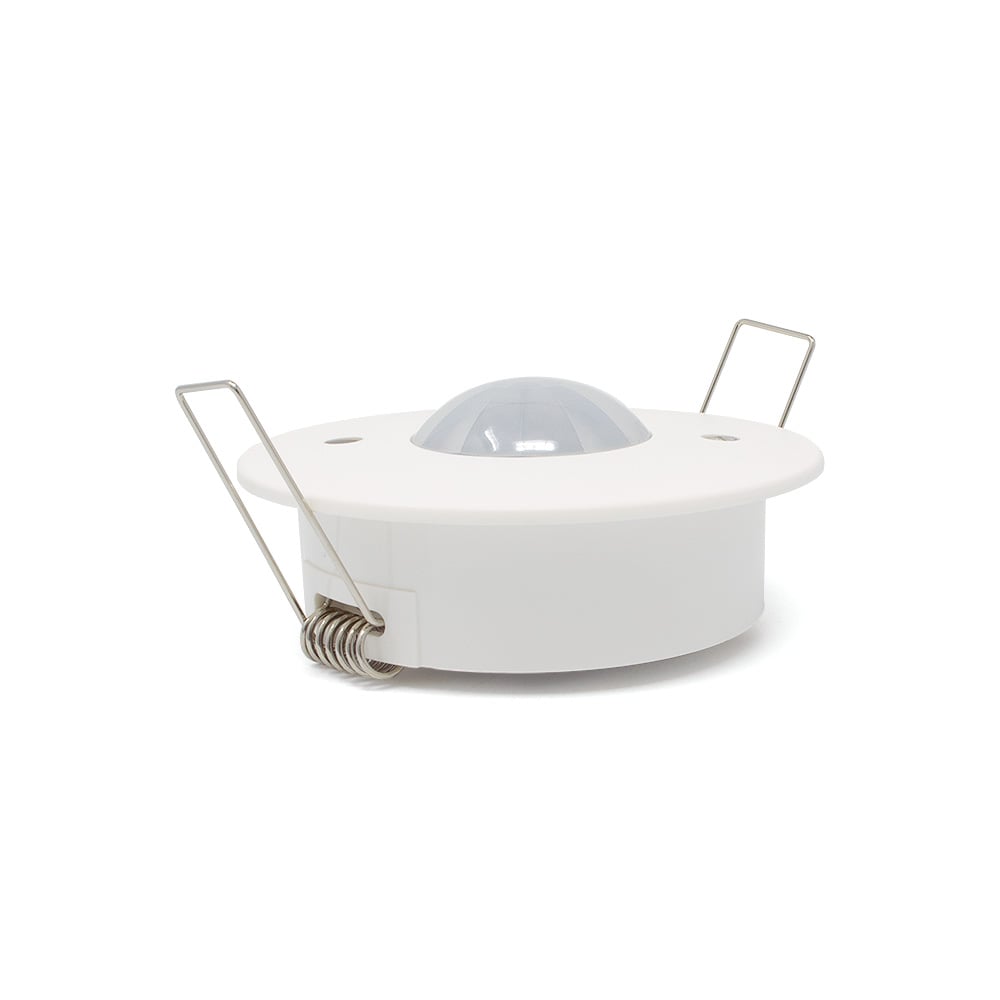

DALI Light Sensor with PIR Motion Detection (Ceiling Mounted)
The SRDA9030APIR is a ceiling-mountable DALI light sensor designed for intelligent lighting control within DALI-2 compliant systems. Configurable via a DALI Master program, it provides automated lighting control based on both occupancy and ambient light levels.

This DALI light sensor connects directly to the DALI bus, meaning no additional power supply is required. Once installed, it can be fully programmed through the DALI Master to suit a wide range of lighting control applications.

DALI Motion Sensor Functionality and Light Level Detection
This device functions as both a DALI motion sensor and an illuminance detector, combining PIR movement detection with smart ambient light sensing.

PIR motion detection triggers lighting control based on occupancy

Light level sensor measures ambient brightness for automated adjustment

LED indicator shows system status:

Red flash = motion detected

Green flash = DALI signal received from controller

The integrated design ensures reliable performance in dynamic lighting environments where both occupancy and daylight levels must be considered.

Applications for DALI Motion Sensor Systems
These DALI sensors are ideal for commercial and professional installations, including:

Hospitals

Schools

Retail environments

Conference rooms

Office buildings

Other commercial lighting control applications

By using a DALI motion sensor system, lighting is only activated when required, improving energy efficiency and reducing running costs.

The on-time delay and control behaviour are fully configurable via a DALI-2 compliant central controller or DALI Master system.

Support & Technical Information
For more information on this DALI light sensor or any of our professional lighting control products, please contact our technical sales team via email, phone, or live chat on our website.

Specifications
DALI 2 compatible
DALI BUS powered
PIR Motion sensor
Ambient light level detection
LED Status sensor
Recommended mounting height 2.5m
130deg detection angle
Configurable from DALI Master
