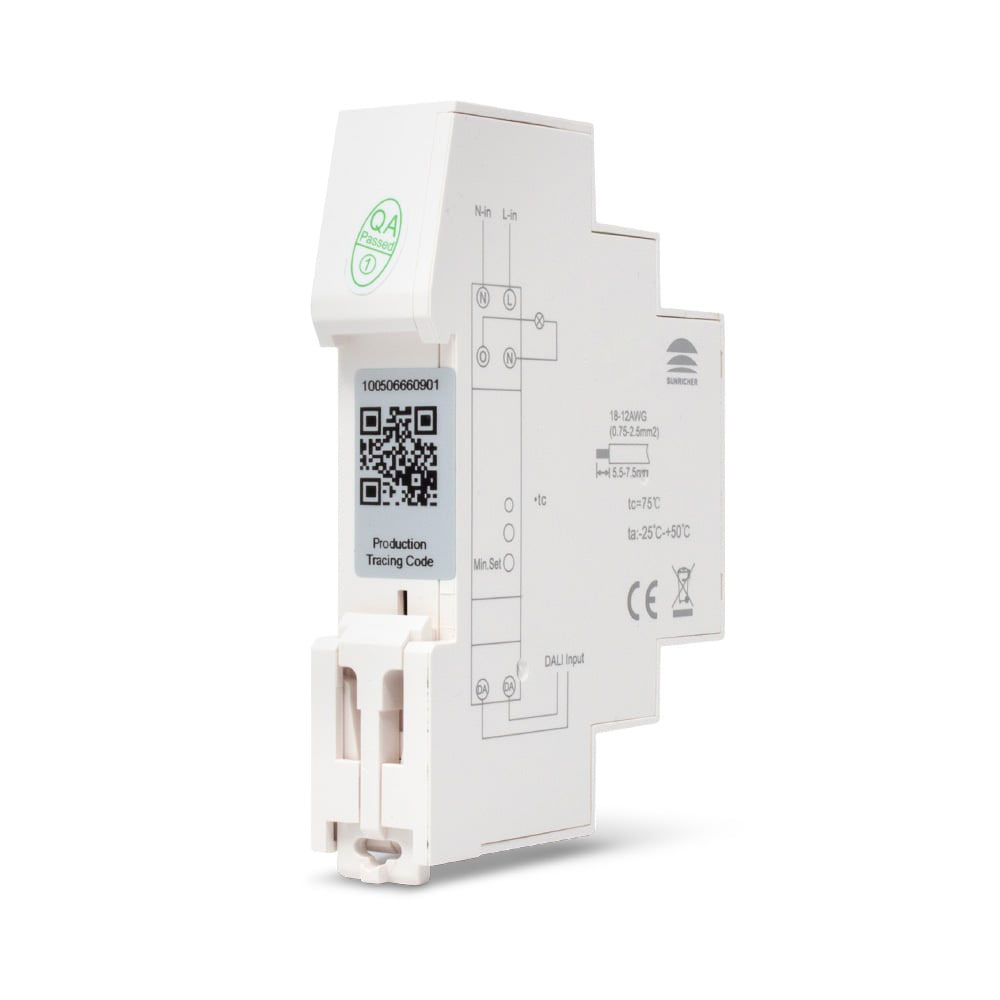

From our professional range of Sunricher control products, this DALI Phase Cut Dimmer is designed to be mounted onto a standard-size DIN Rail. Using DALI 2 protocols, this dimmer is compatible with all DALI2 and DALI1 installations. It is also fitted with handy "PUSH DIM" terminals should you wish to switch and dim your lighting products from a momentary PUSH switch.

The dimmer can switch and dim Resistive, Capacitive, and Inductive loads, including loads of up to 400W for incandescent lamps and 200W for Dimmable mains-powered LED lamps and Dimmable LED Drivers. The dimmer will also control low-voltage halogen lamps with an electronic transformer.

Both the power on brightness and the minimum brightness can be set using the buttons on the front of the dimmer with a dimming range of between 5% and 100%. The minimum brightness level setting can be used for circumstances where some lamps have been found to flicker when set to 5%, this allows a flicker-free minimum dimming level to be set. This product is supplied with a 5-year warranty and is suitable for both commercial and domestic applications where mains-powered lamps need to be controlled using DALI protocols.

Note: Both leading edge and trailing edge versions of this product can be ordered however these modes are factory set, our stock items are by default set to trailing egde.

For more information on this or any of our professional control products, please contact our technical sales team by phone, email or via live chat and WhatsApp on our website.

Specifications
DALI AC Phase cut dimmer
100V - 240V AC input / output
Supports resistive, capacitive & inductive loads
Up to 400W Incandescent lights
Up to 200W dimmable LED lamps, & drivers
Trailing edge available
Factory can set to leading or trailing edge
Adjustable minimum & start up brightness
DIN Rail Mountable
