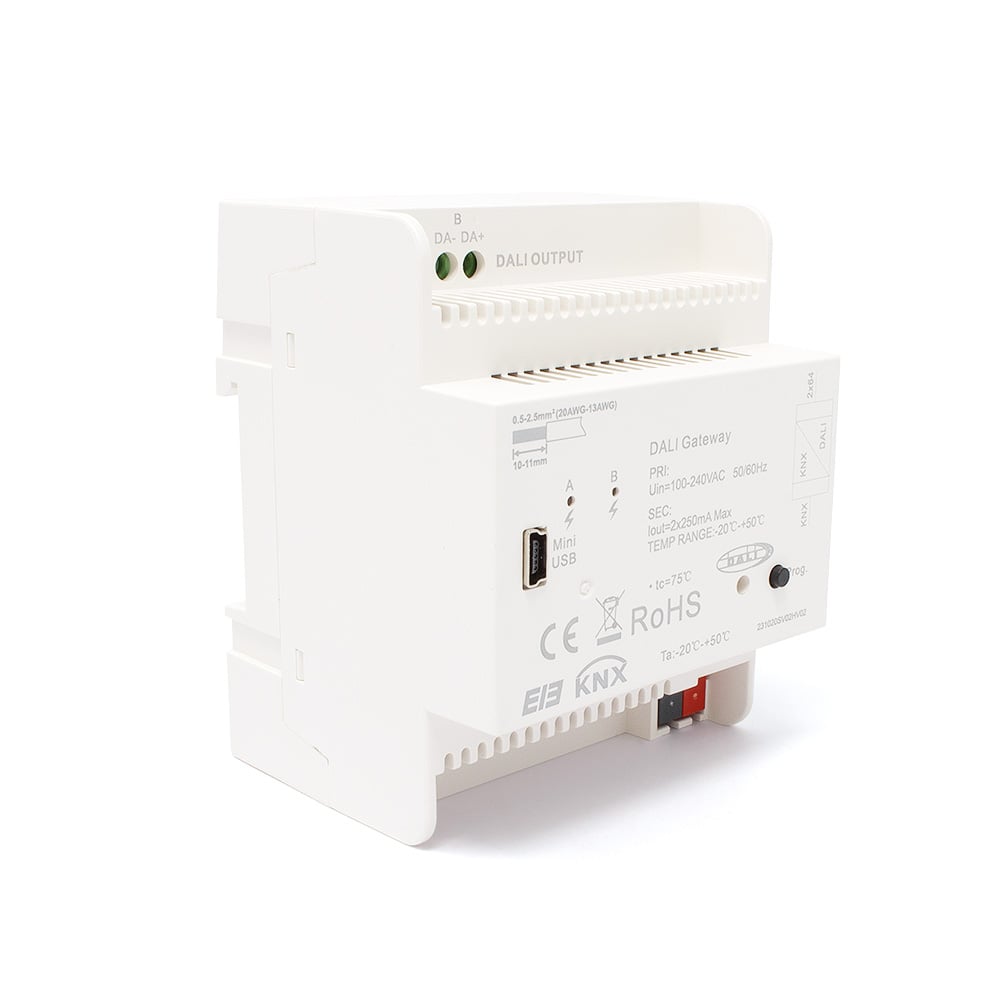

The Sunricher KNX to DALI Gateway enables you to control your DALI 1 or DALI 2 products from your KNX automation system. The device has 2 x DALI outputs which can support up to 64 DALI devices on each output. This device is from our professional range of Sunricher control products and enables smooth integration between the KNX and DALI protocols. With its 35mm DIN mount, the gateway can be fitted to a standard 35mm DIN rail for ease of mounting, and it easily connects to both the KNX and DALI BUS. The unit is powered by a 100V to 240V AC 50/60Hz mains power supply.

The two DALI outputs on the gateway support DT6, DT8, DT8 RGB, Tc and XY Coordinates to IEC 62386, and you can mix the DALI DT6 & DT8 devices in a mixed configuration if required, the lamps connected to each of the DALI Channels are controlled via KNX using: Broadcast, 16 x lighting groups & 6 x scenes and the fault status (lamps or ballasts) of each DALI device or the lighting group is sent via the KNX BUS.

There is a Mini USB port on the front of the unit to connect to a PC for programming, to program the KNX / DALI Gateway, the KNX and DALI parts need to be programmed separately, for the DALI section this needs to be done with the DALI PC software "DALI MASTER", the KNX part of the Gateway needs to be programmed using the "ETS5" Software.

For more information on this and all our professional control products please contact our technical sales team by phone, email or via live chat on our website.

Specifications
Suitable for DALI DT6 & DT8 devices
Integrates DALI into a KNX system
2 x Channel DALI output
No additional DALI power supply required
Programmable through ETS software
Integral DALI BUS state monitor
KNX BUS input
Mini USB Port for connecting to PC
35mm DIN Rail mountable
