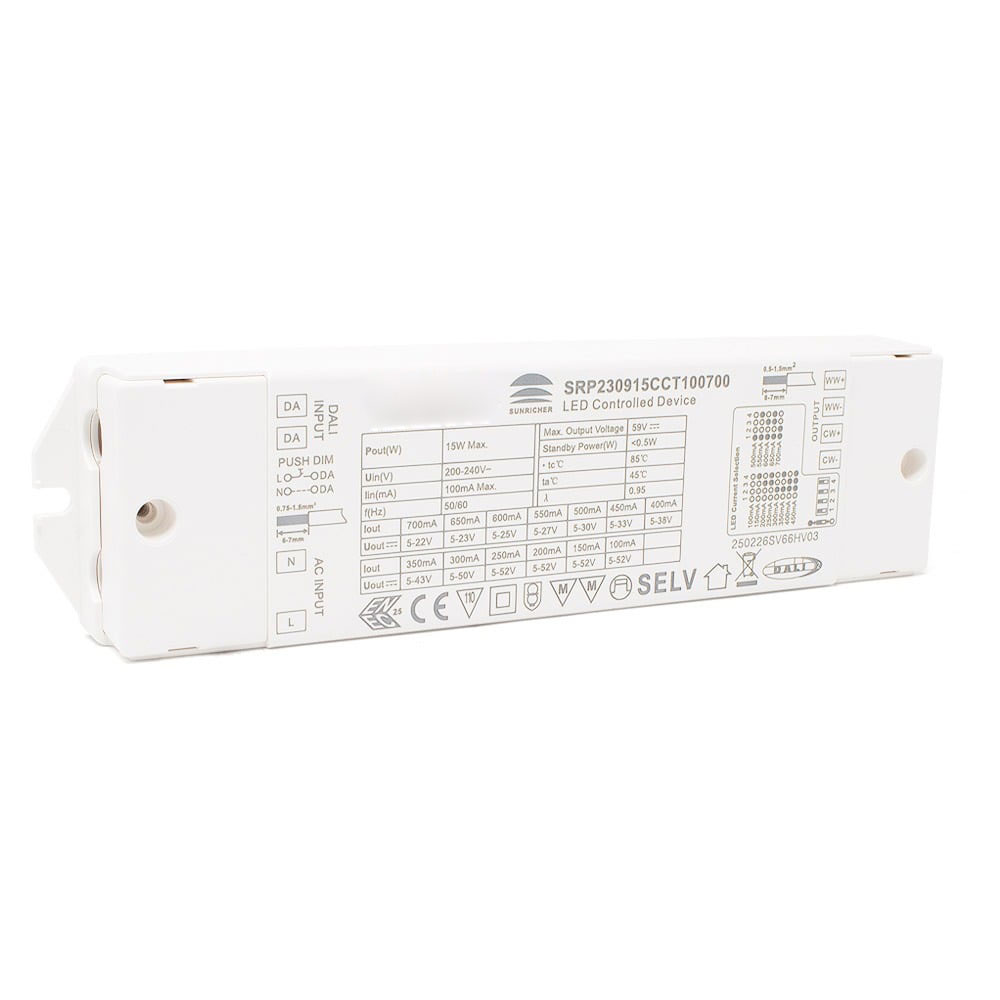

Rated at 15W, this two channel, constant current, DALI DT8 driver can power your tunable white colour temperature LED Strip. This DALI driver can support LED Strips with a current rating between 100mA and 700mA. This value is set as required using the on-board dip switches on the DALI controller.

The DALI address and dimming curve can be set to a Linear or Logarithmic value by the DALI Master lighting system, providing great lighting control over your devices using the DALI protocol.

In addition, the power-on level of the dimmer, which defines the level of the control gear when power is restored is set to MASK as a default. This means that when the power is restored to the DALI device after being powered off, the driver will keep the same light intensity as before.

This DALI LED driver can either be controlled by a DALI (Digital Addressable Lighting Interface) DT8 signal by connecting it to the DALI BUS. Alternatively you can connect a PUSH Dimming switch to the DALI BUS terminals to allow dimming from an external PUSH dimmer momentary switch.

The driver also features Short Circuit and over temperature faults which will auto recover after the fault has been removed.

Specifications
Compatible with DALI DT8 protocols
For colour temperature adjustable LED Strip
2 Channel constant current output
200V to 240V AC 50/60Hz
Adjustable output current 100mA to 700mA
Short circuit & over temperature protection
Smooth flicker free dimming down to 0.1%
Five-year warranty
