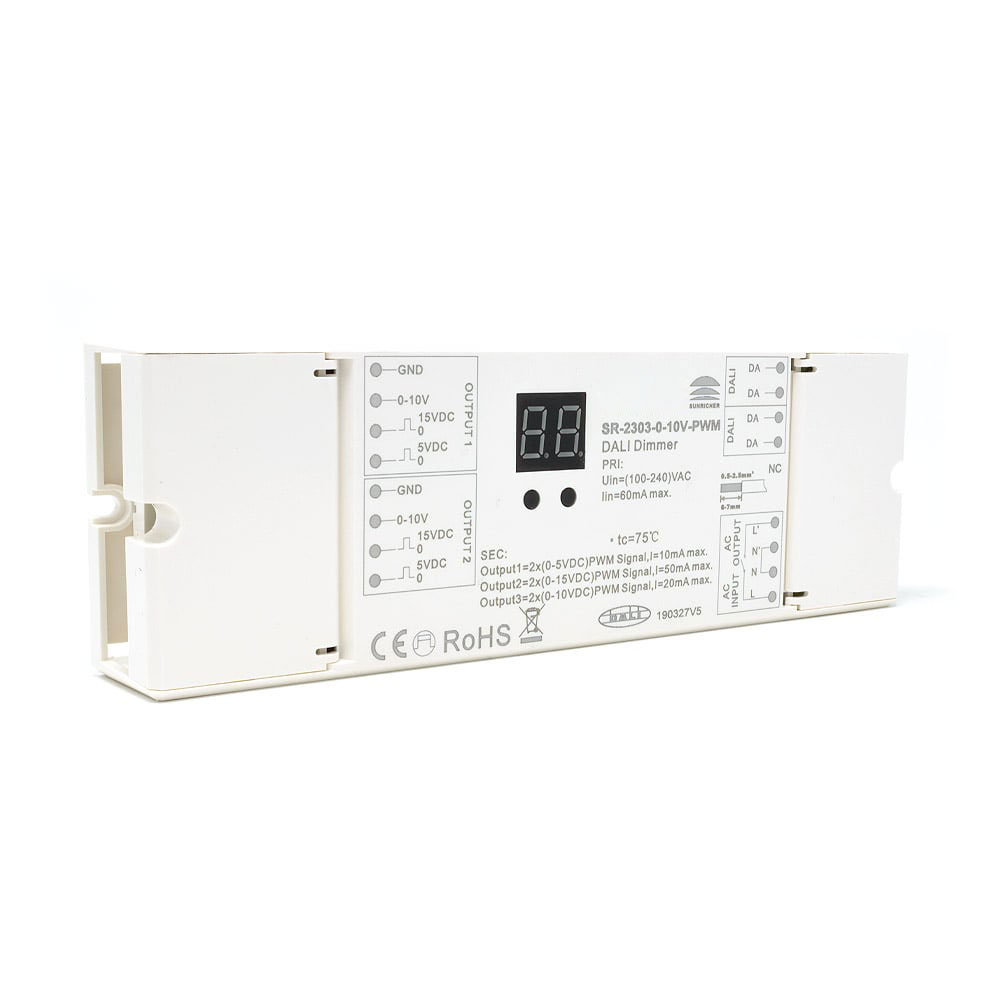

This high quality DALI to 0-10V / PWM converter is from the Sunricher range. It is designed to integrate a 0-10v interface into a DALI controlled system.

The PMW converter is the perfect installation for domestic and commercial markets. It can be used in a range of spaces such as hotels, offices and retail outlets. The digital interface enables the DALI address to be easily entered into the unit making control over your lighting easy.

The LED light receiver is perfect for dimming and switching on or off single colour LED lighting. It can be used for a range of products such as single colour LED Tape / LED strip lights or Neon flex.

The LED receiver receives the DALI signal via DALI input connectors. The output from the PWM controller is 2 channels of 0-10v signals. This can then be connected to an existing 0-10v dimmer driver.

The receiver unit features DALI output connection to link multiple units together. One DALI address will control both 0-10v output channels together.

The receiver requires an input voltage of 100v - 140v AC with the same output.

This is a perfect solution to extending your DALI network where 0-10v LED control is required.

Specifications
DALI to 0-10v PDM Converter
Constant voltage PWM controller
Converts a DALI signal to 0-10v PWM
Controls 0-10v dimmable drivers
100v - 240v input / output connections
DALI input & output connections
2x0-10v, 2x0-15v & 2x0-5v PWM outputs
Easy setting of DALI address
