This DALI device is available from our extensive range of DALI lighting control systems from our Sunricher control device products. DALI (stands for digital addressable lighting interface) is an LED lighting management system with many control options for your lighting systems.

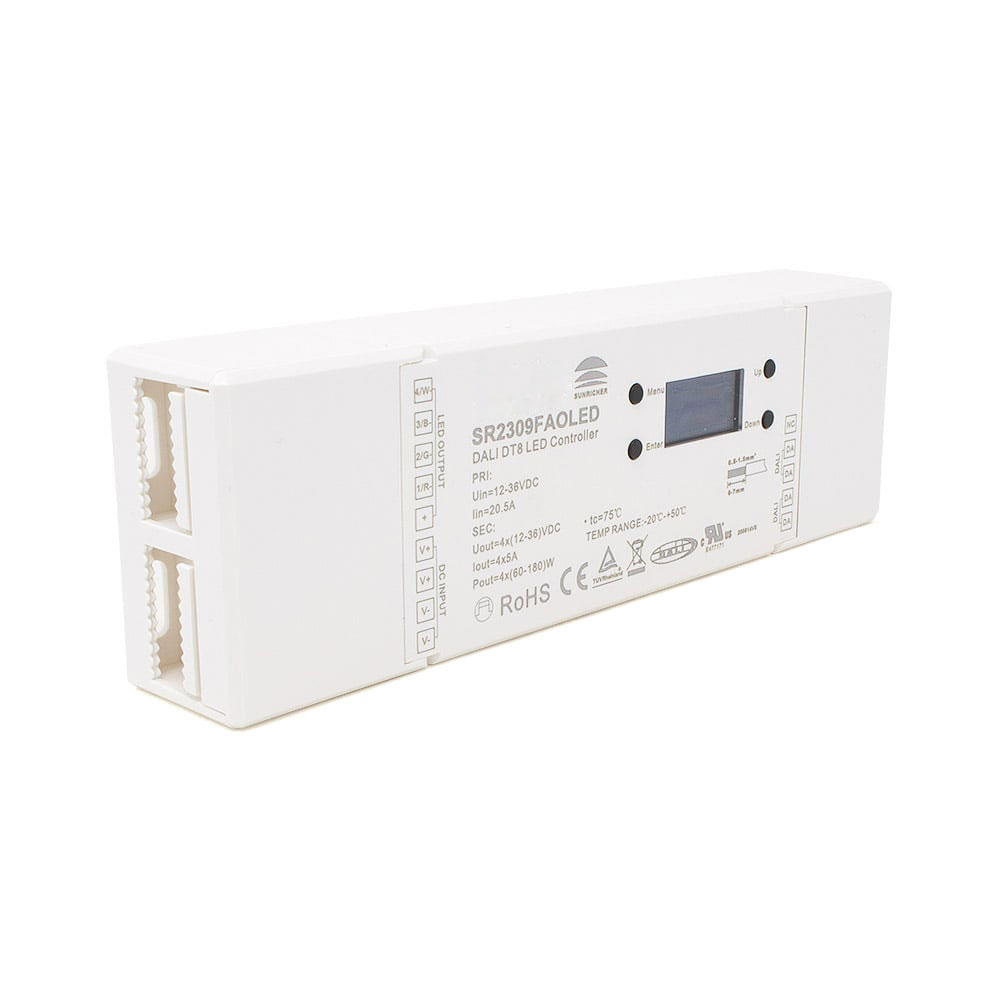

The SR2303FAOLED from Sunricher is the world's first DALI certified DT8 DALI dimmer with a built-in DALI master function. The dimmer also features a high-spec OLED display for clear manual configuration.

This LED dimmer is designed with 4 PWM outputs which are controlled from a single DALI address.

All-in-one DALI DT8 colour types: TC, RGBWA, XY + TC, and RGB + TC can be set on this device. The dimmer enables addresses 00-63 and groups 0-15 to be set.

The dimmer also enables pre-defined 16 x DALI scenes to be set and enables them to be addressed and grouped into 4 x individual PWM outputs.

The PWM output frequency can be adjusted from 250Hz - 30KHz. This ensures ultra-smooth colour control and flicker-free dimming when video recording. This makes this DALI device ideal for TV Studios.

The output level and DT8 colour can be set manually and the DALI default parameters such as fade time, fade rate, power on level and DALI system failure level are all adjustable.

Browse our entire range of DALI control devices including DALI LED Drivers, application controllers and more. DALI and DALI-2 are DALI open standards. All our DALI LED controllers are DALI 2 lighting control standards, which is the latest version of the DALI open protocol.

Specifications
RGBW DALI DT8 Dimmer
Constant voltage PWM controller
Compatible with DALI DT8 protocols
Adjustable PWM frequency
Enables dimming & colour adjustment
With built in DALI master function
For 12v, 24v & 36v RGBW LED products
Digital DALI address indicator
