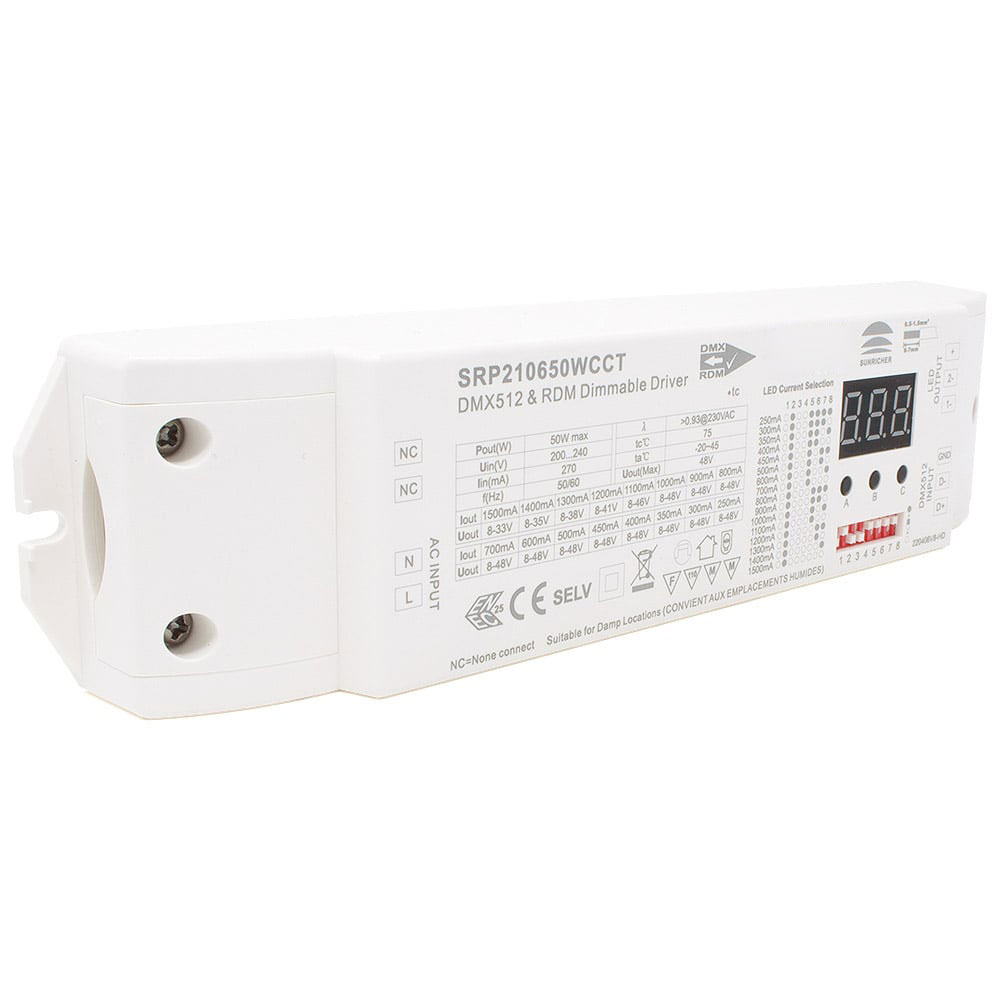

The SRP210650WCCT constant current DMX decoder is a professional grade DMX512 decoder with RDM allowing bi-directional communication between the decoder and an RDM enabled DMX Desk.

The current settings have to be set using the dip switches on the decoder. These can be configured for constant current products between 250mA and 1500mA.

The maximum load on the DMX driver is 50W. The mains input voltage is from 200V - 240V AC at 50/60Hz and the driver has a high power factor value of >0.93 and a low inrush current of just 2A at 230V AC.

This product is suitable for controlling Single Colour or Dual colour (CCT) colour temperature adjustable constant current products up to 50W.

The various parameters of the driver can be set manually using the menu buttons and the digital interface are:

DMX address
Change the DMX memory channel quantity (Single channel mode for single colour LEDs or dual-channel DMX for tunable white LEDs)
Adjust the PWM frequency from 500Hz to 35KHz
Set the Dimming Curve Gamma value to various Linear or Logarithmic values.
The driver has Short circuit, Over Voltage and Over Temperature protection built in and it will automatically recover after the fault is removed.

Please contact our technical sales team by phone, email or through live chat on our website.

Specifications
Dimmable DMX LED driver
RDM enabled
Max. output power 50W
2 Channel 250-1500mA constant current output
Adjustable PWM frequency 500Hz-35KHz
Adjustable dimming curve Gamma Value
High power factor and efficiency
Easy setting using the digital interface
5 years warranty
