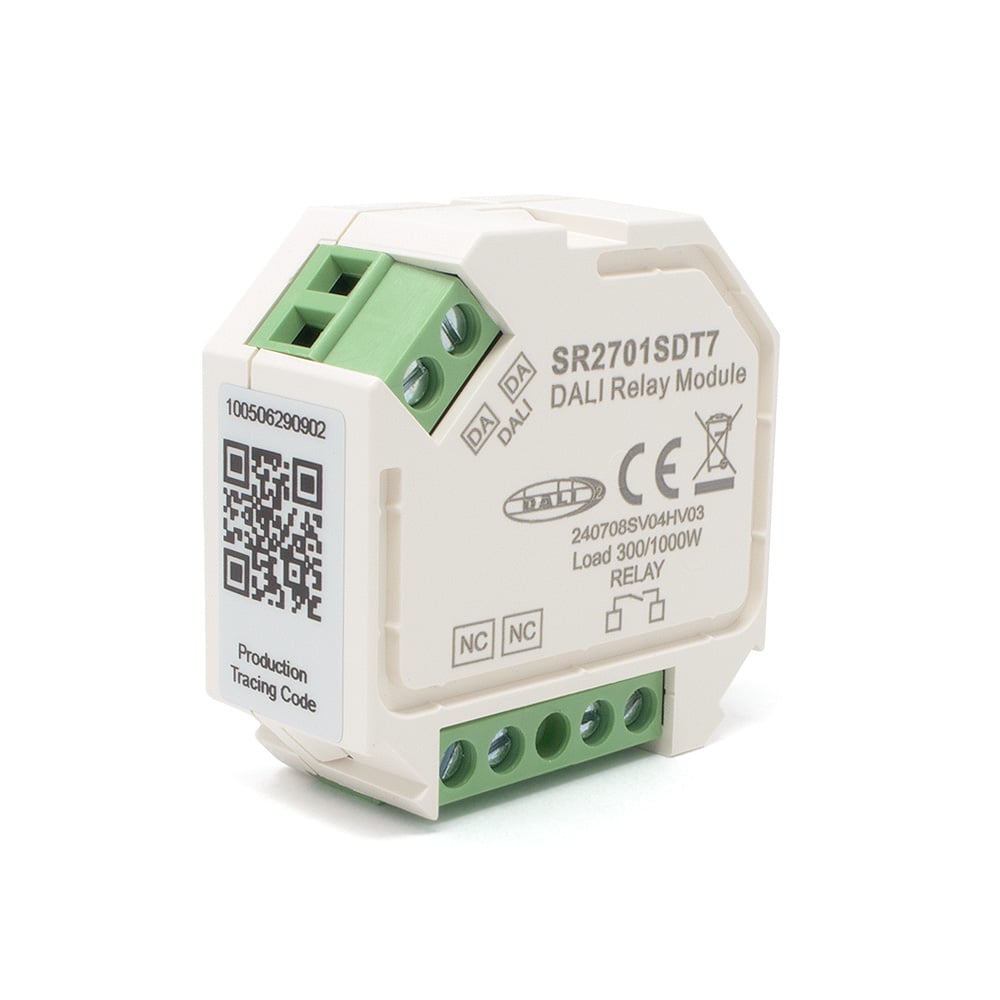

The compact size of this DALI 2 Relay Switch Module allows the unit to be placed into a standard wall box with a depth of >20.3mm.

The unit will switch Resistive loads such as filament lamps or Ferro magnetic transformers up to 1000W @ 230V AC. This DALI Relay Switch will also switch Capacitive loads such as compact fluorescent lamps (with electronic ballast) or LED Drivers up to 300W @ 230V AC.

The DALI Relay Module is compatible with DALI and DALI-2 protocols and supports DT7 and DT8 devices, making it a perfect addition to any lighting system using the latest versions of DALI lighting control devices.

Specifications
DALI 2 complient
100V - 240V AC power input
Switching Voltage 100V - 240V AC
Compliant to IEC 62386-208
Compact design
Compliant with DALI device type 7
Five year warranty
