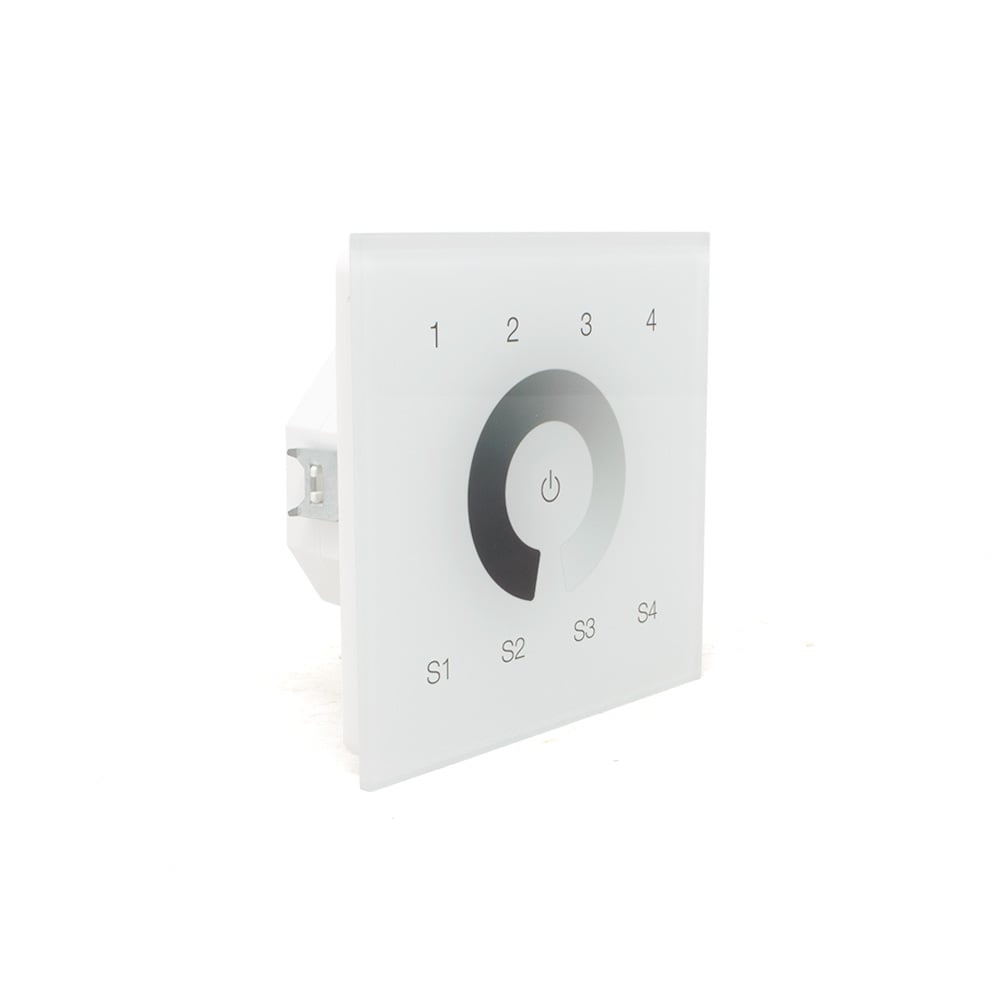

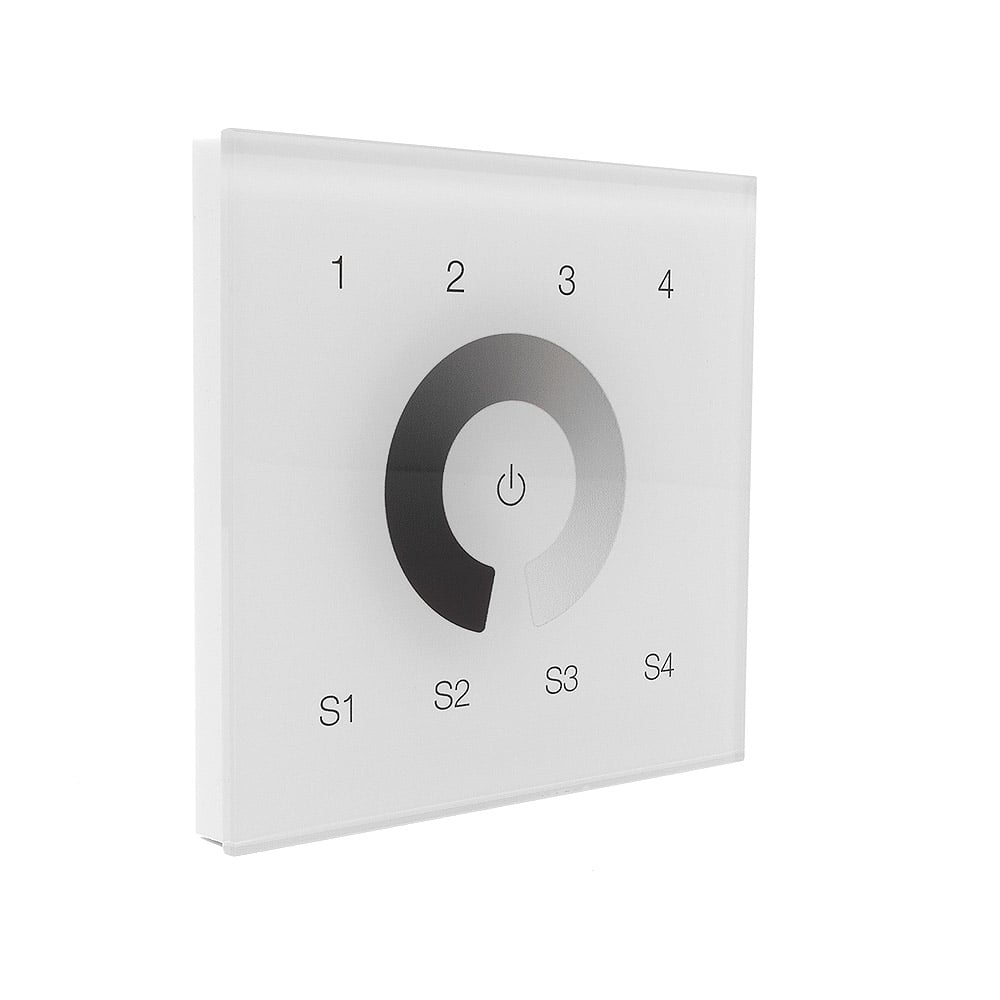

This DALI DT6 single colour, four address Wall panel from our professional range of Sunricher control systems features a white glass finish and touch-sensitive controls. It is perfect for controlling single-colour LED lighting products over four zones.

The wall panel complies with DALI standard protocols IEC 62386-209:2011 and it supports DALI DT6 protocols so it will integrate with your existing DALI DT6 system.

Using the touch-controls, the wall panel features:
Easy power (On/Off)
4 x zone control
4 x programmable scenes
Smooth dimming
Two rotary switches on the back of the wall dimmer switch enable the DALI address to be set.

The wall panel needs to be connected and powered by an external DALI BUS.

For more information on this and our other professional control products, please contact our techincal sales team by phone, email or via live chat on our website.

Specifications
DALI DT6 single colour wall panel
Can control 4 x DALI addresses /li>
4 x programmable scenes
Controls all DALI devices on the circuit
12v or 24v DC input
Rear rotary switch for assigning groups
Works with all available DALI products
DALI signal input & output terminals
