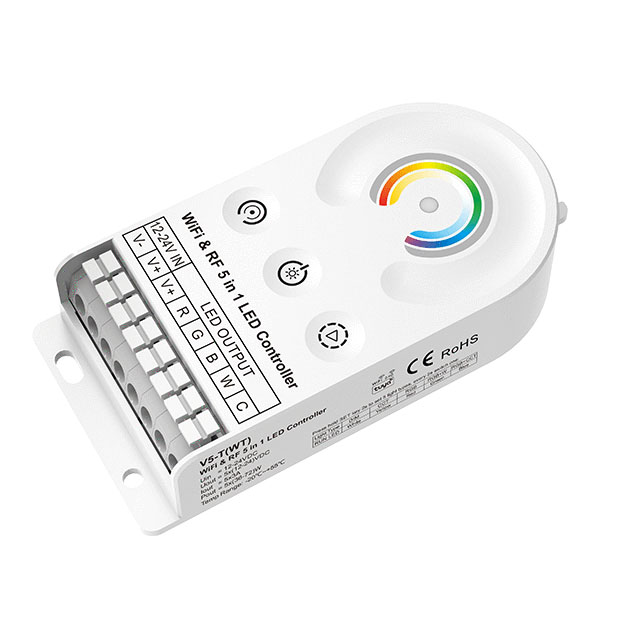

5CH*3A 12-24VDC WiFi & RF CV Controller V5-T(WT) (Tuya App)
WiFi & RF 5 CH LED Controller
â—� 5-in-1function, suitable for single color, color temperature, RGB, RGBW, RGB+CCT LED strips.
â—� Tuya Smart APP cloud control, support on/off, RGB color, color temperature and brightness adjust,
delay turn on/off light, timer run, scene edit and music play function.
â—� Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie
and Xiaodu smart speakers.
â—� Support to turn on/off the light, adjust brightness, color temperature, RGB color,
dynamic mode and speed by key.
â—� Support touch color wheel to adjust brightness, color temperature or RGB color.
â—� Match with RF 2.4G single or multi-zone 1-5 color remote control optional.
â—� 4096 level 0-100% smooth dimming, no icker.
â—� When used as an RGB/RGB+W/RGB+CCT LED controller, built in10 RGB dynamic mode,
including jump or gradual change style.
â—� Each V5-T(WT) controller can also work as WiFi-RF converter,
then use Tuya APP to control one or more RF controller or driver synchronously.
_01.png)

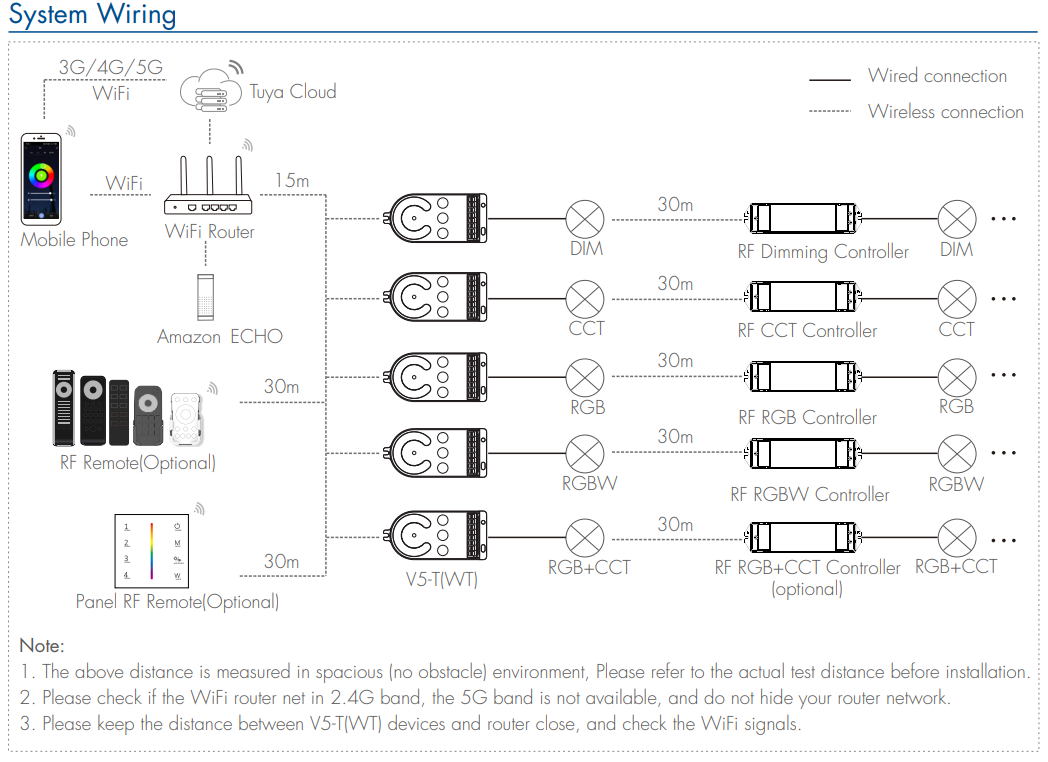

System Wiring
_02.png)
_03.png)
