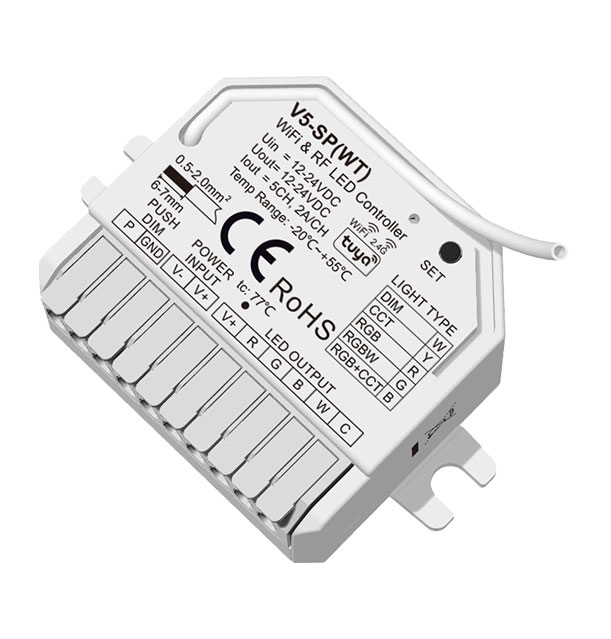

5CH*2A 12-24VDC WiFi & RF CV Controller V5-SP(WT) (Tuya App)
WiFi & RF 5 CH Constant Voltage LED Controller
â—� 5-in-1 function, for single color or color temperature, RGB, RGBW, RGB+CCT LED strips.
â—� Tuya Smart APP cloud control, support on/off, RGB color, color temperature
and brightness adjust, delay turn on/off light, timer run, scene edit and music play function.
â—� Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie
and Xiaodu smart speakers.
â—� Match with RF 2.4G remote controller optional.
â—� User need set light type before Tuya smart APP network connection
and match RF remote of the same light type.
â—� Each V5-SP(WT) controller can also work as WiFi-RF converter,
then use Tuya smart APP to control one or more RF LED controller
or RF LED dimming driver synchronously.
â—� Connect with external push switch to achieve on/off, and brightness,
color temperature, RGB color adjustment function.
â—� Built-in 10 dynamic modes when controlling RGB/RGBW/RGB+CCT light,
including jump and fade.
â—� Light on/off fade time 3s selectable.
â—� Reverse/Over-heat protection.
_01.png)

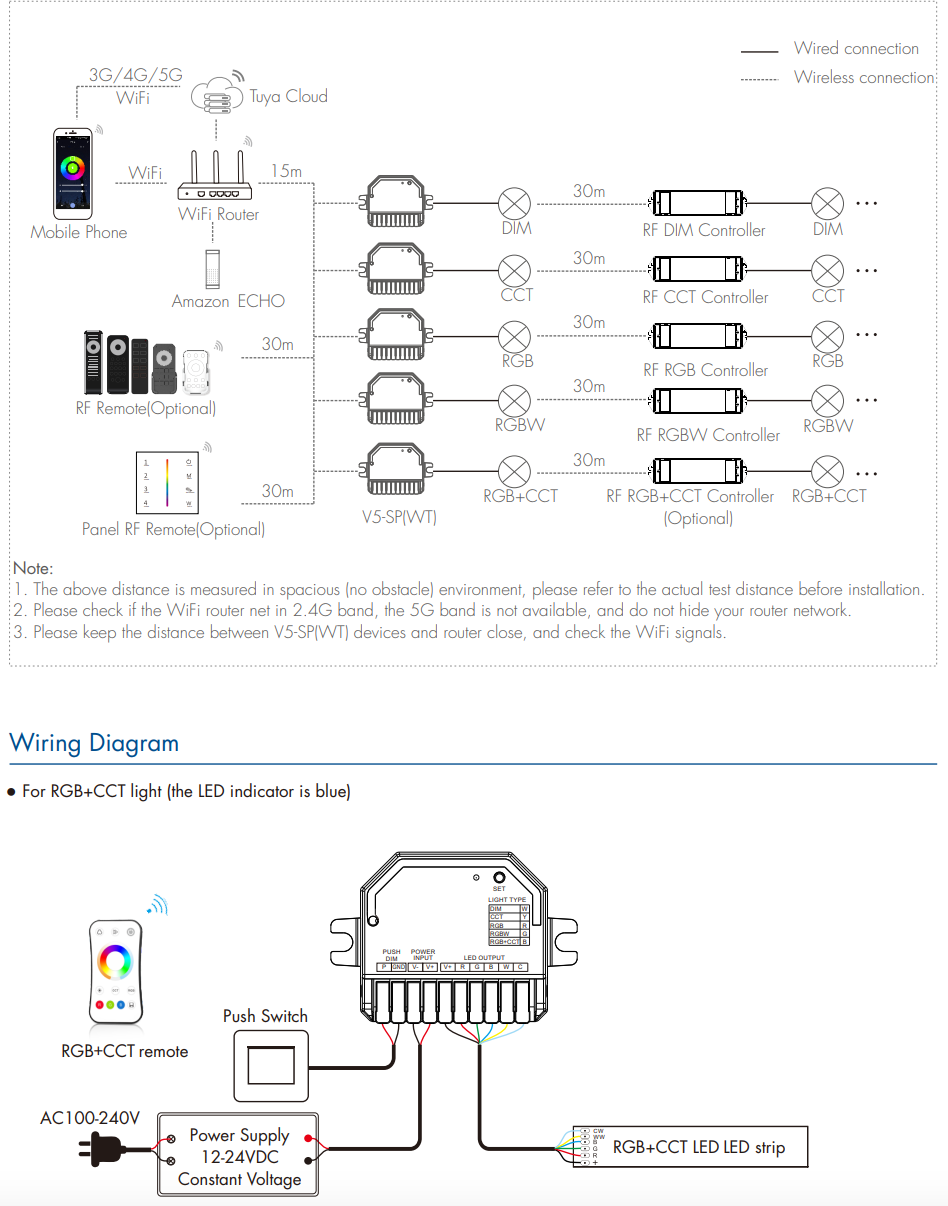

System Wiring
_02.png)
