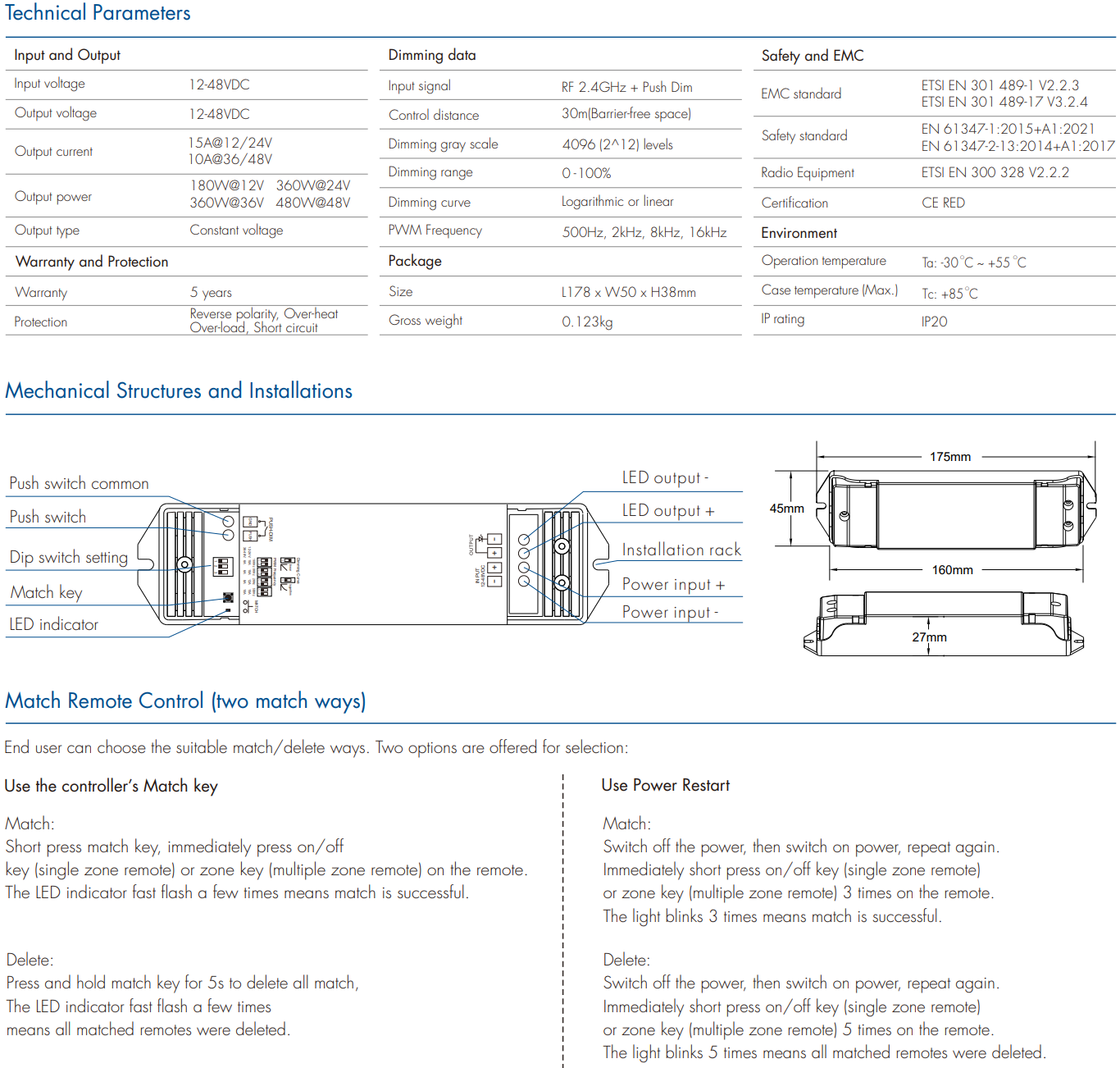

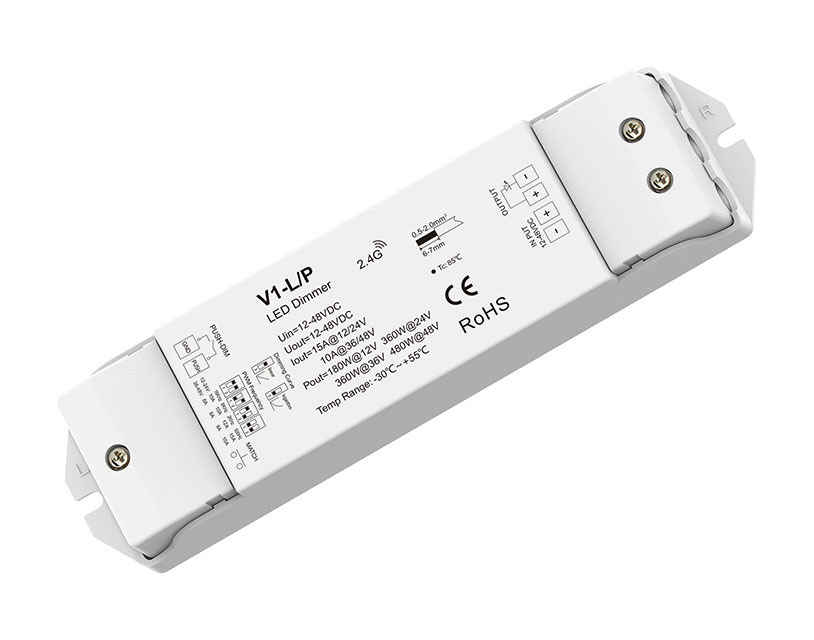

1CH*15A 12-48VDC CV Controller, Push-Dim V1-L/P
● 4096 levels 0-100% dimming smoothly without any ash.
● Match with RF 2.4G single zone or multiple zone dimming remote control.
● One RF controller accept up to 10 remote control.
● Auto-transmitting function: Controller automatically transmit signal to
another controller with 30m control distance.
● Synchronize on multiple number of controllers.

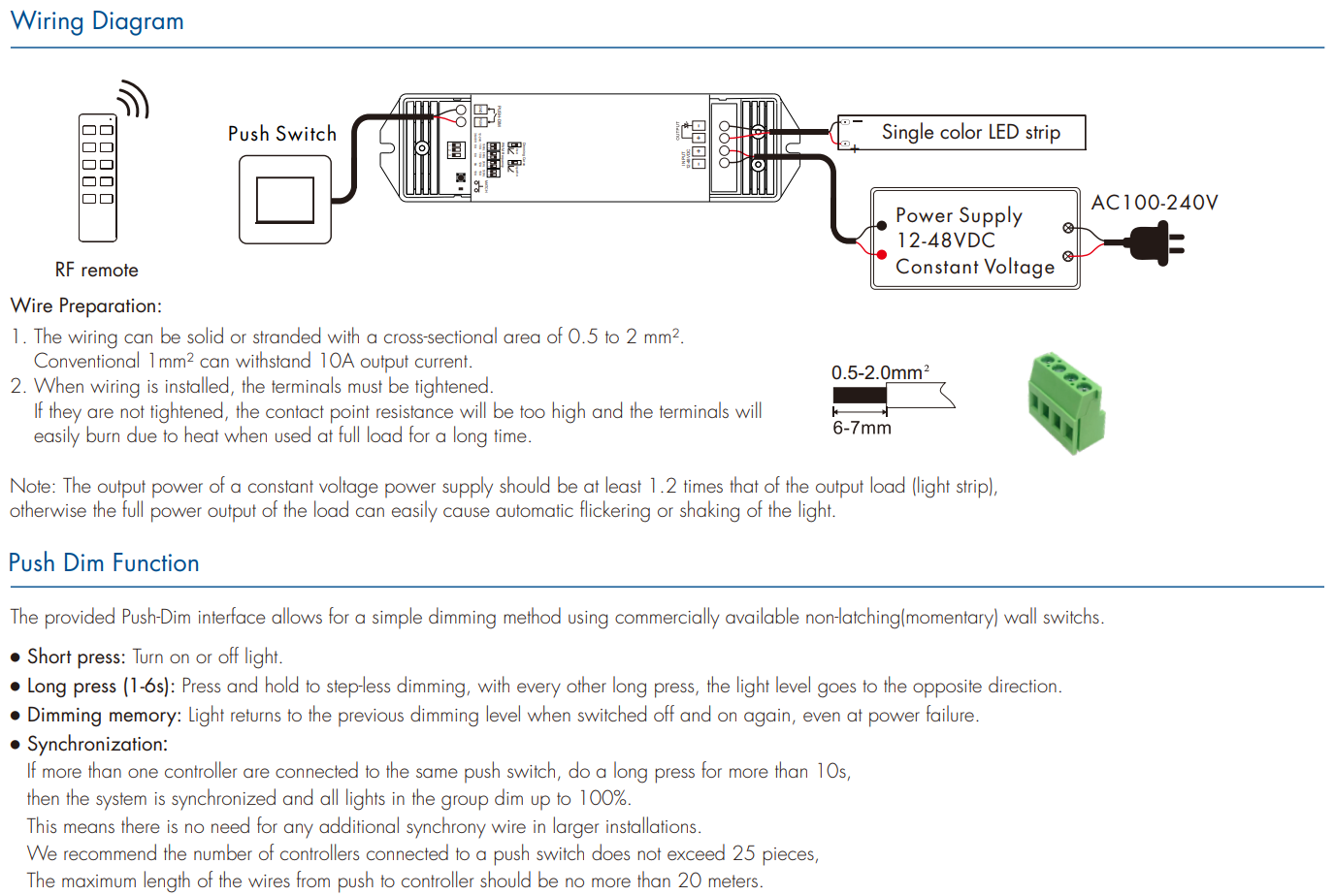

● Connect with external push switch to achieve on/off and 0-100% dimming function.
● Logarithmic or linear dimming curve selectable.
● PWM frequency 500Hz, 2kHz, 8kHz or 16kHz selectable.
● Over-heat / Over-load / Short circuit protection, recover automatically.
● Light on/off fade time 3s selectable.
