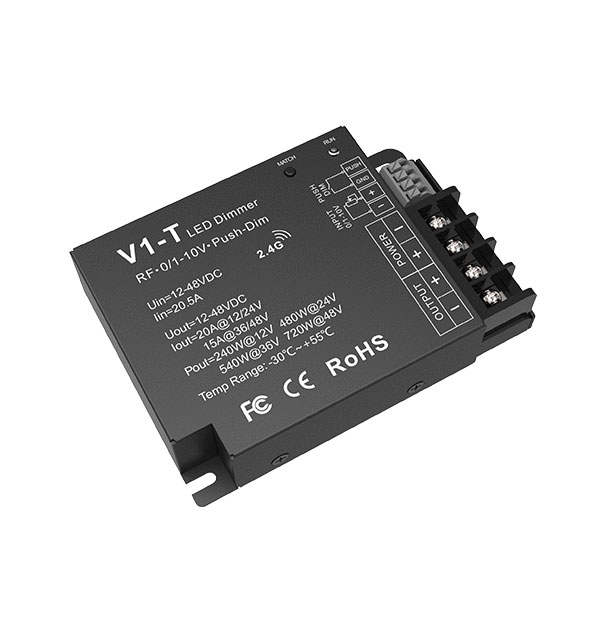

1CH*20A 12-48VDC CV RF,0 /1-10V,Push-Dim(3-in-1) Controller V1-T
â—� RF remote, 0/1-10V, Push Dim (3-in-1) dimming.
â—� 4096 levels 0-100% dimming smoothly without any ash.
â—� Match with RF 2.4G single zone or multiple zone dimming remote control.
â—� One RF controller accept up to 10 remote control.
â—� Auto-transmitting function:
Controller automatically transmit signal
to another controller with 15m control distance.
â—� Synchronize on multiple number of controllers.
â—� Connect with external push switch to achieve on/off and 0-100% dimming function.
â—� Light on/off fade time 3s selectable.
â—� PWM frequency 500Hz, 2KHz, 8KHz or 16KHz selectable.
â—� Over-heat / Over-load / Short circuit protection, recover automatically.
