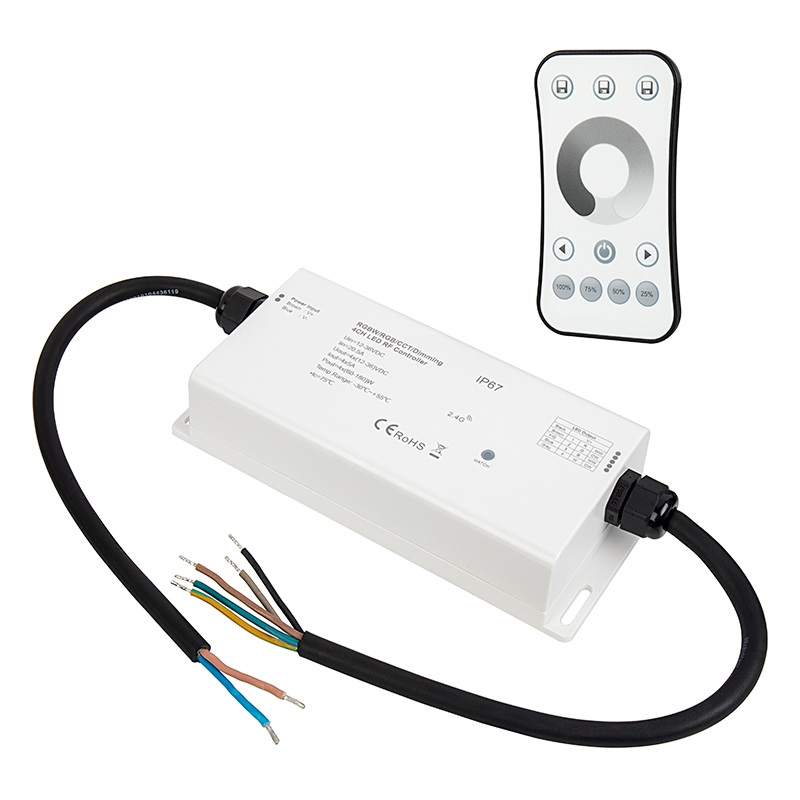

DS series Receiver is a constant voltage controller that allows up to 4 channels. Fully enclosed plastic housing is rated IP67 for wet conditions and outdoor application. Easily pairs with remote to dim single color LED lights between 0-100%.

 Remotes must be paired as part of the installation process and do not come pre-paired. Please see manual for details.

Product Details:
Input Voltage Range: 12–36 VDC
Max Input Current: 20.5 A
Max. Output Current: 5 A per channel (20 A total)
Output power 4 x 180-watts
PWM Frequency 500Hz
Transmission Range: 98ft
Repeats signal to another receiver within 98ft
4096 levels for smooth 0-100% dimming
Protects against overheat, overload, and short circuit

Specifications
Amps Per Channel: 5 Amps/CH
Batteries: CR2032 x1 (included)
Certifications/Compliance: CE
Channels: 4 Channels
Control Type: Handheld (RF) Remote
Electrical Connection: Pigtail
Environmental Rating: Waterproof IP67
Input Voltage Range: 12-36 VDC
Max Input Current: 20.5 A
Max Output Current :  20 A (5 A x 4 channels*)
Max Range: Up to 30m (98')
Operating Temperature: -30~+55 °C (-22~+131 °F)
Output Power: 4 x (60-180)W
Output Voltage Range: 12-36 VDC
Power Consumption: 4 Watts
Product Weight: 0lb 12oz (0.34kg)
Signal Type: 2.4 GHz RF
Package Weight: 11.9oz (0.34kg)
Package Dimensions: 10" (25cm) x 4.75" (12cm) x 2.5" (6cm)
All specifications are subject to change without notice.
