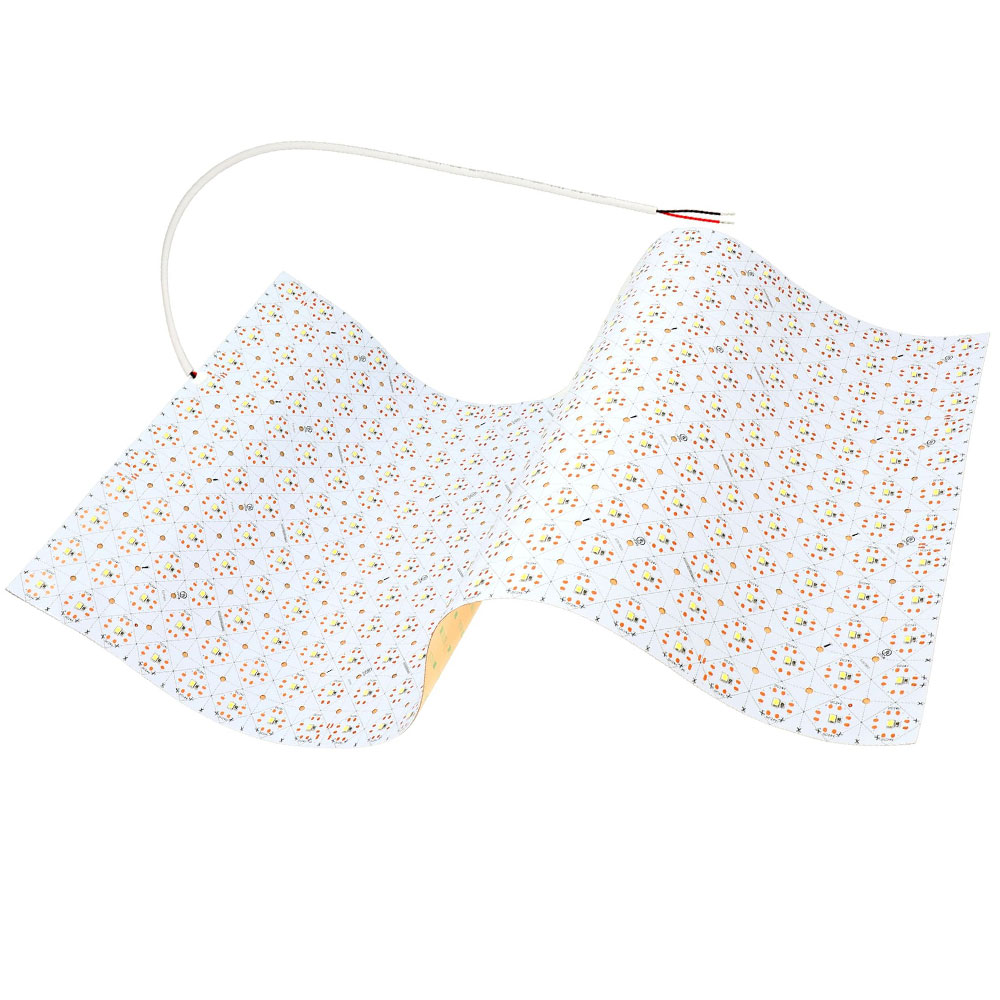

This high-density White LED Light Sheet is designed to provide a high output while maintaining the light sheet's flexibility. The high density of LED chips ensures even light distribution with a high-quality output. The sheet has 24 columns x 12 rows that can be segmented by cutting along the horizontal, vertical, or diagonal lines. With a 90+ high CRI, the sheet produces eye-catching displays with high-quality color rendering and saturation. Install this sheet by peeling off the 3M™ adhesive backing or fastening it with screws at the indicated spots. For enclosed installations, the sheet requires a minimum clearance of 30mm for proper heat management.

Please refer to the specification sheet for cutting recommendations. Using only the pre-marked lines when cutting the sheet is essential to maintaining electrical contact.

Product Details:
Segment size: 0.79 in (20 mm) . x 0.79 in. (20 mm)
Max run with Class 2 wiring: 3 full sheets
Enclosed fixture rated 30 mm
PWM dimmable
24 VDC
UL Listed
5-year warranty

Specifications
Ambient Operating Temperature: -20 to 60 °C (-4 to 140 °F)
Certifications/Compliance: CE, UL Listed
Color Temperature: 6500K, 5000K, 4000K, 3000K
CRI: 80+
Current Draw: 1.3 A
Dimensions: 18.9in x 9.5in
Dimmable: Yes
Dimmer Type: PWM
Efficacy: 102 lm/W
Enclosed Fixture Rated: Yes
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
Finish: White
Input Connection Type: Pigtail
IP Rating: IP20
LED Beam Angle: 120°
LED Chip Type: 2835 SMD
LEDs per Segment: 1
LED Lifetime: 50000 Hours
Max Run (Class 2): 3 Sheets
Operating Voltage: 24 VDC
Product Dimensions: 18.90″ x 9.50″ x 0.05″
Segment Size: 0.79 in. x 0.79 in. (20 mm x 20 mm)
Wattage: 30 Watts
Wire Length: 19 in.
