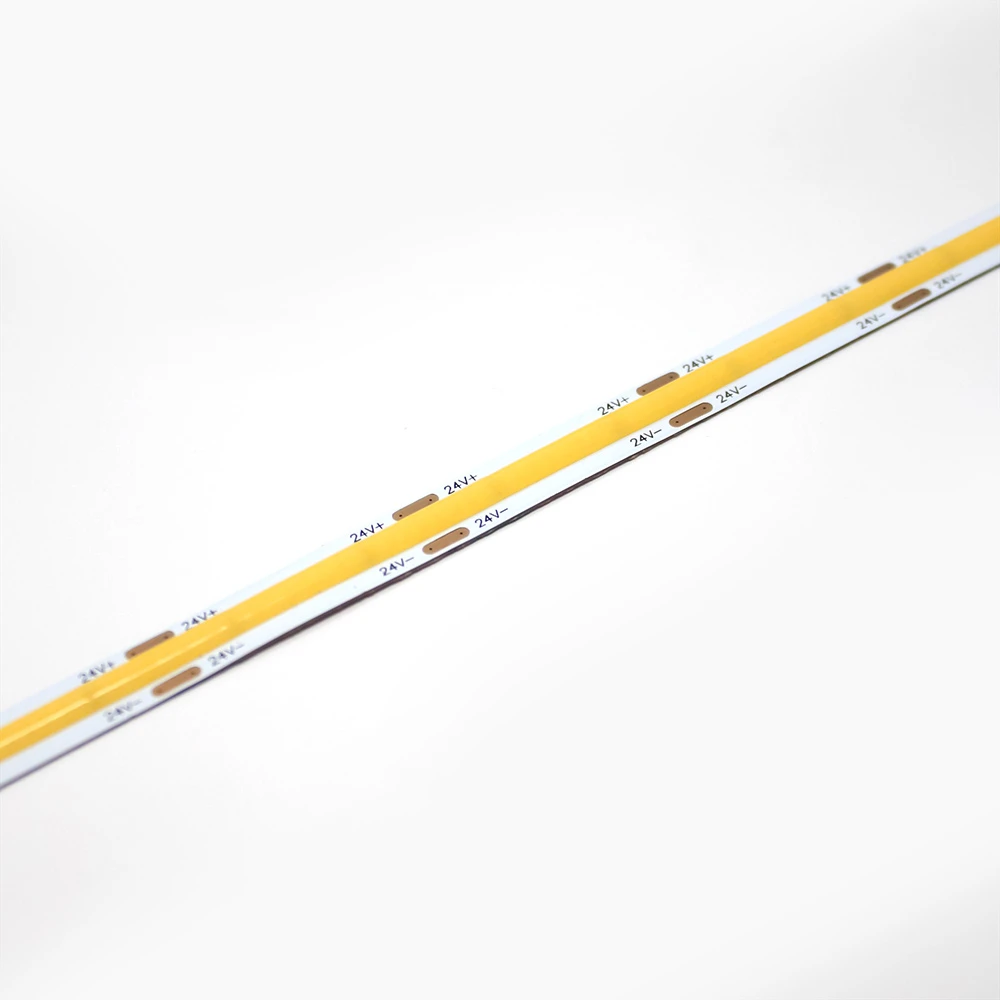

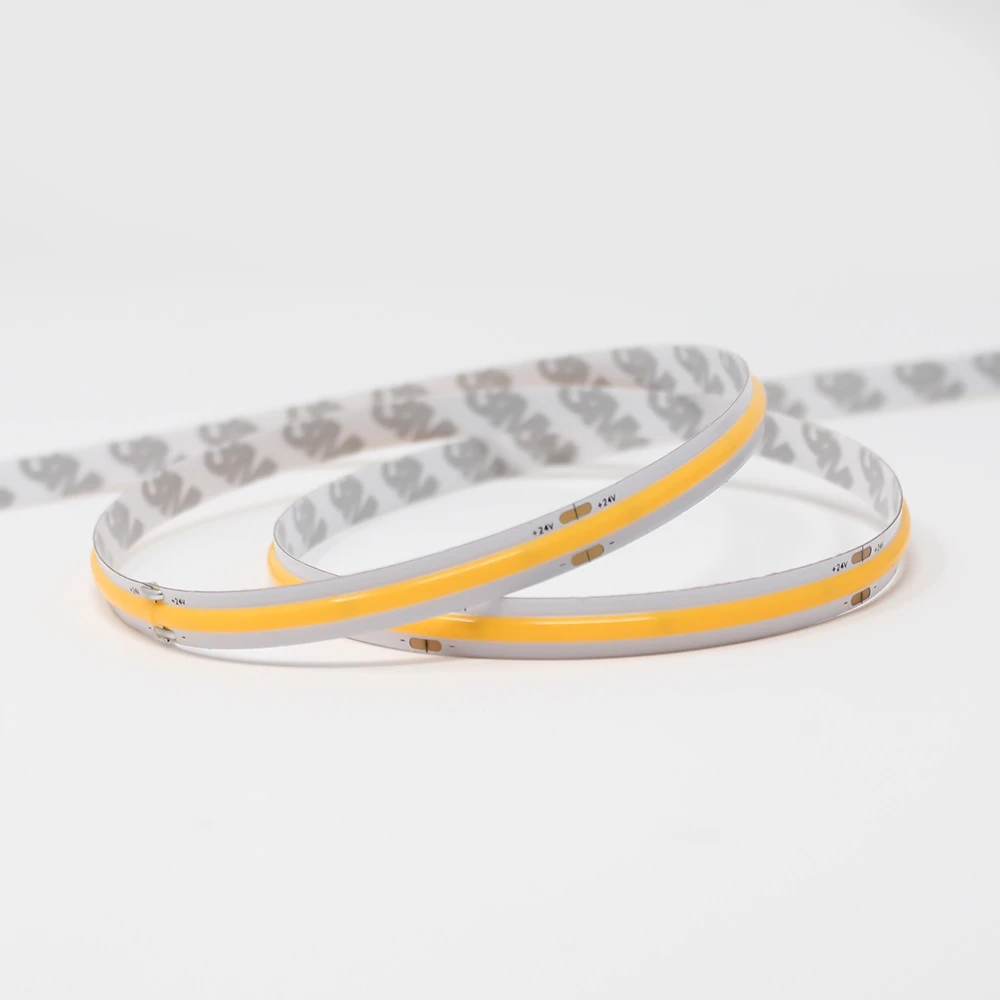

Leave spotting in the dark with the new professional standard in 100% spotless chip on board LED tape. Perfect for a highly desired seamless, spotless and continuous linear lighting solution. Designed for installation into standard LED channels with an internal width of 8mm or more. Comes with a 500mm 2 core cable with tinned ends fitted at each end of the tape and cut points every 29.41mm.

Perfect for creating eyecatching, professional standard linear lighting displays, outputting 93 Lumens per watt and 928 lumens per metre on average. Compatible with DMX, standard and professional Single Colour LED controllers.

Complete with a piece of mind 3 Year Guarantee for indoor use

Capable of a maximum continuous run of upto 5 metres at 24 volts based on a 10% voltage drop after 5 metres. Complete with a 3m self adhesive backing for easy mounting into LED Channel.

Dimming Compatibility

Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
All products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.

Specifications
Specifications
Ambient Operating Temperature: -20 to 60 °C (-4 to 140 °F)
Certifications/Compliance: CE, UL Listed
CRI: 90+
Colour: Cool White (6500K)
Current Draw: 1.7 A
Current Draw per Foot: 104 mA
Dimmable: Yes
Dimmer Type: PWM
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
Finish: White
Input Connection Type: Pigtail
IP Rating: IP20
LED Beam Angle: 140°
LED Density: 146 LEDs/ft
LED Chip Type: COB (chip-on-board)
LEDs per Segment: 24
Length: 16.4 ft (5 m)
LED Lifetime: 50000 Hours
Max Run (Class 2): 36.1 ft (11 m)
Minimum Cut Length: 50mm (1.97in)
Operating Voltage: 24 VDC
Product Dimensions: 196.85″ x 0.31″ x 0.08″
Strip Width: 8mm (0.31in)
Wattage: 40 Watts
Wattage per Foot: 2.4 W/ft
Wire Gauge: 22 AWG
Wire Length: 19 in.
