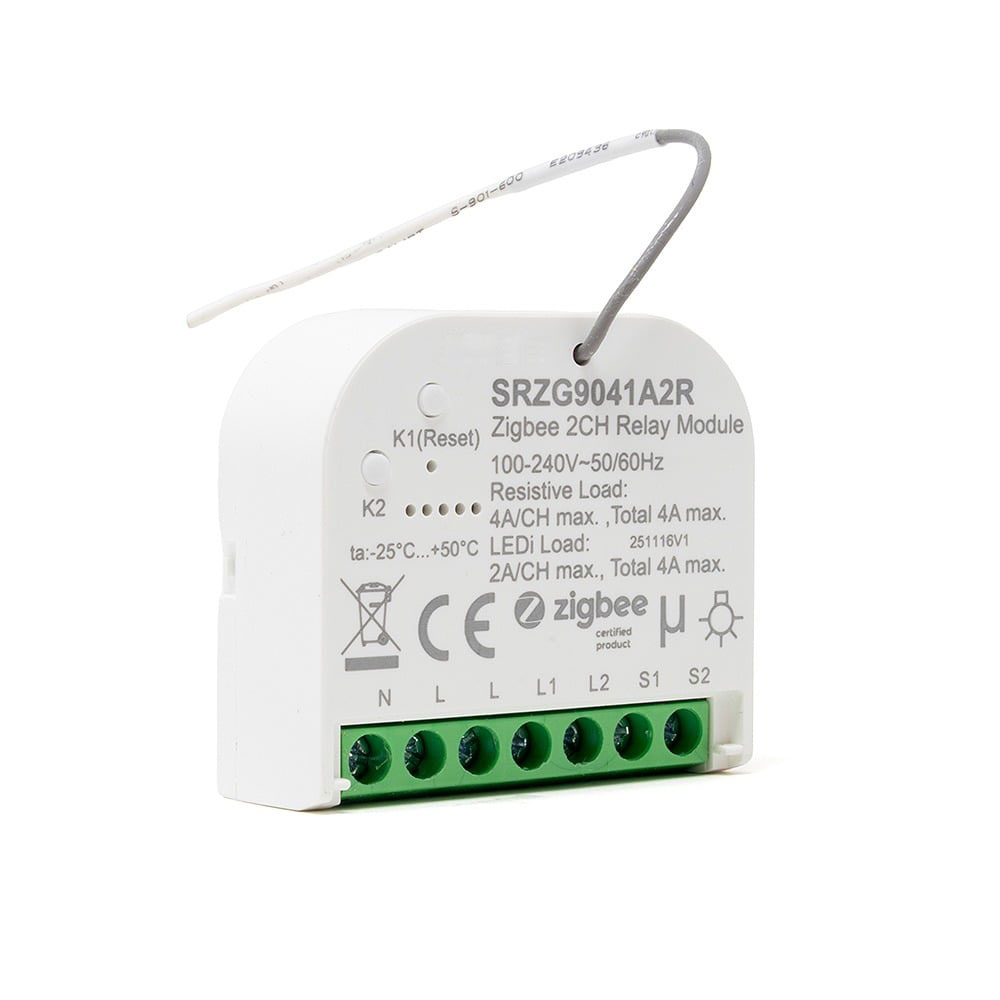

This ZIGBEE 2 x Channel Micro Smart AC switch relay module has advanced microprocessor control and will switch on or off your Inductive or Capacitive loads up to 2A, it will also switch Resistive loads up to 4A with a maximum load over the two channels of 4A. The relay is equipped with an Active power and Energy Metering functionality, it will work with PUSH switches (momentary switches) if required, and the relay module will fit into a standard UK / EU wall box with a depth of 16mm, simply connect to a 100V - 240V mains supply as per the wiring diagram on the data sheet.

This superb quality ZIGBEE Micro 2 x channel smart relay is part of our range of Sunricher lighting control products and can be controlled through a ZIGBEE Gateway from your smart phone application using Apple HomeKit, Amazon Alexa and Google Home for example or by voice control using Apple Siri, Amazon Alexa or Google Assistant.

Note: for control from your smart phone application, a ZIGBEE Gateway is required (available separately).

For more information on this and our other exciting range of lighting control products, please contact our technical sales staff by phone, email or through WhatsApp and Live Chat on our website.

Specifications
ZIGBEE 2 x channel Micro Smart Relay
100V - 240V AC input / output
Supports Capacitive & Inductive loads up to 2A
Supports Resistive loads up to 4A
Maximum load over both Channels 4A
Enables 2 x channel switching on / off
Supports Touchlink commissioning
Active power & energy metering function
App control through a ZIGBEE gateway
Separate switching by 2 single wire push switches
16mm deep can be installed into a standard UK / EU wall box
5 Year Warranty
