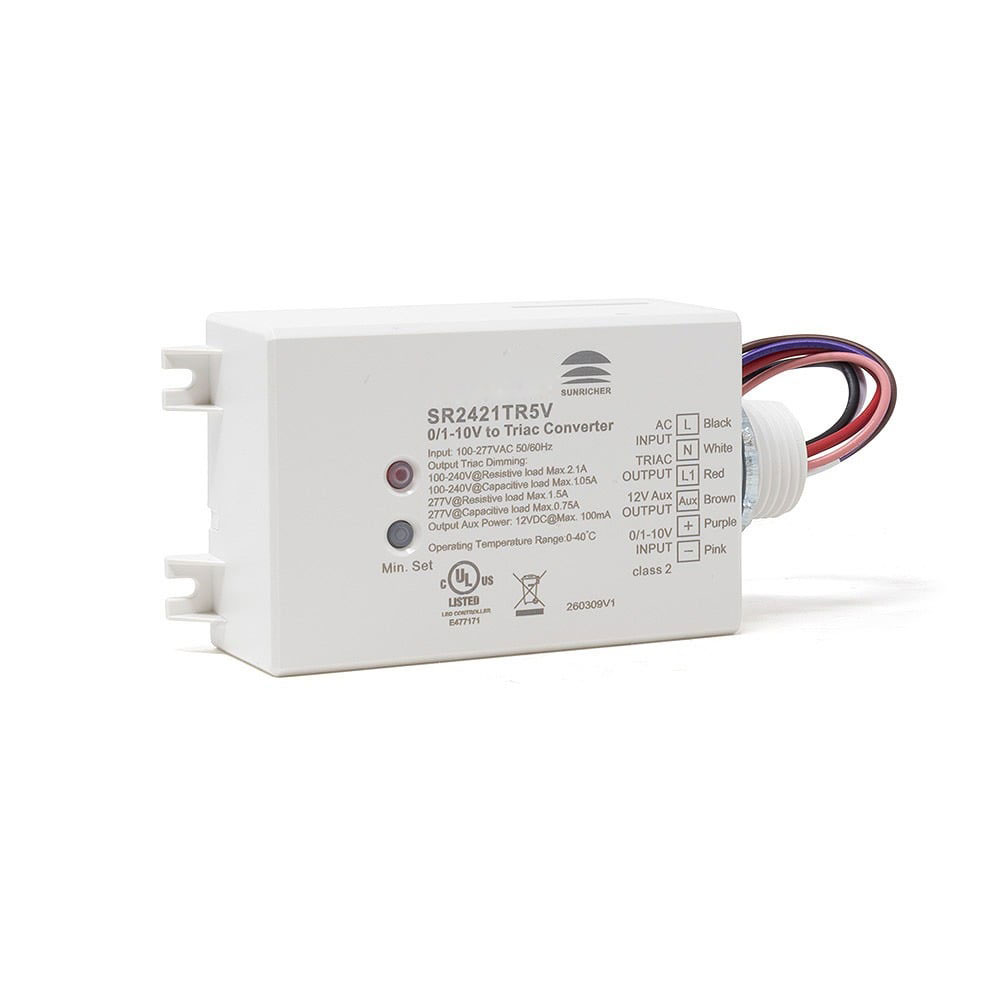

This 0/1-10V to Phase load dimmer converter from our range of Sunricher lighting control products enables you to control the level of your mains powered lighting products or dimmable drivers. The unit will work with Resistive loads up to 2.1A @ 240 V AC or Capacitive loads up to 1.05A at 240V AC. There is an in-built 12V DC supply with a maximum load of up to 700mA to power your sensors if required and there is a minimum brightness level that can be set using the Min Set button on the unit which enables you to set the minimum dimming level before the connected light flickers or switches off. The converter will work off an input voltage between 100V & 277V AC and is designed to work with trailing edge dimmers. There is a 1/2" output gland on the side of the converter that is designed to fit into a standard knockout junction box. The training wires can then be run through into the box and connected as required. For more information on this and our other lighting control products please contact our technical sales team by phone, email or via live chat and WhatsApp on our website.

Specifications
Converts 0/1-10V protocol to Phase Load Dimming
Input voltage 100V - 277V AC
Maximum Load Current 2.1A @ 240V
Supports Trailing Edge Dimming
Integrated 12V Aux Power supply output
Built in 0/1-10V interface
Works with universal 0/1-10V signal
Minimum Dimming level set button
For Incandescent & Low voltage lamps up to 504W
For LED lamps & Dimmable drivers up to 252W
Fits to a standard 1/2" knockout junction box

 SR2421TR5V Datasheet
