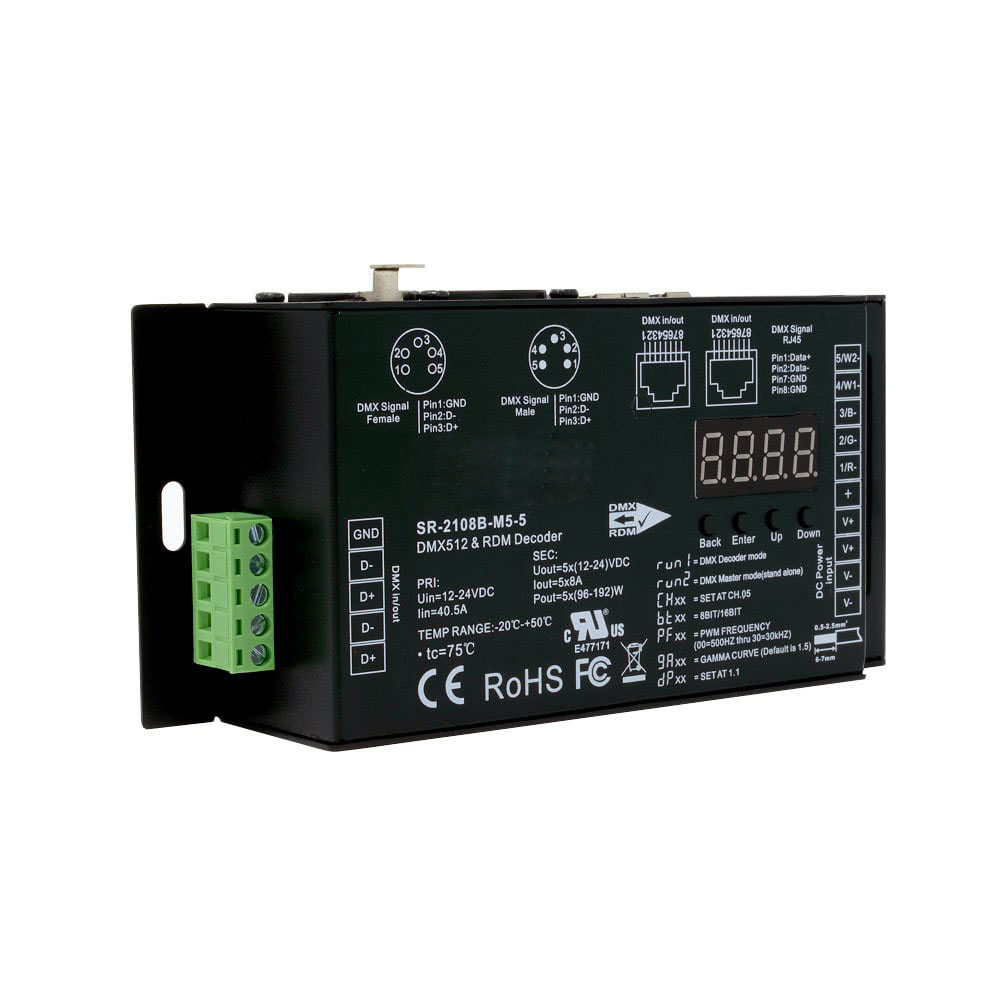

This 5 DMX Channel Decoder with RDM & Master Mode is available from our professional range of Sunricher DMX LED control solutions.

This five-channel DMX512 decoder is a professional product suitable for use in TV Studios and commercial installations. This product is the perfect solution to use where multiple sets of LED lighting need to be connected to a single DMX data source.

The RDM bi-direction communication function enables an RDM-equipped DMX master console to detect and display decoder information.

A variety of features are available from this 5 channel DMX decoder such as:

DMX address setting
Adjustable output channel quantity
PWM output resolution (8 or 16-bit)
Adjustable PWM frequency from 500Hz to 35KHz
Adjustable dimming curve gamma value
DMX decoding mode can also be set via the digital display & menu buttons
Master Mode
Signal input and output ports for this controller including 5-pin XLR, RJ45 and a hard-wired connection are available.

Please note that this 5 channel DMX decoder also has master control features for basic operation without a DMX desk, connected to an appropriate LED driver in order to control your LED lighting.

The 5 channels on this decoder allow the unit to control single colour, colour temperature adjustable (CCT) and also RGB & RGBW LED lighting devices.

For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of Data Repeaters through our website or contact our technical sales team.

Specifications
Five channel professional DMX decoder
RDM function
Adjustable PWM frequency & bit rate
Adjustable dim curve & gamma value
Adjustable 1, 2, 3, 4 or 5 channel modes
5 pin XLR RJ45 & hard wired DMX in/out
Suitable for 4K TV & video production
Master mode
