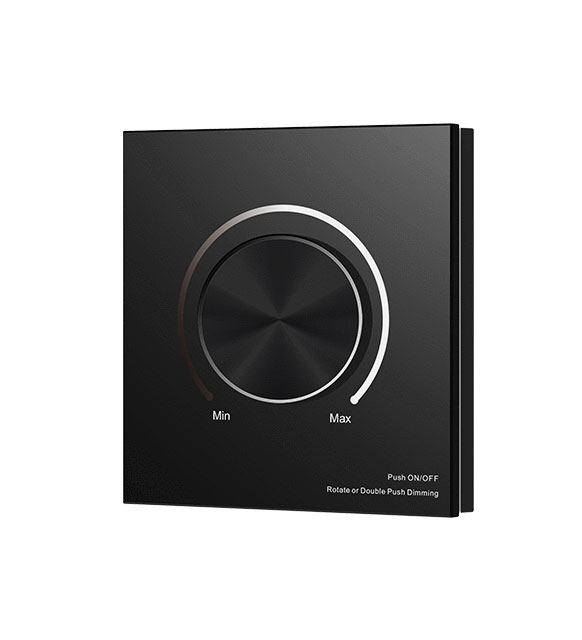

24VDC 1CH*2mA WiFi & RF Rotary Panel DALI Master TD-K(WT)(Tuya App)
● WiFi & RF Rotary knob panel 1-5 color DALI master, compatible with dimming, color temperature, RGB, RGBW
and RGB+CCT lighting controls.
● Tuya smart APP cloud control, support on/off, brightness, color temperature and RGB color adjust,
delay turn on/off light, timer run, scene edit and music play function.
● 1 DALI address, support DT6 dimming, DT8-TC color temperature, DT8-RGB, DT8-RGBW and DT8-RGB+CCT.
● DALI-2 certied, in accordance with DALI standard protocol
IEC 62386- 102, 207,209 and in compliance with DALI products from other international incorporation.
● Powered by 24VDC.
● Match with RF 2.4G remote control optional.
● Rotate the knob to change the brightness, color temperature and RGB color.
● Via encoding switch to set light type and DALI address (supports unicast, group and broadcast).
● Operate with LED indicator light.
● White & Black glass panel available.
_01.png)
_02.png)
_03.png)
