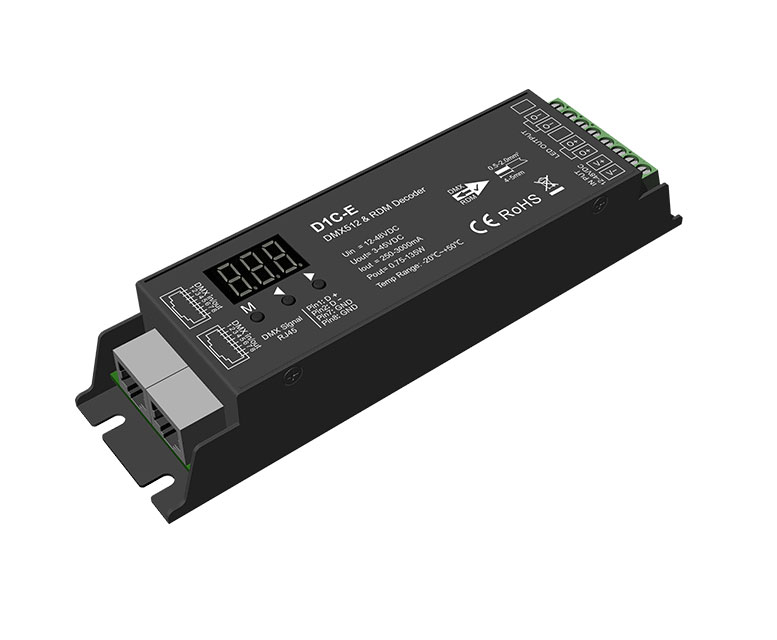

Single Channel Constant Current DMX512 & RDM Decoder D1C-E
â—� DMX signal communication using RJ45 connector, comply with the DMX512 standard protocols.
â—� Digital numeric display, set DMX decode start address by buttons.
â—� RDM function can realize intercommunication between DMX master and decoder. For example, DMX decoder address can be set by DMX master console.
â—� Output current range 250-3000mA selectable.
â—� 16bit (65536 levels) /8bit (256 levels) grey level selectable.
â—� PWM frequency 250/500/1000/2000/4000/8000/16000Hz selectable.
â—� Output dimming curve gamma value 0.1-9.9 selectable.
â—� Stand-alone dynamic mode and dimmer mode selectable, which be controlled by buttons with built-in programs, instead of DMX signal.
