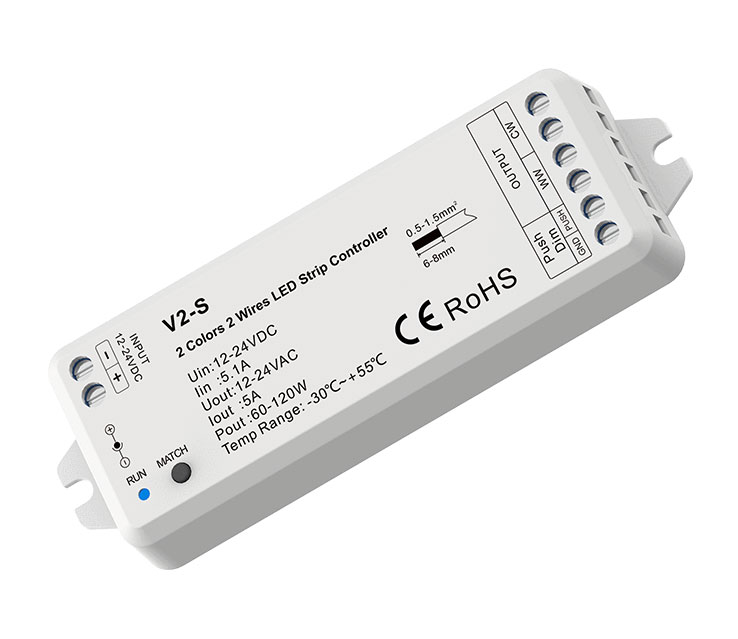

1CH*5A 12-24VDC 2-Wires WW+CW CCT Controller V2-S

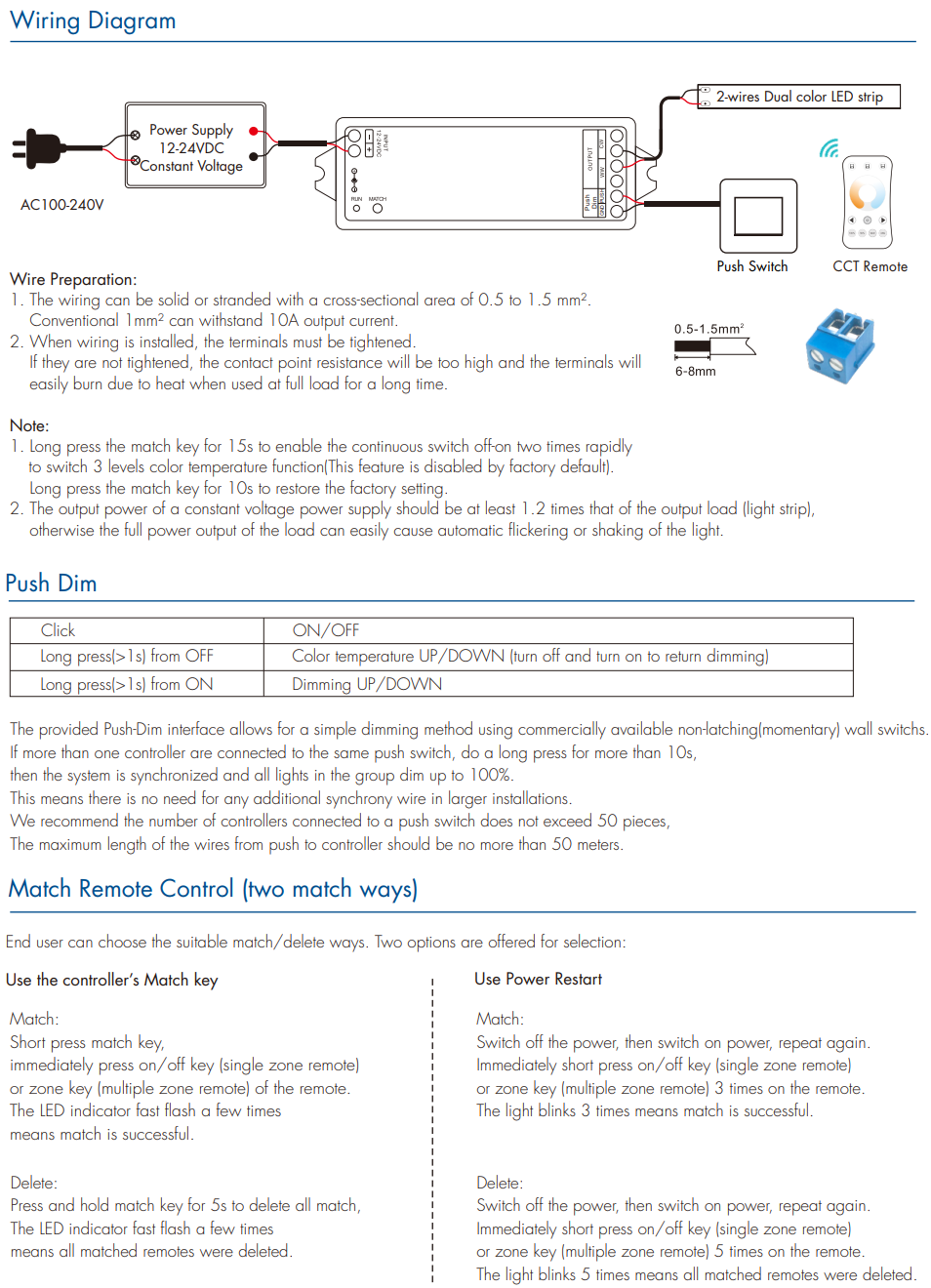

● Only apply to 2-wires WW+CW LED strip.
● Match with RF 2.4G single zone
or multiple zone dual color remote control.
● One RF controller accept up to 10 remote control.
● 4096 levels 0-100% dimming smoothly without any flash.
● Auto-transmitting function: Controller automaticly transmit signal
to another controller with 30m control distance.
● Synchronize on multiple number of controllers.
● 3 levels color temperature (WW, NW and CW) selectable by continuous
power off and on operation.
● PWM frequency 2KHz, 8KHz or 16KHz selectable.
● Connect with external push switch to achieve on/off and 0-100% dimming function.
