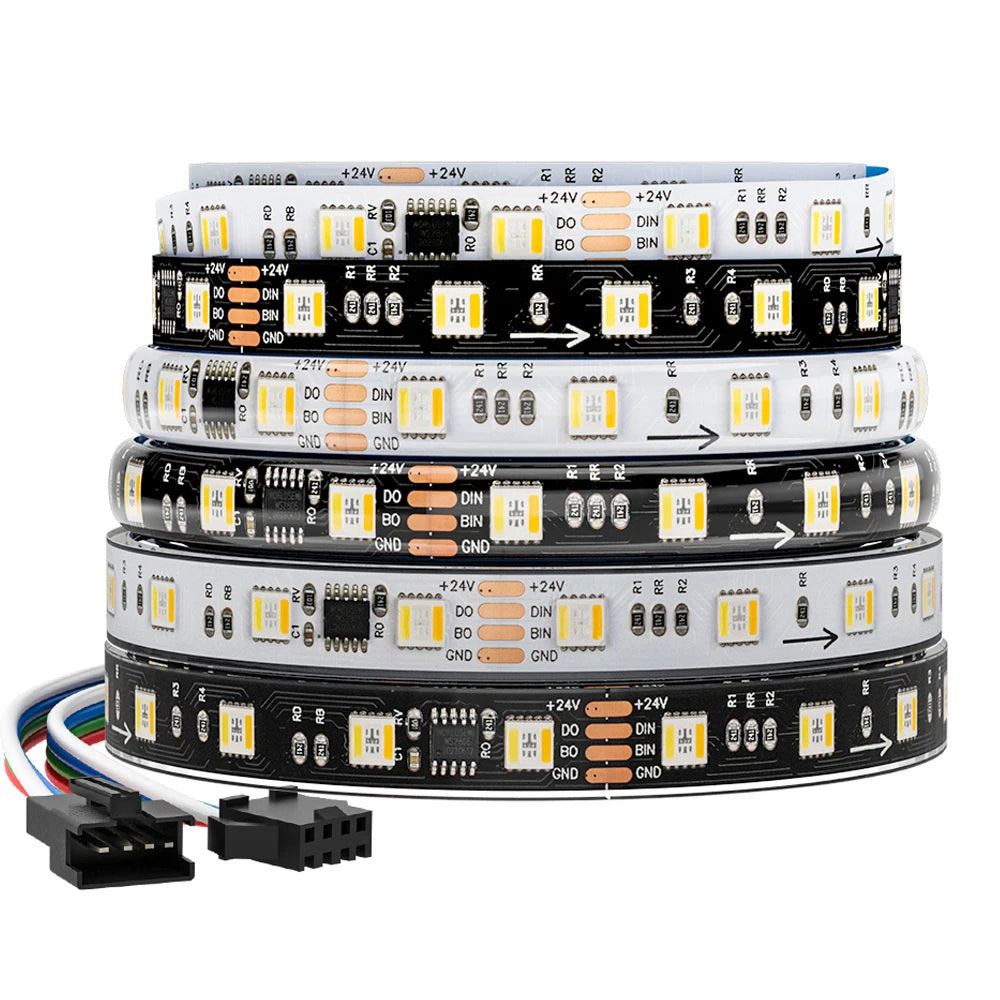

5m WS2805 RGBCCT IC LED Strip - 5-in-1 Addressable Dual Signal Pixel LED Lights (3000K–6500K) - 12V / 24V
Please Pay Attention !
1. The Price is Only Pixels LED Strip, Not Included Power Supply and Pixels LED Controller.

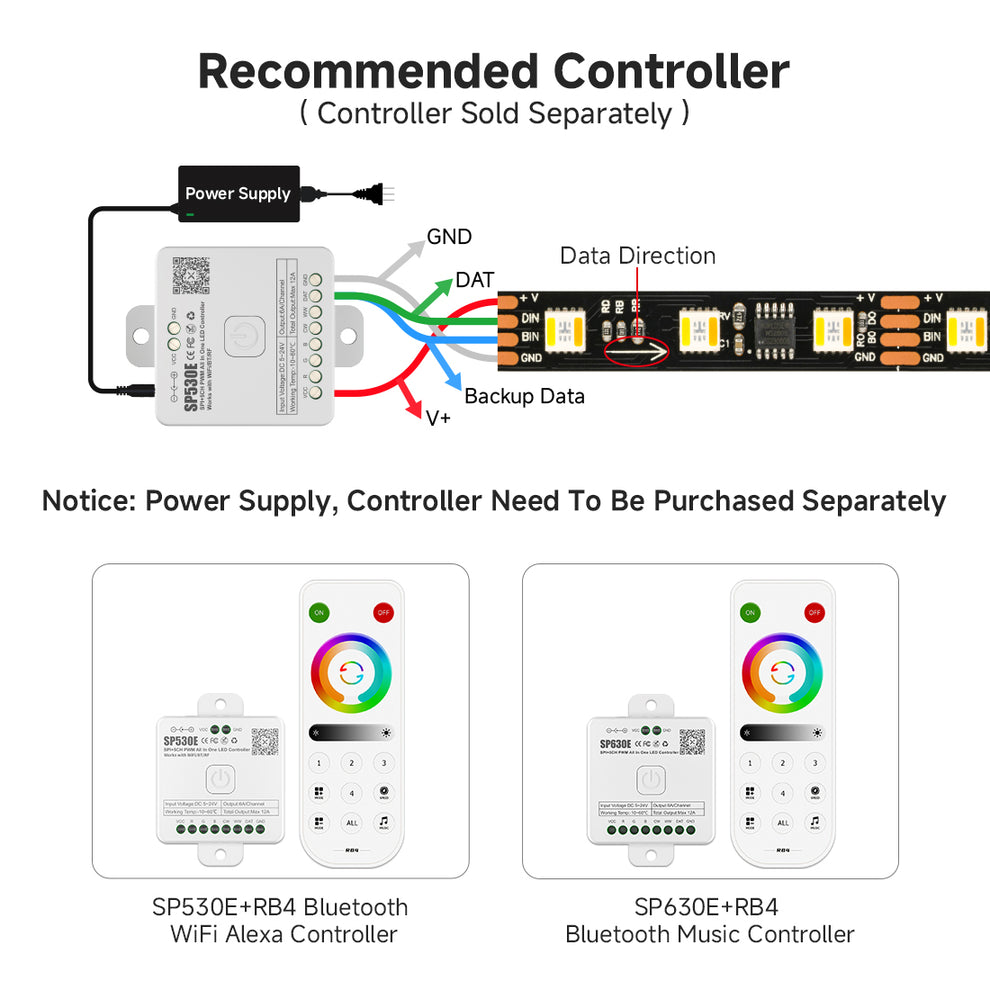

2. WS2805 Must Use compatible DC24V / 12V Power Supply and Pixels LED Controller to Control.
3. Every 0.5 Meter with Solder Joints, It Is Very Normal In an Electronic Product, It's Not a Quality Problem.
4. WS2805 LED Strip Can Be Cut Between Each 6 LEDs To Create Custom Lengths, Please Do Not Bend LED Strip Sharply.
5. The LED Strip Has Adhesive Tape On The Back of PCB (Except Ip67 ). Please Make Sure Installation Surface Must Be Smooth, Clean And Dry.
6. Longer LED Strip Runs, Please Power From 2 pin Power Wire of Both Ends To Reduce Voltage Drop.
Specifications:
Working Voltage: DC24V / DC 12V.

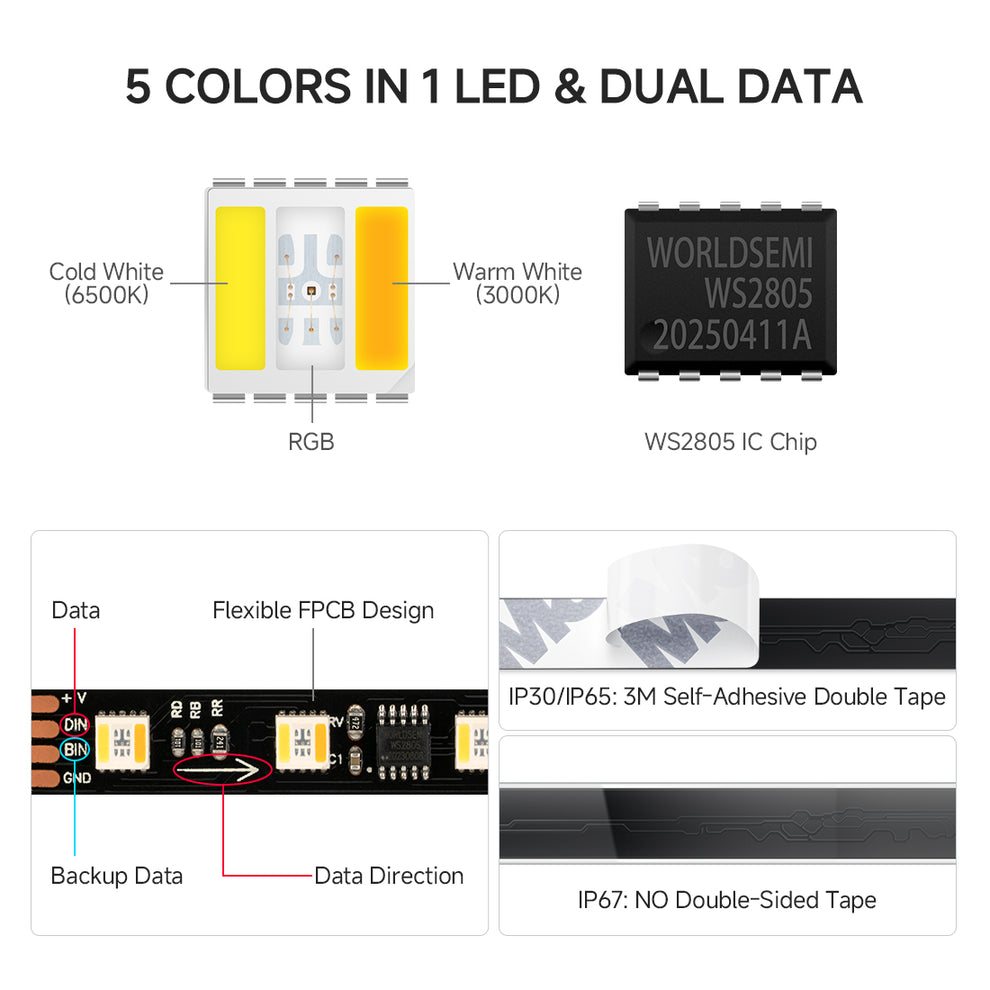

LED Source: SMD 5050 RGBCCT.
LED QTY: 60 LED/M.
IC QTY: 10 Pcs IC/M.
Power: DC 12V, Max 12W/meter; DC 24V, Max 16W/meter
Grey Scale: 256 / Color.

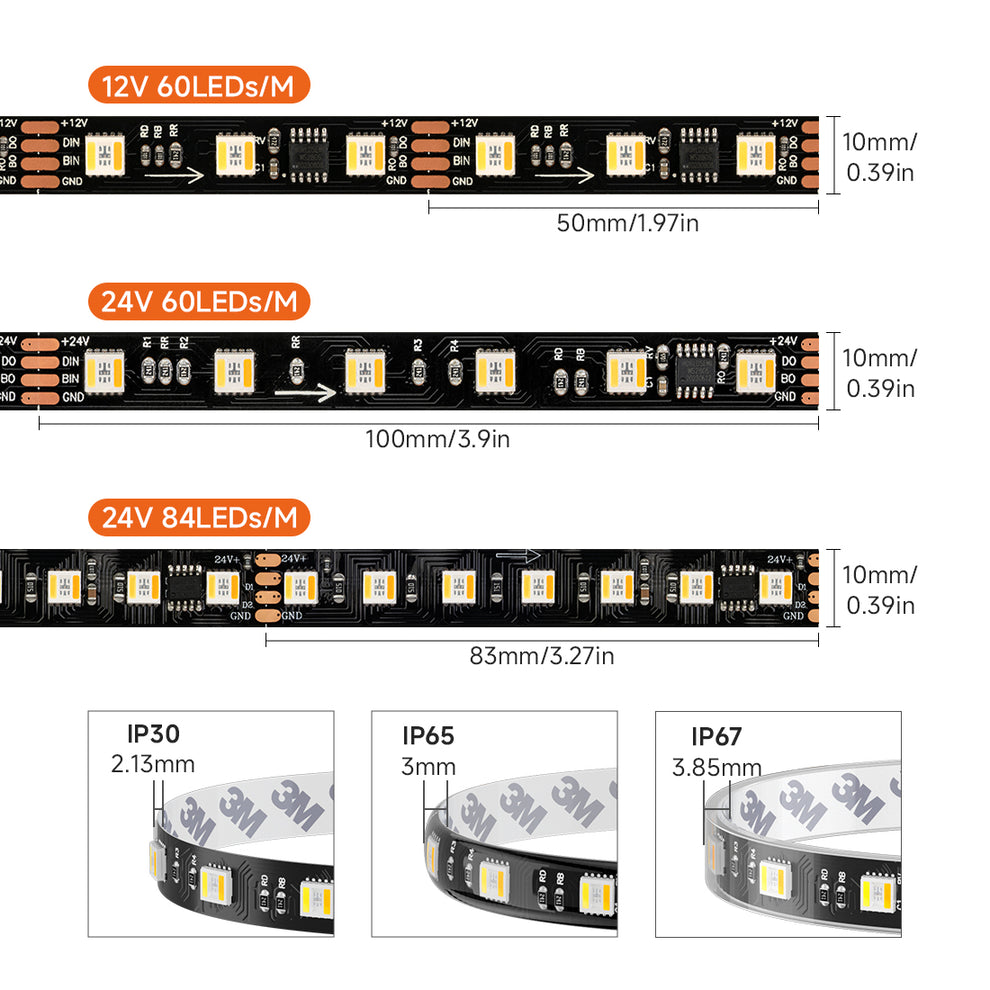

Cutability: 10cm can be cut for DC 24V; 50mm can be cut for DC 12V.
Beam Angle: 120 °.
Dimension: 5000mm x 10mm.
