Advanced professional standard RGBCCT colour toning designed for your high end display and ambient lighting installation requirements. Tunable through a full RGB colour spectrum with dedicated White chips to give a full tunable CCT range from 2300K to 6500K.

Our Advance range of LED strip lights is designed to provide you with the highest standard LED lighting solution and robust and reliable lighting solution for top level installations in architectural, commercial and domestic settings by featuring a superior adhesive backing and thicker copper PCB.

Capable of full RGB colour toning as well as dedicated white chips that provide high quality white colour toning. With 288 LEDs per metre this versatile LED tape is suited to a variety of applications and in areas where advanced ambient, display and feature lighting is required.

An RGBCCT Controller will be required to operate this LED tape to it's full potential. Complete with a 3m Self-adhesive backing for easy fixing into LED channel and a top level 5 year guarantee. Giving you piece of mind on your next installation.

Dimming Compatibility
Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.

Specifications
Ambient Operating Temperature：-20 to 60 °C (-4 to 140 °F)
Certifications/Compliance：CE, UL Listed
Color Temperature：Tunable CCT
CRI：80+
Dimmable：Yes
Dimmer Type：PWM
Environmental Rating：Non-weatherproof, Suitable for Dry Locations
Finish：White
Input Connection Type：Pigtail
IP Rating：IP20
LED Beam Angle：120°
LED Color：RGB+Tunable CCT
LED Per Metre：288
LED Chip Type：2835 SMD + 5050 SMD
Length：16.4 ft (5 m)
LED Lifetime：36000 Hours
Max Run (Class 2)：16.4 ft (5 m)
Minimum Cut Length：100mm (3.9in)
Operating Voltage：24 VDC
Product Dimensions：196.85″ x 0.47″ x 0.08″
Series：DynamicColor
Strip Width：12mm (0.47in)
Wattage：76.8 Watts
Wire Gauge：22 AWG
Wire Length：19 in.

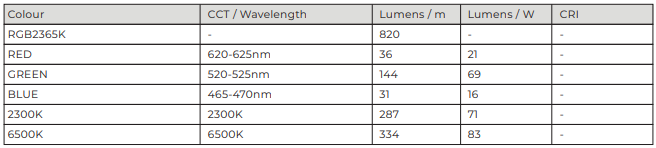

Photometric & Light Data (continued)
