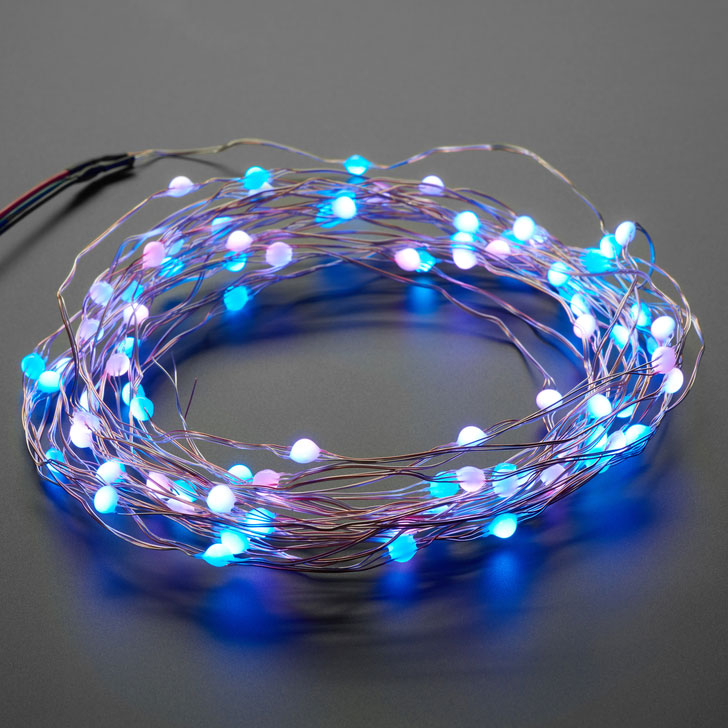

These look a lot like our NeoPixel fairy lights here, but have a funky twist. In fact, we're a little hesitant to call them NeoPixels because while they can be controlled by "NeoPixel" code, they don't function like NeoPixels. Technically, an NeoPixel is an LED that also acts as a shift register. 24 or 32 bits of brightness data comes in the input pin, and the LED removes it and passes along the rest. This is what lets folks chain as many pixels as they like onto the end: each pixel just grabs the first color data, and passes the rest down like a bucket brigade

These LEDs are not shift registers. In fact, if you look closely, there's no input and output pin, only one data line. That's because each LED in this strand is pre-addressed from 0 to 100. Whenever it receives the NeoPixel data, it picks out the n'th color data (matching to its pre-address) and displays that. You cannot change the pre-address, its fixed permanently - or at least, we have no idea how to re-address it.

So, you can use these with any NeoPixel library, but you can't chain two of these and expect that the strip will extend. Also if you cut this in half and connect the data lines of the two halves to the microcontroller data pin, it will still act as if it were one long strand.

While a little different than most NeoPixels, this still might be useful for some situations - where you want to have multiple 'branches' of NeoPixels without having to zig-zag the chain. Or maybe if you want to have multiple strands that display the same.

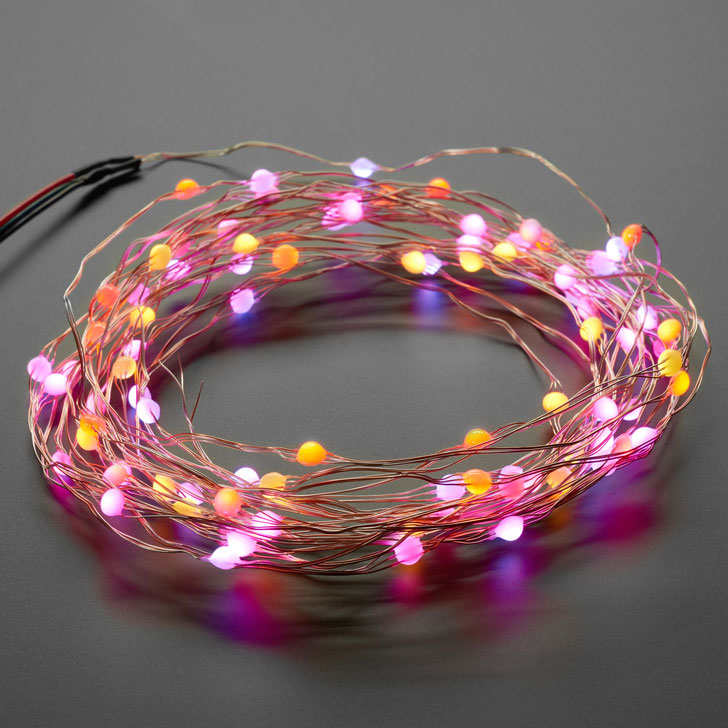

Each LED is encased in a milky white epoxy blob, we tried cutting one open but its nearly indestructable. The wire used is solid-core single strand, flexible but holds its shape, the wire is magnet wire, with a non-conductive coating so as long as the coating doesnt scratch off, you can have the wires touch. There's a coated pixel every ~100mm (~4 inches). It does not come with weatherproof sheathing so we do not recommend washing these or dunking them underwater. You can cut the strand pretty easily with wire cutters. Be sure to avoid abrasion or repeated flexing of the connector cables.

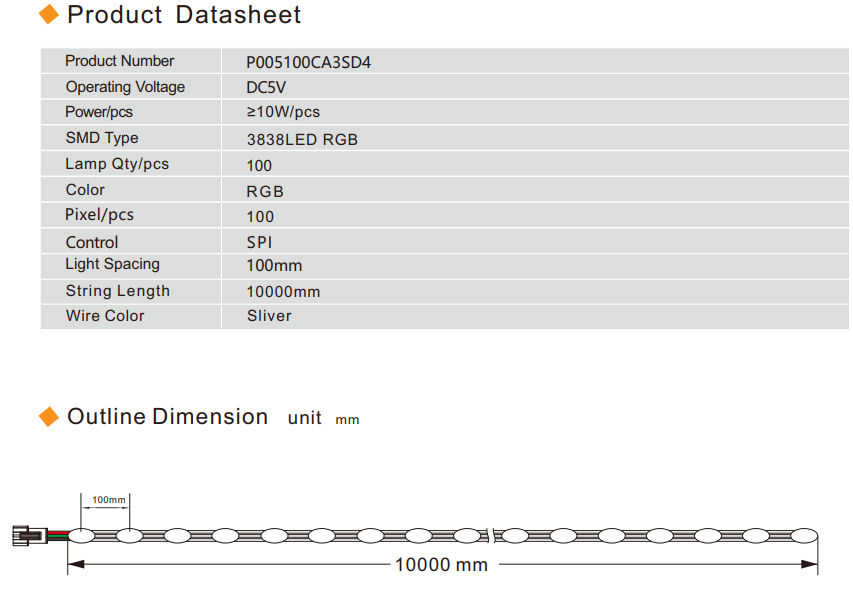

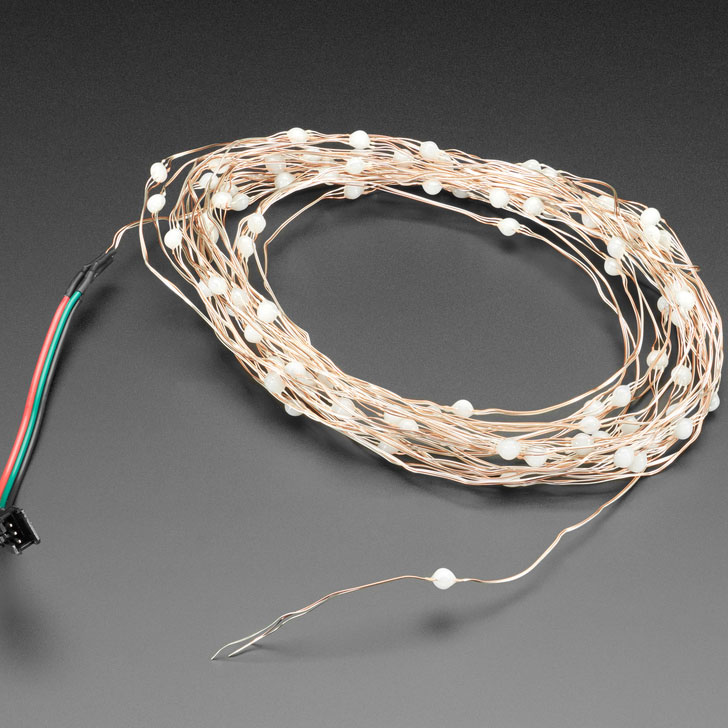

Connecting to these may be a little tricky because there are no power/data markings (there's no PCB!) The red wire (the more coppery-red wire) is power. The middle wire is data. The remaining wire is ground. Scratch or burn off the magnet-wire coating to solder to it with an iron. Of course, there's no input/output side for these pixels because they have one data line.
