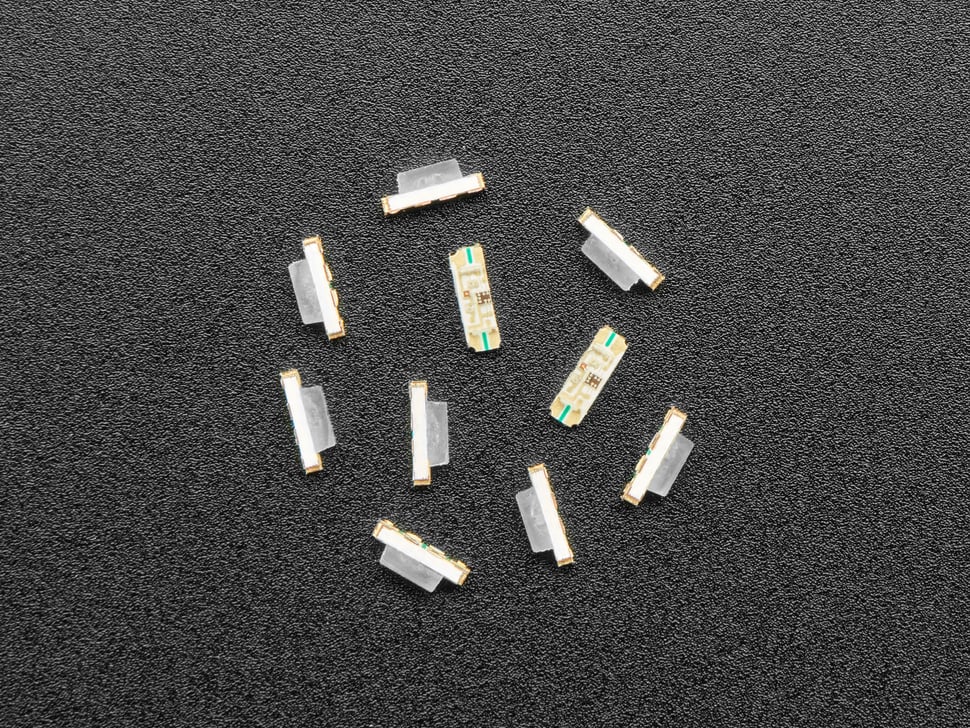

    NeoPixel Addressable RGB LEDs - Slim Flat 3.2mm x 1.0mm 10 pack - SK6812-EC3210F

      (1 Reviews) | Write a review
    SKU: ADA4892
    Discontinued
    Starting at: $3.99
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Mon,Jul,13 and Sun,Jul,19. order with 2days,9hrs and 31 min.

    These incredibly small and slim surface-mount NeoPixel LEDs are an easy way to add a lot of very tiny (but bright!) colorful baguette diamond LEDs to your project. They are just 3.2mm x 1.0mm x 1.48mm and can be soldered in a few different ways: flat against a PCB, reverse mount using the top pads and a cutout in the PCB, and right angle. As they are pretty darn tiny, they will be difficult to hand solder. SMT techniques with solder paste and hot air will work best here.

    The driver chip is inside the LED and has ~12mA constant current drive, so the color will be very consistent even if the voltage varies, and no external choke resistors are required making your design minimal. Power the whole thing with 5VDC, and you're ready to rock.

    There are three LEDs inside, red, green, and blue. The RGB LEDs are controlled by a tiny chip that takes a 24-bit color level via the clock and data in and then does all the PWM control for you. So you just 'set' the color data once. Like all NeoPixels, you can chain them together, the output of one leading into the input of another for near-infinitely long strips.


    Show more reviews
    store image

    NeoPixel Addressable RGB LEDs - Slim Flat 3.2mm x 1.0mm 10 pack - SK6812-EC3210F

    Part Number: ADA4892
