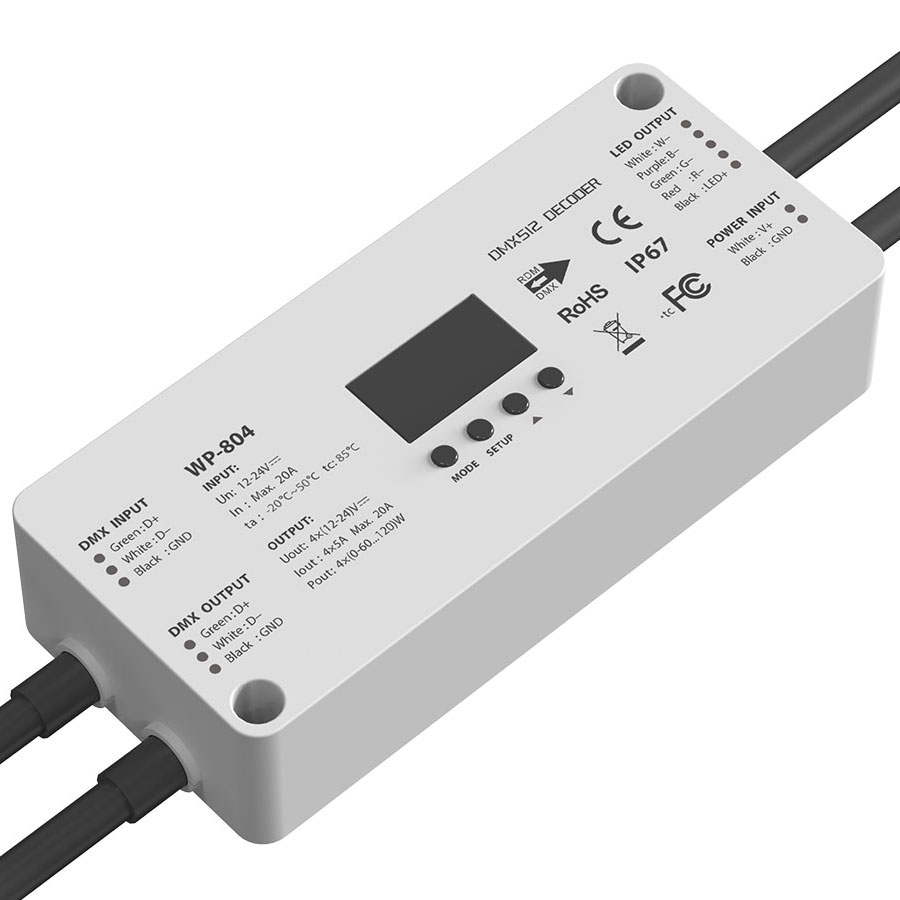

WP-804 uses the RDM protocol and supports DMX512/RDM signal bi-directional communication. The RDM pro-tocol enables the remote management such as reading / writing DMX address (For RDM functions the DMXmaster must be RDM compliant). WP-804 has 4 channel output with max. 5A output for each channel. It can beused to control DIM, CT, RGB, RGBW constant voltage lights and achieve 0-100% dimming or various lightingeffects. WP-804 can be operated in DMX mode or in customized mode.
It is easy to set address via digital display and buttons. WP-804 is a waterproof decoder with IP67 rating, sui-table for outdoor and damp environments.

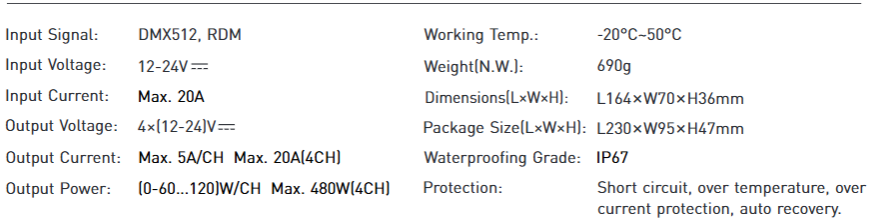

Specifications

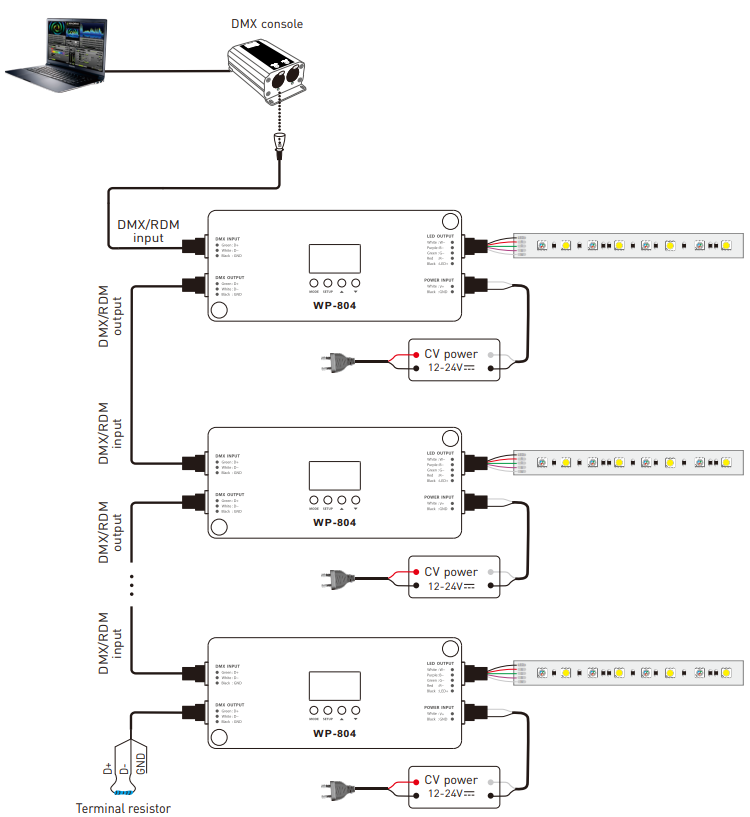

Parts Diagram
