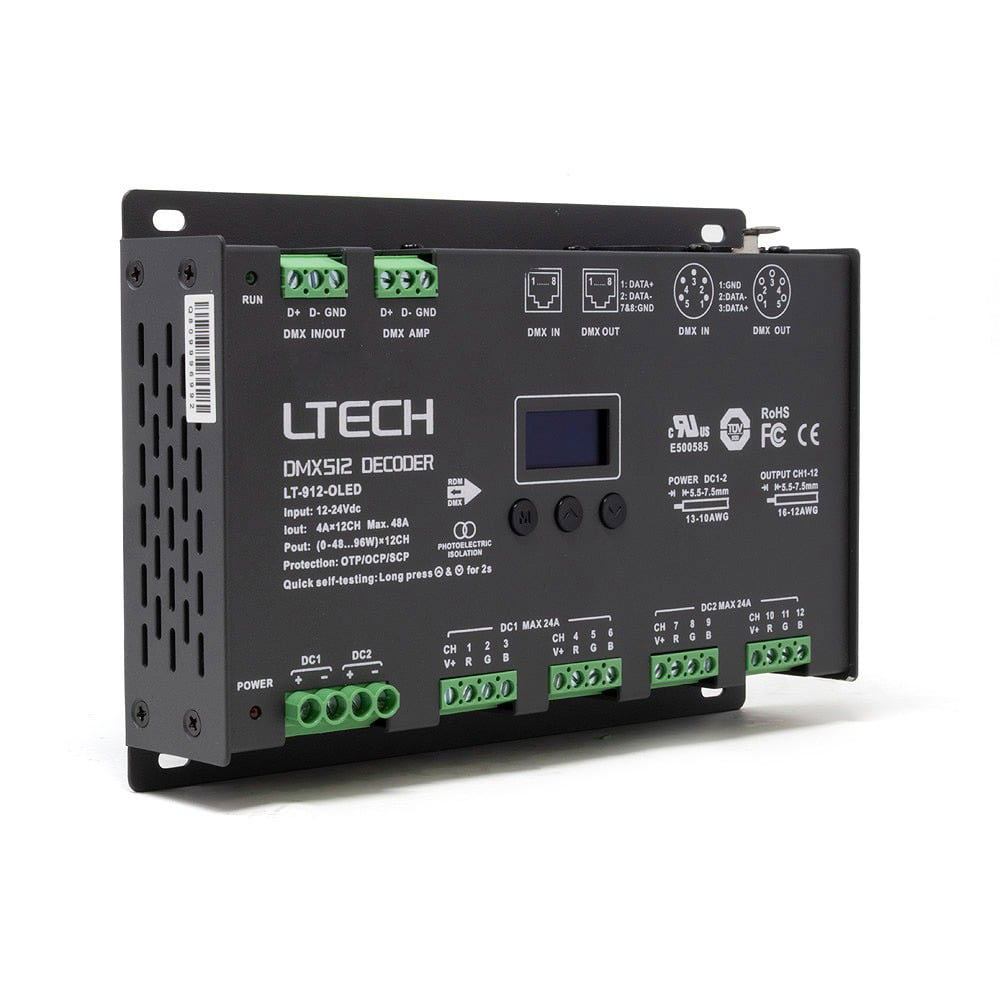

The LT-912-OLED 12-Channel Constant Voltage DMX512 decoder is an installation-grade solution engineered for high-power, multi-channel lighting projects. It is perfectly suited for sophisticated commercial environments, including hotels, restaurants, large retail displays, and professional architectural lighting systems.

As a key product in our LTECH professional lighting control series, the LT-912-OLED combines advanced functionality with industrial-grade reliability. The integrated RDM protocol allows for seamless bi-directional communication, enabling installers to remotely detect devices, configure DMX addresses, and monitor parameters via an RDM master console or Wi-Fi editor.

This decoder features high-definition dimming capabilities with selectable 8-bit or 16-bit resolution, ensuring smooth light transitions without flickering. This makes the unit highly effective for environments where quality of light is critical, such as film or TV production studios.

The unit's versatile connectivity includes 5-pin XLR, RJ45, and green terminal interfaces, all featuring photoelectric isolation to maximize signal efficiency and noise immunity across long cable runs. The green terminal blocks also include a signal amplifier function, simplifying complex daisy-chained installations.

Operational parameters are easily managed through the built-in OLED screen and intuitive touch buttons:

DMX address configuration (1-512)
PWM output frequency selection
Operating mode selection (DIM, CT, RGB)
PWM resolution setting (8-bit or 16-bit)
Advanced dimming curve adjustment (Standard, Linear, LOG, or custom 0.1-9.9)
System self-testing and firmware upgrade capabilities
The LT-912-OLED requires a compatible 12-24V DC power supply to support its 12-channel output capacity. By connecting this unit to a master DMX controller, you gain absolute control over intricate, high-density lighting arrays using industry-standard DMX protocols.

Specifications
12 channel constant voltage DMX/RDM decoder
12-24V DC input voltage
Maximum 48A output current (4A per channel)
Advanced OLED display with tactile touch button operation
Standard RDM remote device management protocol
Three operating modes: DIM, CT, and RGB
16-bit or 8-bit output resolution configurations
Triple DMX interface options: 5-pin XLR, RJ45, and green terminal blocks
Integrated signal amplifier function on green terminals
Comprehensive short circuit, over-current, and overheat protection
5 Year Warranty
