Single Color LED Modules - Waterproof Injection 5730 12V LED Module 3LEDs - 20-Pack
The 12V LED modules have 20 pieces per string, are cuttable, and reconnectable. You can cut any quantity and reconnect them for your lighting projects. The 12VDC LED modules use 3PCS high-quality and super bright 5730 SMD LEDs as the light source, and the LEDs are mounted on a high-quality aluminum board for better heat dissipation. The shell is made of ABS material, and with a molding injection process, the surface features an optical lens for wide-angle lighting. The IP rating is IP65 and can be used for indoor and outdoor lighting projects. The back has double-sided adhesive tape; remove the protector on the tape, and you can stick it to your desired place. The waterproof LED modules working on 12VDC can connect to the DC adapters to light up or connect to the LED module dimmer to adjust the brightness. You can use it as the backlight for advertisement signs, billboards, channel letters, holiday decorations, etc.
Specifications:
Working Temperature: -40°-+60°
Material: ABS Anti-Static
Size: 75*12*5.7mm(L*W*H)
LED: 5730 SMD LEDs
LED QTY: 3PCS/PC
Working voltage: DC12V
Wattage: 0.72W/PC
Colors: Cool White, Warm White, Green, Blue, Red, Yellow, Pink
IP Rating: IP65
View angle: 120°
Lumen: 240-400lm
Color Rendering Index: 70Ra
Optical Attenuation: 1%
20PCS Per String

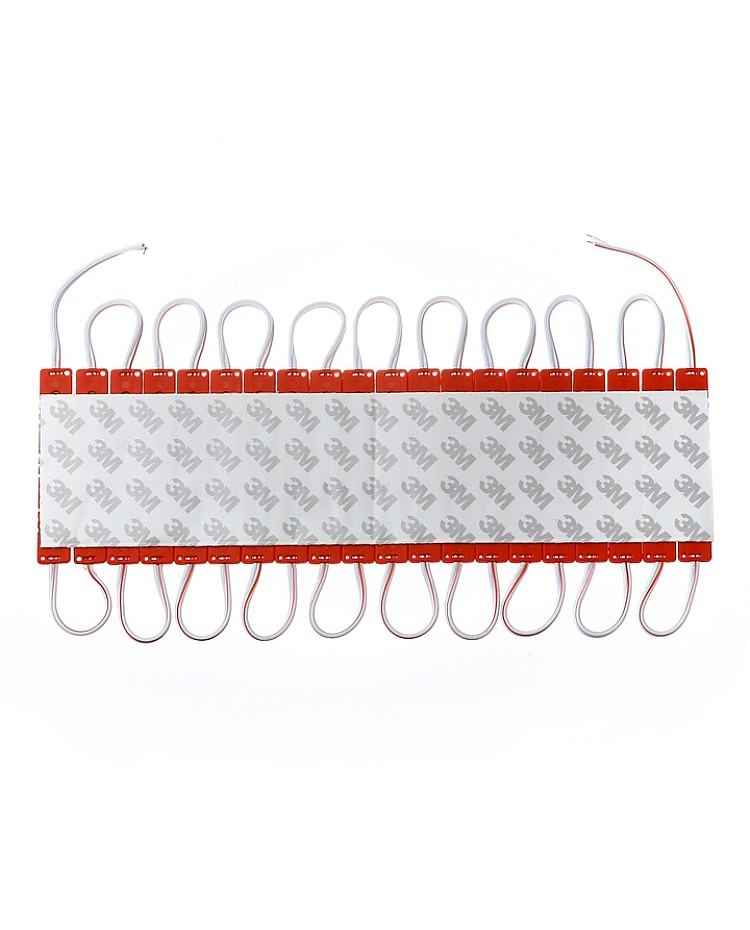

Back With Double-sided Adhesive Tape
Cuttable And Reconnectable
Lifespan: >35,000 Hours
2 Years Warranty
Applications:
Outdoor/Indoor Use, Cove Lighting
Path and contour lighting
Backlight for signage/ letters
Architectural lights for Canopy, Corridor, Window, Archway
DIY Lights for home use
Marine light, Task lighting
Replacement of Fluorescent light
Decorative lights for holidays, events, shows, and exhibitions
