The LED sign lighting modules with PMMA Lens use one-piece high-quality 3030 SMD LEDs as a light source. The LEDs are mounted on the aluminum PCB board for better heat dissipation and a longer lifespan. The shell is made of PC and ABS material, and with an injection molding process, looks fashionable and tightly sealed for the best protection. Both sides have screw holes, you can fix them on the lighting project with screws. The LED modules have double-sided adhesive tape, are easy to fix, and use. Working on DC12V, safety to children and pets, with the constant current design, ensuring full brightness and stable working. The surface of SMD LED modules with the high light transmittance PMMA Lens, 45*15° beam angle, and IP rating of IP65 can be used for indoor and outdoor applications. The LED sign modules are 20 pieces per string, cuttable, and reconnectable, and you can cut any quantity and reconnect them for the project. You can use them as the backlight for lightboxes, signs, channel letters, or decorations for the holiday.

Specifications:
Model: 3030BL
Working Temperature: -25°-+55°
Material: ABS+PC
Size: 49*31mm(L*W)
LED Type: 2835 SMD LEDs
LED Quantity: 1PC
Luminous Intensity: 4800 MCD
Working Voltage: DC12V
Output Power: 1.5W/PC
Lumen: 110-140lm
IP Rating: IP65

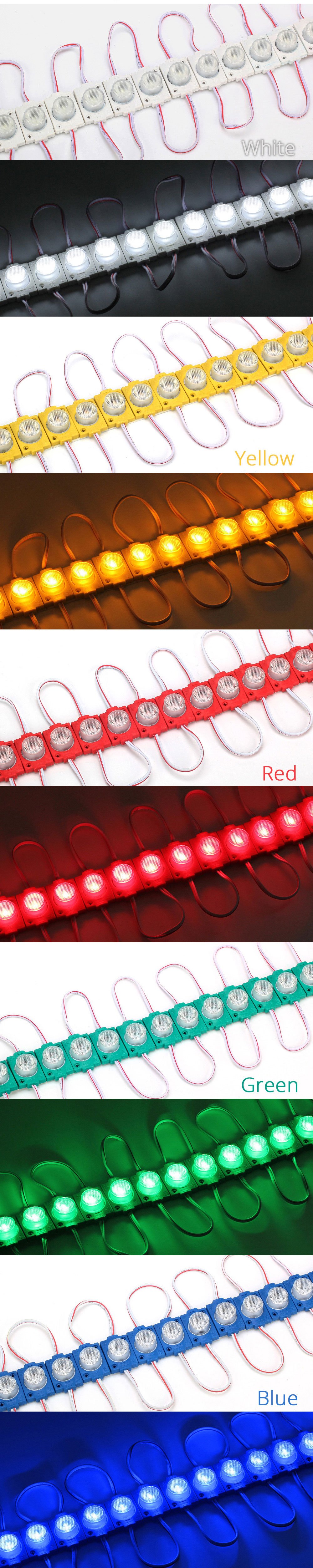

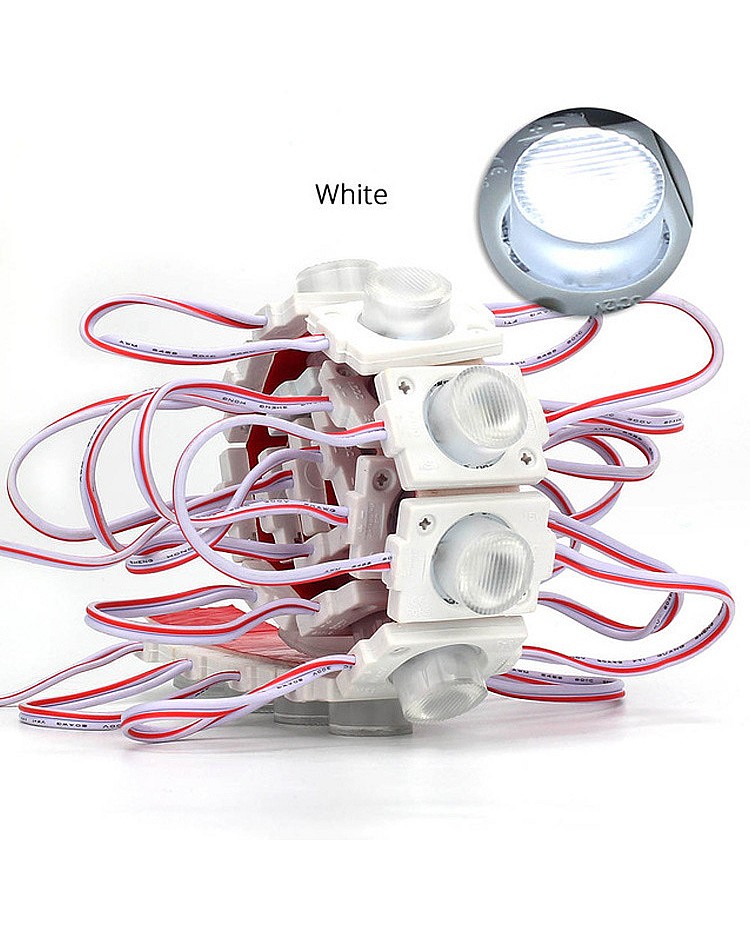

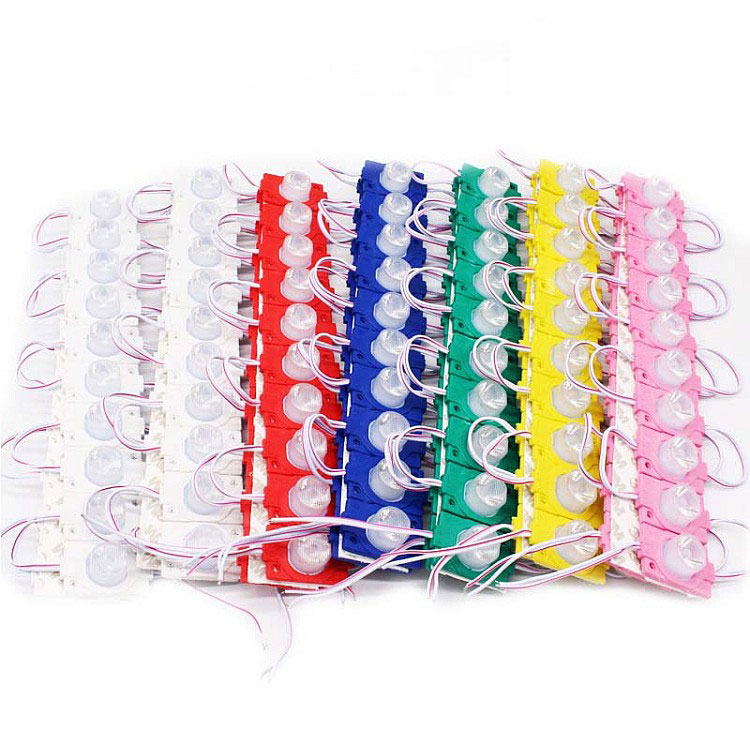

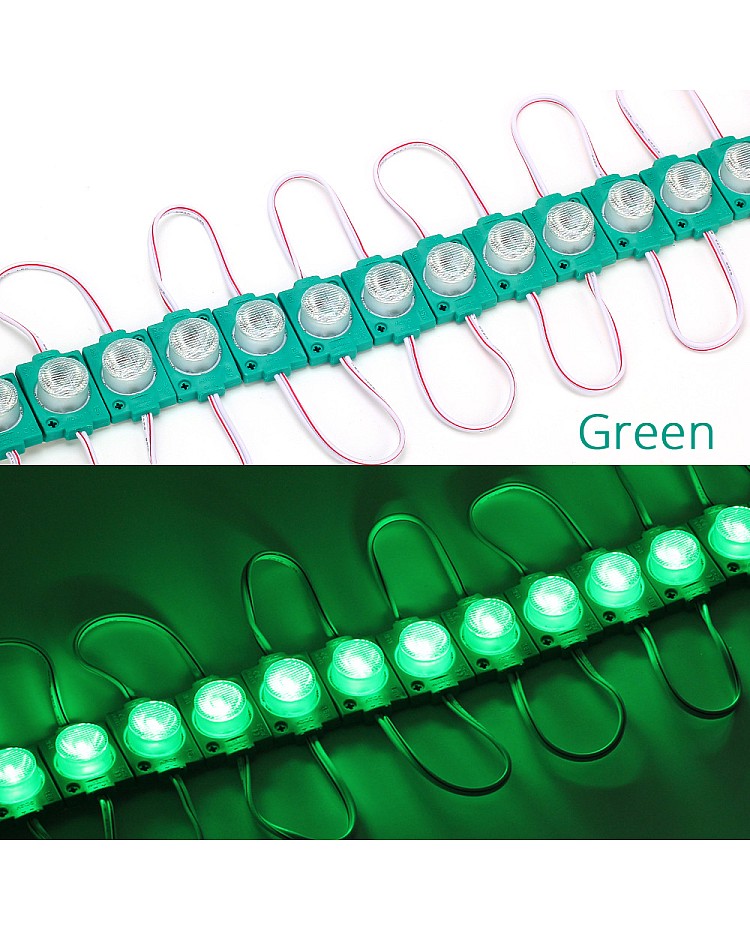

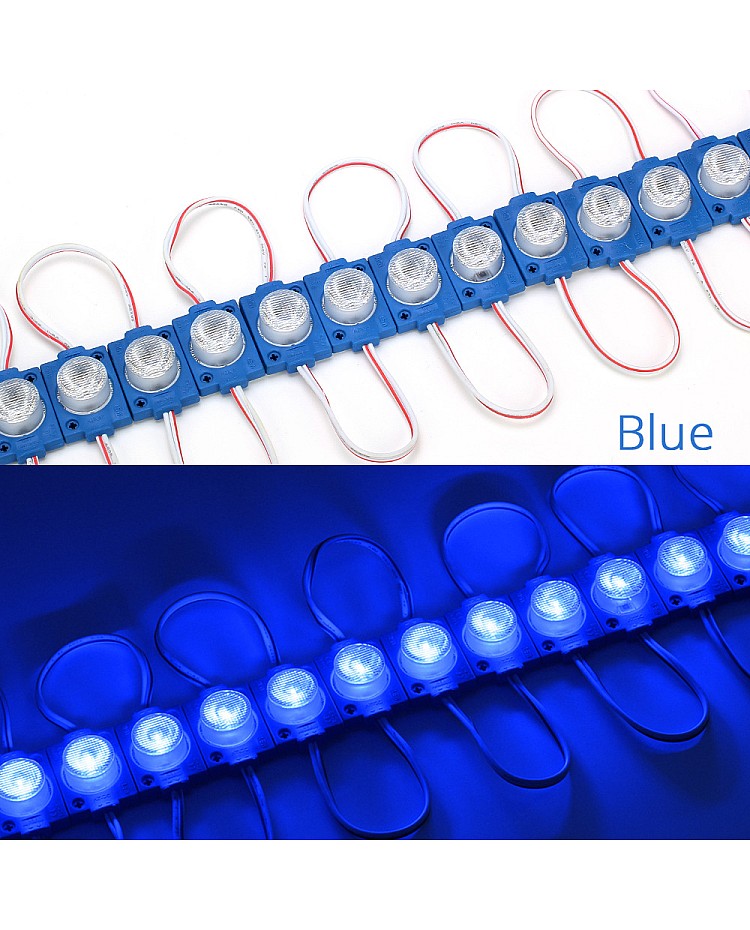

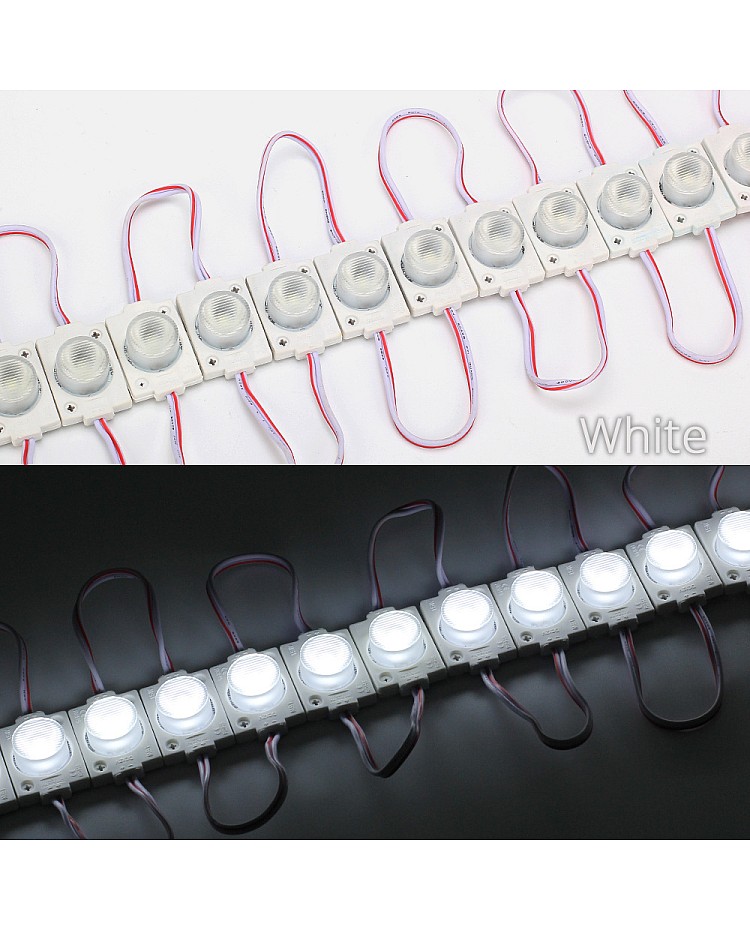

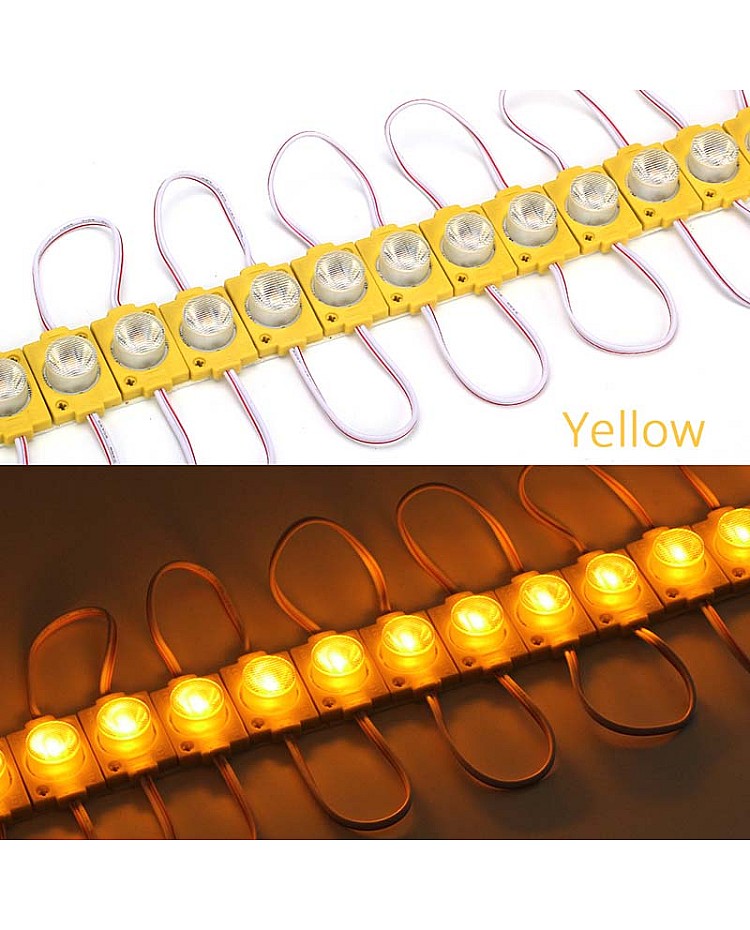

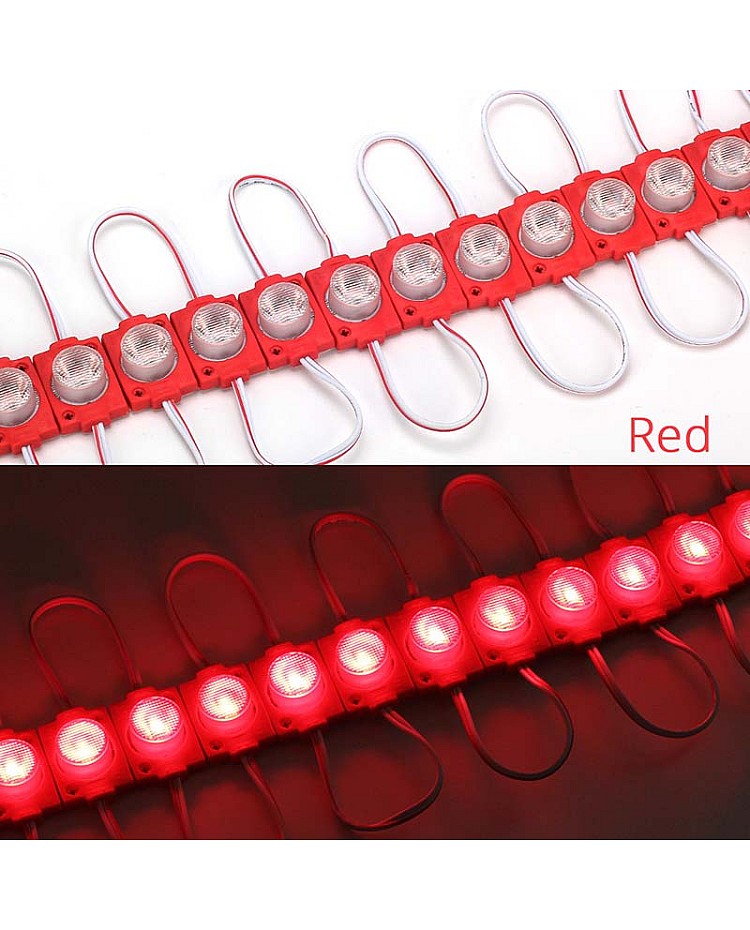

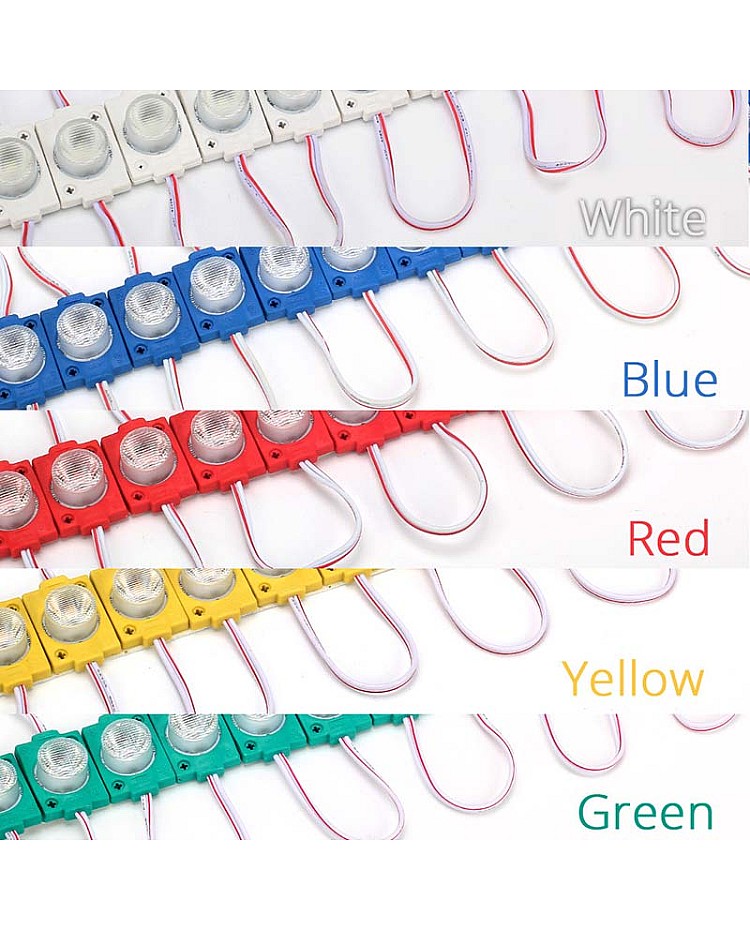

Emitting Colors: Warm White, Cool White, Blue, Green, Red, Yellow, Pink
View Angle: 45°*15°
Color Rendering: 80Ra
20PCS Per String
Back With Double-Sided Adhesive Tape
Wire Length Between Modules: 10-14cm
Cuttable And Reconnectable
Lifespan: >30,000 Hours
2 Years Warranty

Applications:
LightBox And Signage: 8-20cm Double-Sided Light Box,
Round Corner Advertising Signs, Exhibition Show, Ceiling Roof Light,
Institution building, commercial lighting, backlights for channel letters, and billboards.
