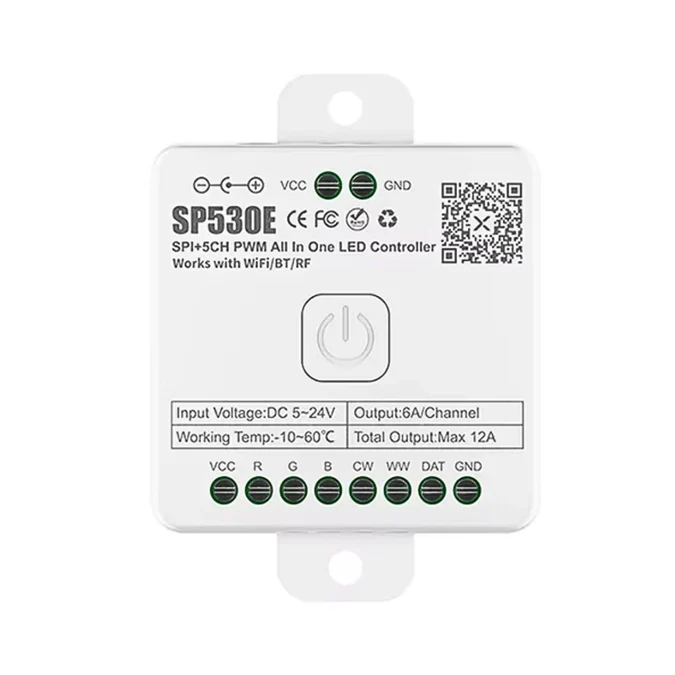

The SP530E PWM All-in-One LED Controller is a versatile device designed to work with up to twelve types of LED strips, including PWM, addressable, and combined Addressable+PWM LEDs. It supports 1/2/3/4/5CH W, CCT, RGB, RGBW, and RGBCCT configurations, making it ideal for both decorative and professional installations.

Control is simple and flexible with WiFi, Bluetooth, and RF connectivity. The controller works with the BanlanX app for iOS and Android, and is also compatible with 2.4G wireless remotes and 86-type touch panels. It can be set up for zone control across four zones or unified control, and also supports voice assistants such as Alexa and Google Home for hands-free operation.

Music synchronisation is a key feature, offering three capture modes through a phone microphone, player streaming, or the built-in microphone. Each strip can be customised with unique effects, reacting to low, medium, and high audio ranges for immersive sound-to-light displays. Spectrum effects and colour corrections can also be configured for fully personalised lighting.

With DC 5V–24V input and a maximum 6A output, the controller is compact at 78mm x 56mm x 20mm, yet powerful and reliable. The SP530E/SP630E offers high compatibility, app and remote control, music effects, and voice integration, giving you complete flexibility for LED lighting projects.

Features:
High-performance, low power consumption Bluetooth microprocessor for stable operation
Compatible with up to 12 types of LEDs including PWM, RGB, RGBW, RGBCCT, and addressable strips

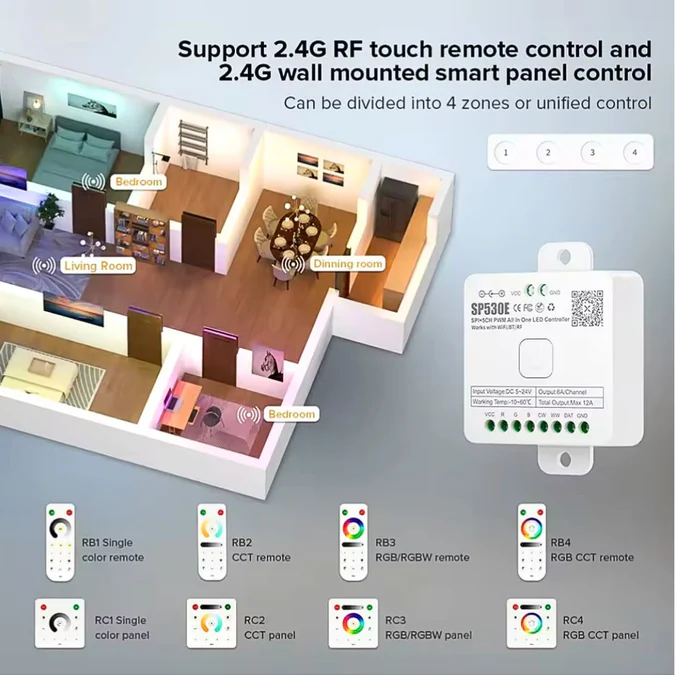

Multiple control options: mobile app, 2.4G touch remotes, and 2.4G 86-type wall control panels Flexible setup with zone control (4 zones) or unified control for all lights
Customisable on/off animations and default power-on states
Advanced configuration for device name, colour order correction, and timer settings
 Music synchronisation with three capture modes: phone microphone, player streaming, and onboard microphone
Five main control pages in the app: dynamic, static, music, custom, and settings

Specification:

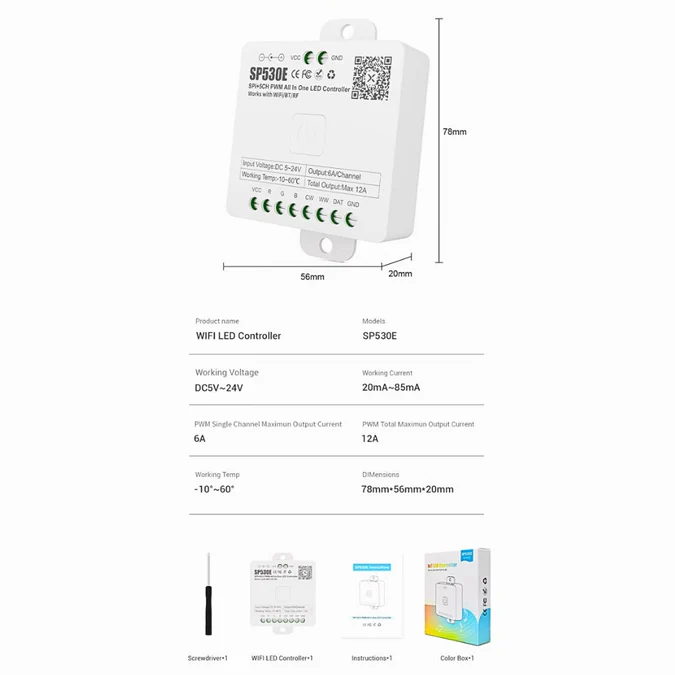

Size(L*W*H): 78*56*20mm
Working Voltage: DC5V - 24V
Working Current: 20mA-85mA
PWM Single Channel Maximum Output Current: 6A
PWM Total Maximum Output Current: 12A
Maximum support quantity of ICs: 3600PCS(Single Color), 1200/1800PCS(CCT), 1200PCS(RGB), 900PCS(RGBW), 600/720PCS(RGBCCT)
Built-in 146 dynamic effects and 18 music modes
Integrates WiFi, Bluetooth, and 2.4G RF communication protocols
Music Mode: Mobile phone mic, player streaming, onboard mic
Mobile APP Control / 2.4G remote control / 86-type panel control

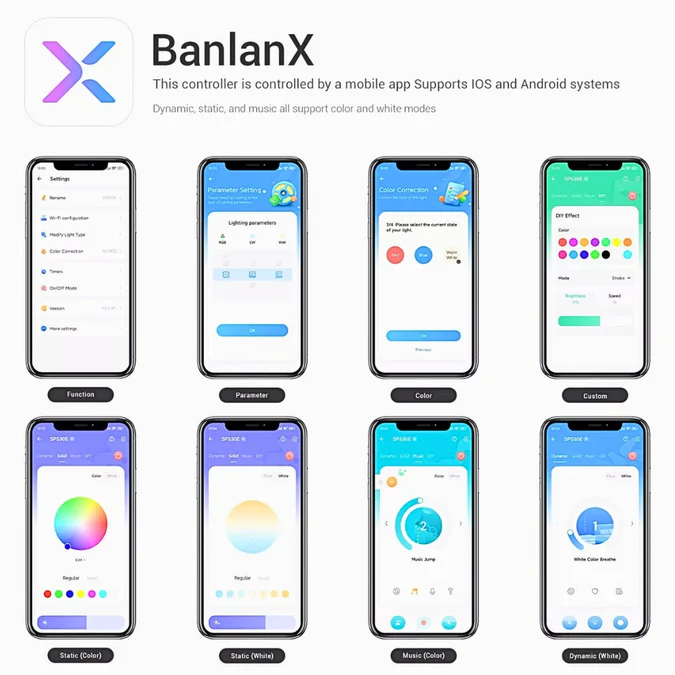

APP Name: BanlanX
Smart speaker voice command control: Alexa, Google Home, Xiaoai, Xiaodu, etc

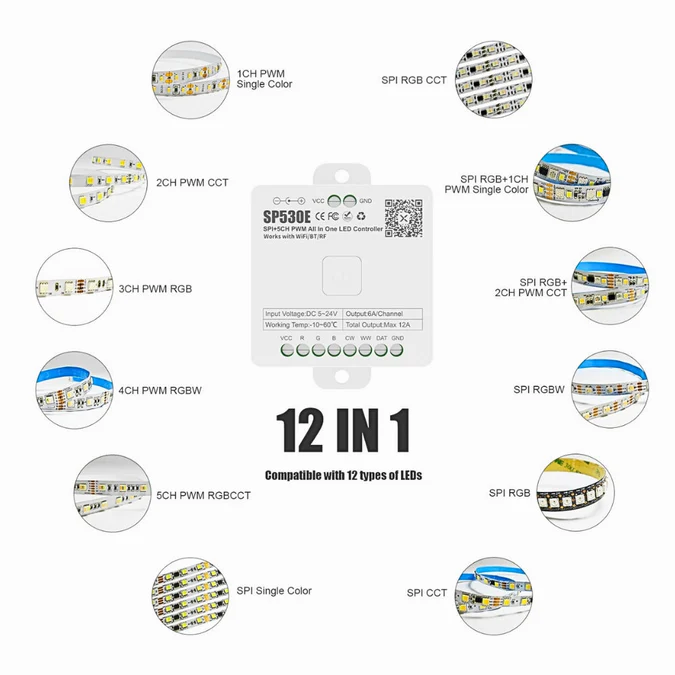

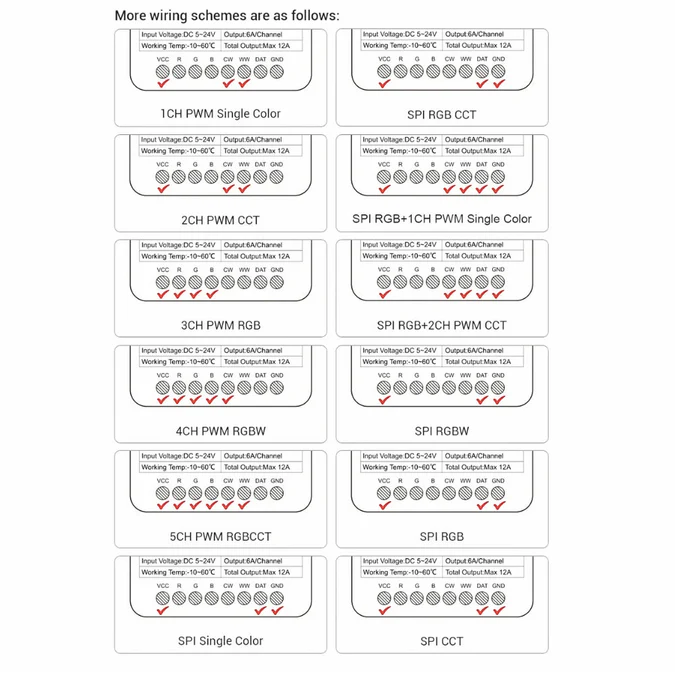

Suitable for various types of LED: 1CH PWM Single Color, 2CH PWM CCT, 3CH PWM RGB, 4CH PWM RGBW, 5CH PWM RGBCCT, SPI RGB+1CH PWM Single Color, SPI Single Color, SPI CCT, SPI RGB, SPI RGBW, SPI RGBCCT, SPI RGB+2CH PWM CCT
Supports LED panel music effects
Support ICs: WS2811, WS2812, WS2813, WS2814, WS2815, WS2805, SK6812, TM1804, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, TM1829, TM1914A, GW6205, GS8206, GS8208, etc
Support PWM Types: FCOB, 5050, 3014, 3528, 5730,5630, etc
Support Size Of WS2812B LED Panels: 8*8, 8*16, 8*32, 11*44, 16*16, 32*32, etc (Maximum 1200 pieces of pixels)
Time setting function
Compatible with RF remotes: RB1, RB2, RB3, RB4, RC1, RC2, RC3, RC4
IP Rating: IP20 Non-waterproof
Operation Temperature: -10℃-60℃
Storage Temperature: -10℃-40℃
Warranty: 2 years
