Our high-quality Warm White (2800K-3300K) NEOLINEAR™ Mini "side view" emits a bright white LED light from the side of the flex. Our Mini Neon LED Strip is a low voltage, compact, highly flexible, Pixel free, Linear lighting solution.

Our LED flexible neon is designed for both outdoor and indoor architectural projects in commercial installations. These include settings such as shopping centres, hotels, restaurants and many other applications where a neon light would be required.

The IP67 rating offers protection against:
Water and salt water
UV radiation
Solvents
This product is ideal for use in exposed locations and challenging environments. Due to the waterproof rating, this flexible LED neon light can be used in locations such as coastal holiday resorts and theme parks. Each 5m length of Neon Flex has a 1m wire tail from the underside of both ends.

Both Mini Neon formats feature a continuous pixel-free band of light and can be fixed into place with custom made accessories. Our 1M aluminium mounting profiles or the mini profile mounting clips allow the product to be fixed into place at intervals. This allows the Mini Neon to be shaped as required.

Mini Side view LED Neon Flex Lighting:
NeoLinear™ Side is part of our professional range of LED Neon products for high end commercial and domestic installs. The Side View variation of NeoLinear™ is designed to be bent Side to side with light projecting upwards.

The Mini Neon LED Strip flex itself has a maximum bend radius of 30mm and can be cut every 25mm. Once cut the Flex must be sealed with an end cap to maintain a suitable IP rating for outdoor installs.

Custom bespoke Neon LED
The advantage of bespoke products is that you can specify exactly what you need. We can have custom lengths of LED Neon made by the factory if required. When you have the Neon custom made, there is more choice of single lengths (up to 10m long).

You can also specify the length of the connecting cables and where they are connected, back, side or end and also at one end or both ends of the strip.

NEOLINEAR™ products are fully dimmable and compatible with our RF remote and wall mounted controllers. These controllers are available from our professional Sunricher control equipment range of products. These include DMX512, PWM, ZIGBEE, 1-10v and DALI protocols.

NEOLINEAR™ Mini is available in a variety of bright Warm White & Cool White LED colour options. Further to this we also keep stock of Neon Flex RGB and RGBNW Sideview flexes for colour changing projects in the standard NEOLINEAR™ size. Our entire range of Neon Flex has an IP Rating of 67.

Features:
IP67 Waterproof Coating
CRI Rating >90
Pixel free
Professional Grade
Built with high quality materials
3 Year warranty
5 Metre Roll

Specification
Colour Temperature:2800 - 3300K
Guarantee Period:3 Years
Wattage:30W
Current:250mA/M
Input Power:DC24V
PCB Weight:2oz
Weight:220g

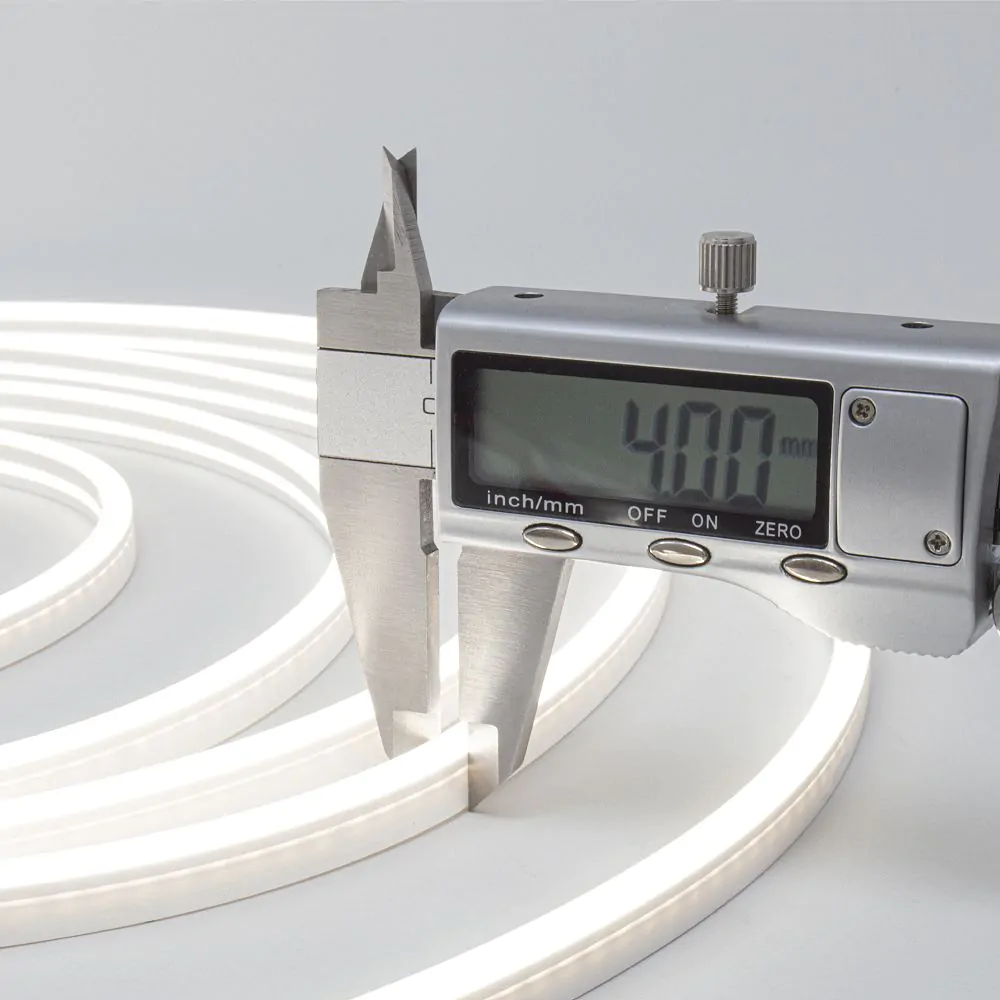

Size:4 x 8 x 5000mm Roll
Reel Length:5 Metres
Beam Angle:120 degrees
LED Spacing:n/a
Power consumption p/m:6W
Lumens p/LED:7lm
Lumens p/m:200lm
Millicandelas:2100
CRI (Greater than):>90
Dimmable:Yes
Cut Intervals:25mm
LED Qty:240 p/m
LED Type:SM2216
IP Rating:IP67
Continuous run in mtrs:5 metres
Average LED life:50,000
Base type:50cm tails at both ends
CE & ROHS:Yes
Product type:Neon Flex Mini
