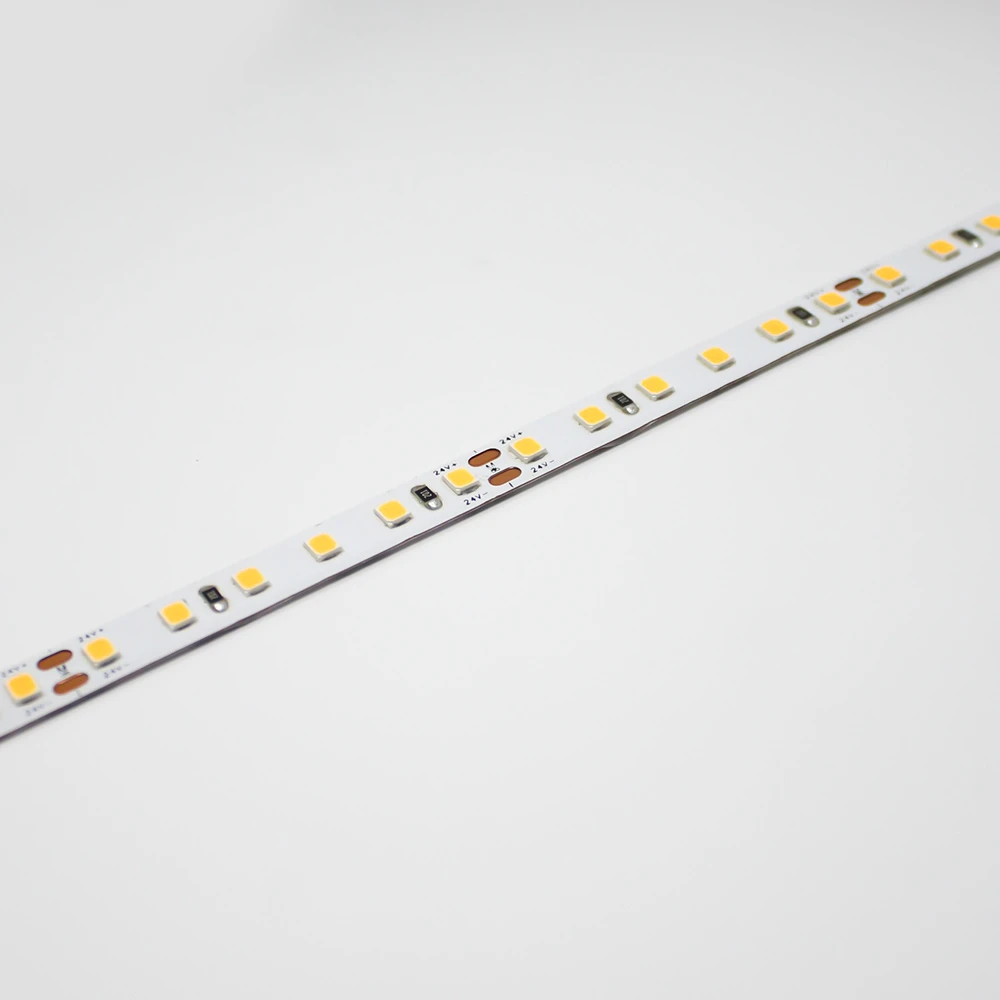

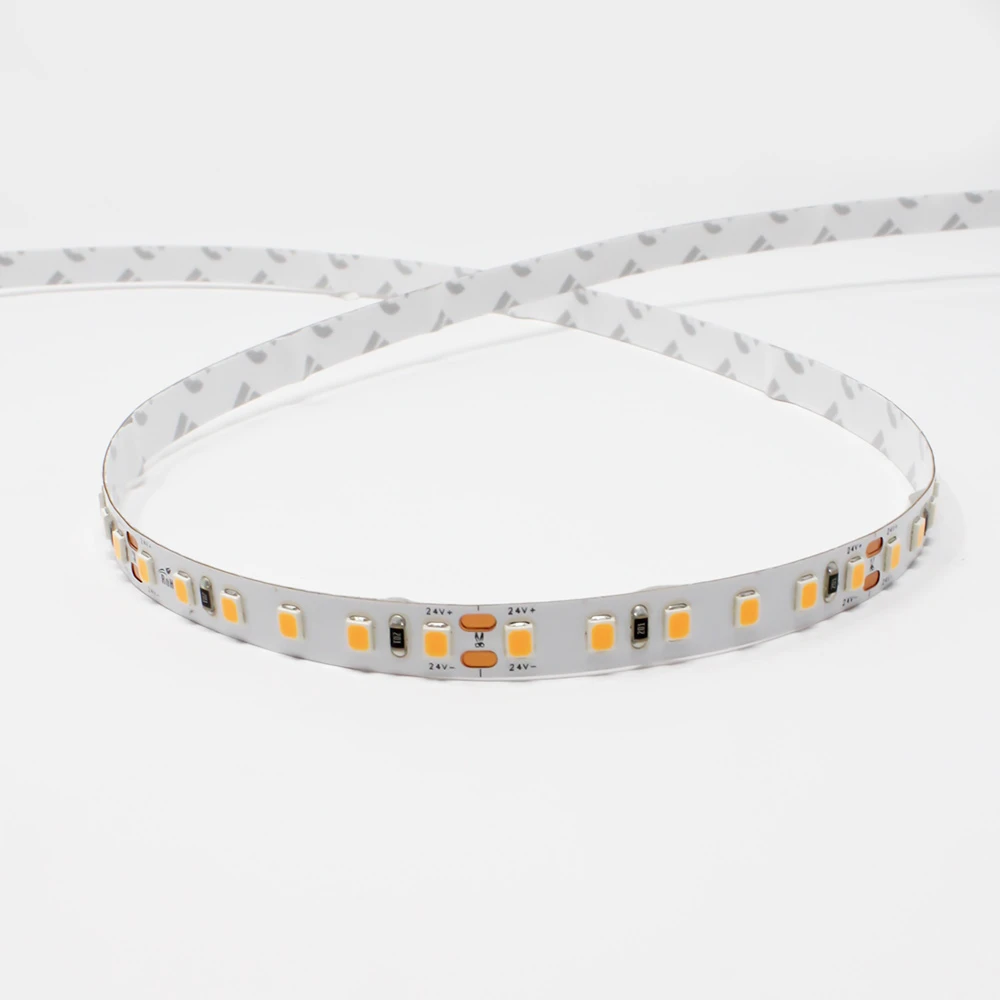

Our Essential Series of LED Tape is supplied exclusively in a continuous 5 Metre length, supplied on a reel with a 2 core tinned end cable at each end of the tape and cut points every 50mm

Designed for your essential display and ambient lighting needs and hosting a >80CRI output with 105 Lumens per watt and 920 Lumens per metre on average, this range of strip light provides cost effective versatile linear lighting solution

Equipped with 120 LEDs Per Metre, this LED Tape is designed to reduce the effects of spotting when installed into deeper LED channels for eye catching linear display and ambient lighting

Supplied with a 3M self adhesive backing for easy fixing into channels and 3 year piece of mind guarantee

Maximum runs of up to 8 linear metres can be achieved with this tape before visible voltage drops occur.

Dimming Compatibility
Compatible with dimmers using standard control protocols including DMX, Dali, 0-10V, PWM.
Compatible with smarthome dimmers including those from Lutron, Loxone, Rayco, Control 4, Lightwave, Wizz, Casambi, Crestron.
All products should be installed by a technically competent person in accordance with BS7671 and all other local regulations.

Product Details:
80+ CRI rating ensures vibrant, natural-looking color tones
36 LEDs/ft
12V input for operation with a vehicle; 24V for longer runs
Run 12V strips up to 5m; run 24V strips up to 7.5m
Strip width measures 8mm
Lifetime exceeds 50000 hours
CE certified and UL listed
Lifetime warranty

Specifications
Certifications/Compliance: CE, UL Listed
CRI: 80+
Dimmable: Yes
Colour: Cool White (6000K)
Dimmer Type: PWM
Operating Voltage: 24 VDC
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
Finish: White
Input Connection Type: Pigtail
IP Rating: IP20
LED Beam Angle: 120°
LED Chip Type: 2835 SMD
Length: 16.4 ft (5 m)
LED Lifetime: 50000 Hours
Strip Width: 8mm (0.31in)
