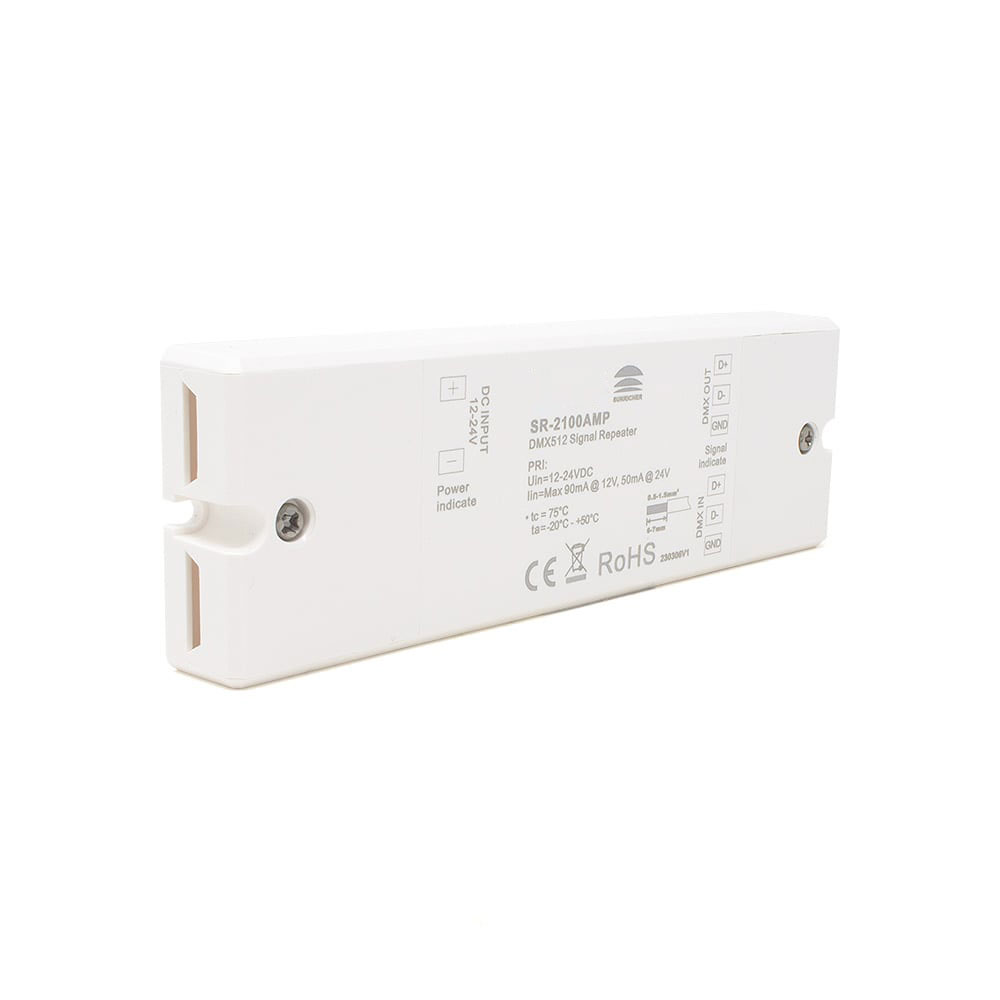

This compact but powerful DMX Signal booster allows you to connect up to 12 x additional DMX decoders or DMX devices into your DMX system. It effectively boosts the DMX signal up to an additional 100m so it is perfect for projects that require DMX products to be spaced out over a longer distance. For longer DMX lengths, additional DMX Signal boosters can be incorporated as required.

The unit features hard wired input and output terminal connections of your DMX signal and then simply connect either a 12v DC or 24v DC supply to power the unit making it easy to set up and use. The in-built LED indicates the presence of a DMX signal and there is also an LED to indicate that power is connected to the unit. There is a 120 Ohm 0.5w resistor supplied with each unit which should be connected between the DMX + & - output terminals on the last DMX product or decoder in the chain, this will stop DMX signal bounce back.

For more information on this or any of our professional DMX products, please contact our technical sales team by phone, email or live chat on our website.

Specifications
Boosts DMX signal for larger installations
Hard wired DMX input & output terminals
DMX signal indicator LED
Input power 12vDC or 24vDC
Boosts signal for 12 x DMX decoders
Signal boost up to 100m
Supplied with a 120 Ohm DMX terminator resistor
5 Year warranty
