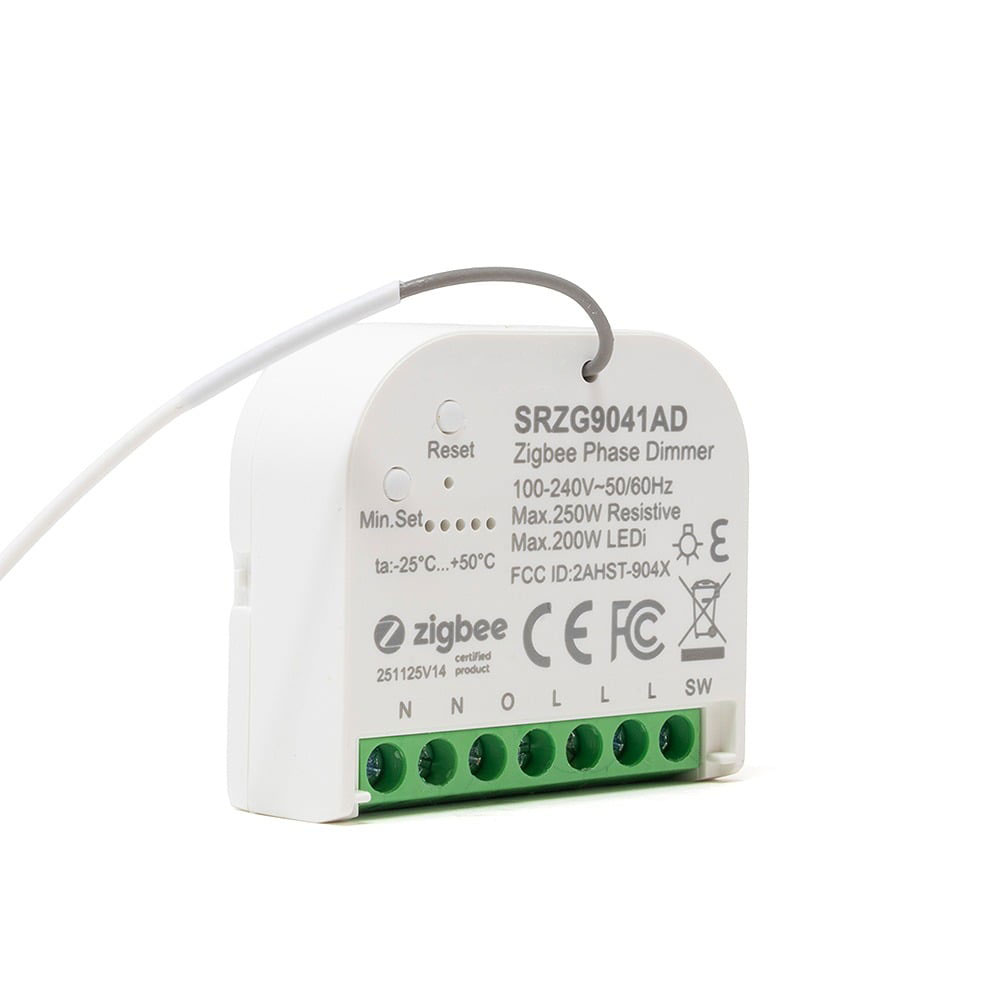

This ZIGBEE Micro Smart AC Phase Cut Dimmer module has advanced microprocessor control and will switch and dim your dimmable mains-powered LED lamps, LED dimmable drivers and Low Voltage halogen lamps up to 200W, it will also work with Incandescent and High Voltage halogen lamps up to 250W. There is a minimum brightness and start up brightness setting and it is equipped with an Active power and Energy Metering functionality; it will work with PUSH dimmers (momentary switches) or toggle switches if required. The micro-Dimmer will fit into a standard UK / EU wall box with a depth of 16mm, it can be connected either using a two-wire system (no neutral wire) or a three-wire system (with neutral). The dimmer is Trailing edge, and this superb quality micro smart dimmer is part of our range of Sunricher lighting control products and can be controlled through your ZIGBEE gateway from your smart phone application using Apple HomeKit, Amazon Alexa and Google Home for example or by voice control using Apple Siri, Amazon Alexa or Google Assistant.

Note: A ZIGBEE Gateway is required for App or voice control.

For more information on this and our other exciting range of lighting control products, please contact our technical sales staff by phone, email or through WhatsApp and Live Chat on our website.

Specifications
ZIGBEE Micro Smart Dimmer
100V - 240V AC input with or without a neutral wire
Supports resistive, Capacitive & Inductive loads
Trailing Edge Dimming
Leading Edge dimming by special order
Up to 250W incandescent & HV Halogen
Up to 200W for LED lamps, dimmable drivers & LV Halogen
Enables On / Off and Dimming
Supports touch link commissioning without gateway
Compatible with ZIGBEE Gateway products
Innovative minimum dimming & startup brightness setting function
Works with PUSH (momentary) or toggle switches
16mm deep can be installed into a standard UK / EU wall box
5 Year Warranty
