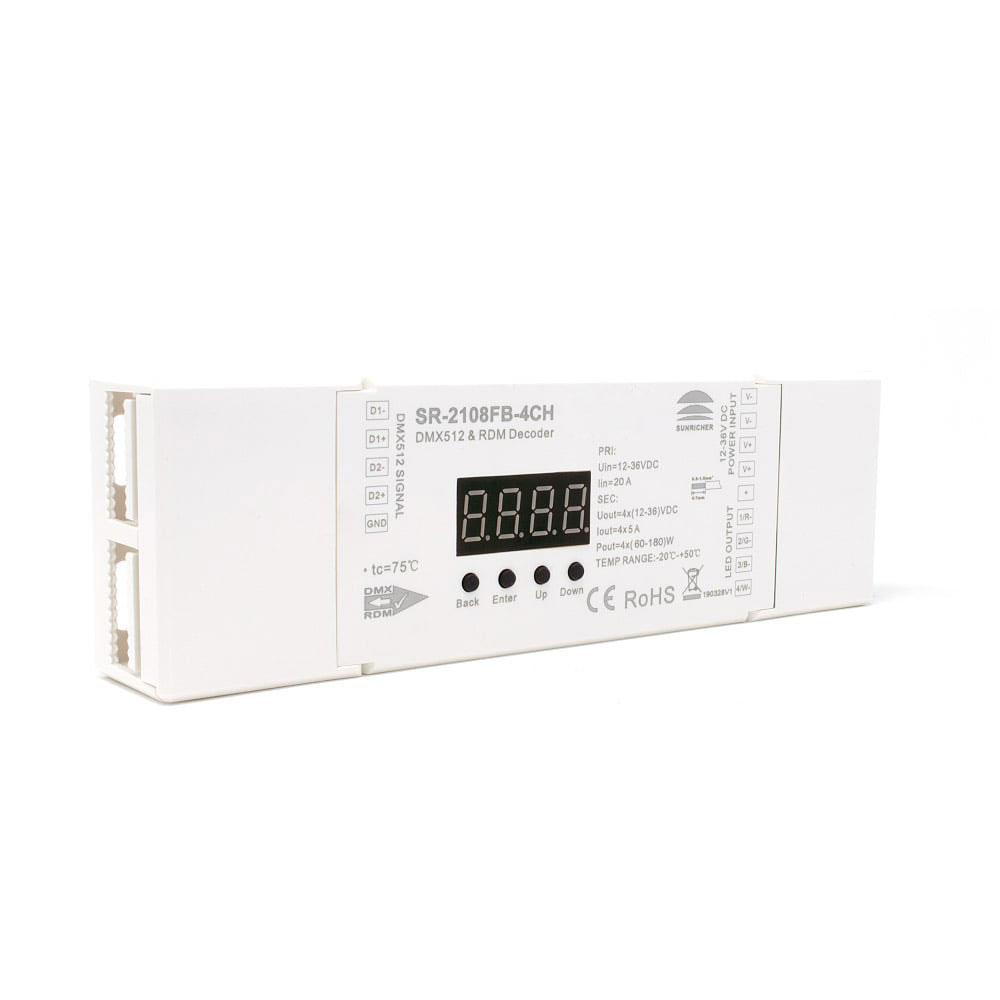

Available from our range of Sunricher LED control products is this 4 Channel DMX Decoder with RDM & Master control.

This professional constant voltage 4 channel DMX512 decoder supports real 16-bit PWM resolution. The 4-channel DMX decoder is designed with both master and slave modes which enable you to have basic control of your LED lighting products without a DMX controller desk. This mode is helpful when testing your DMX LED-controlled LED tape installation.

It features full support of the latest DMX512 protocols and has four DMX channels at 5A per channel constant voltage output. The 4 channel decoder works with 12v, 24v & 36vDC LED products and it is fitted with easy-wiring push grip terminals for ease of installation.

The RDM bi-direction communication function enables the DMX master console to detect and display decoder information and set DMX address etc.

While under decoder mode, a variety of professional features can be set using the digital display and user interface, features such as:

The DMX address
Output channel quantity
PWM output resolution (8 bit or 16 bit)
PWM output frequency
GAMMA ray dimming curve value
DMX decoding mode
The DMX decoder with 4 channels allows this unit to communicate with a single colour, dual white LEDs, RGB & RGBW LED Strip Lights and other LED lighting units.

For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Decoders through our website or contact our technical sales team.

Specifications
Constant Voltage
Four channel professional DMX decoder
RDM function
Adjustable PWM frequency & bit rate
Adjustable dim curve & gamma value
Adjustable 1, 2, 3 or 4 channel modes
Hard wired DMX in/out
Suitable for 4K TV & video production
Master mode for control of LED
