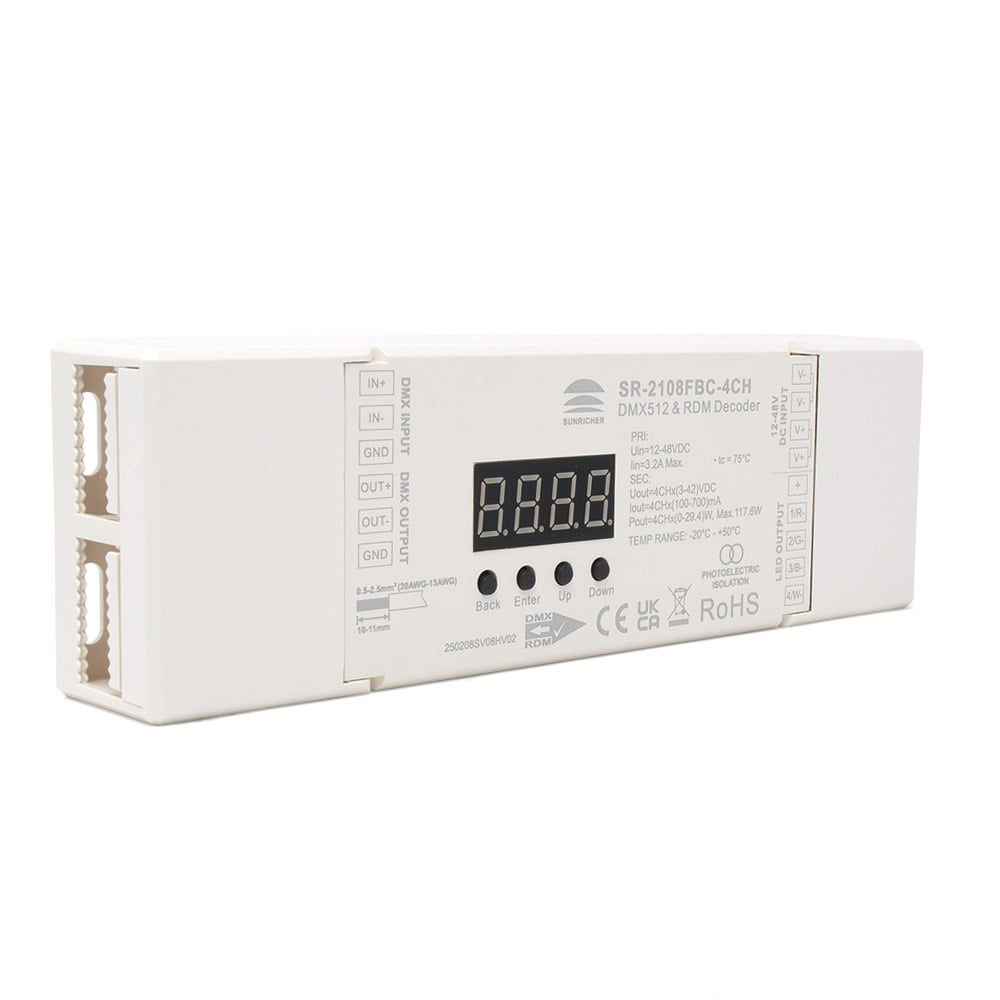

The SR2108FBC4CH is a professional Constant Current DMX Decoder with RDM and Master Mode functions. The output current is settable from 100mA up to 700mA in 10mA increments; other settings, such as the BIT rate and the Gamma value of the dimming curve, can be adjusted using the menu buttons and digital display.

As this decoder is RDM enabled, many settings and adjustments can be made from an RDM compatible DMX Desk and in addition, several DMX personalities are detailed that can be loaded into your DMX desk for ease of operation and the adjustable 8/16 BIT rate is ideal for Film and TV production.

In Master Mode (Run 2), the decoder can be controlled using the on-board menu buttons and digital display enabling basic dimming and colour mixing as part of 32 built in programs for fading and running through the channels. This means that the Decoder can be tested without an attached DMX source, and it can also be used as a basic stand-alone unit. For more information on this and our other LED Lighting control products, please contact our technical sales team by phone, email or by live chat and Whats App on our website.

Specifications
Channel Constant
Four channel professional DMX decoder
RDM function
Adjustable PWM frequency & bit rate
Adjustable dim curve & gamma value
Adjustable 1, 2, 3 or 4 channel modes
Hard wired DMX in/out
Suitable for 4K TV & video production
Master mode for control of LED
