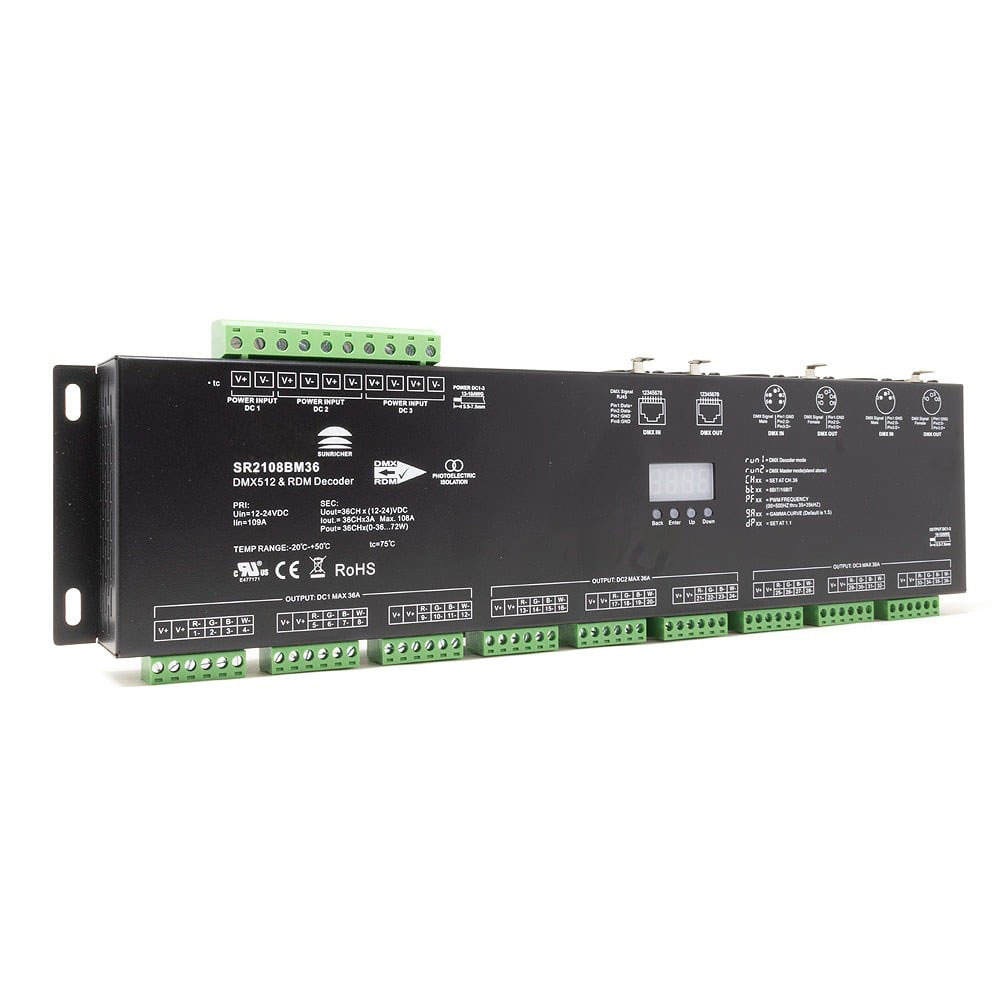

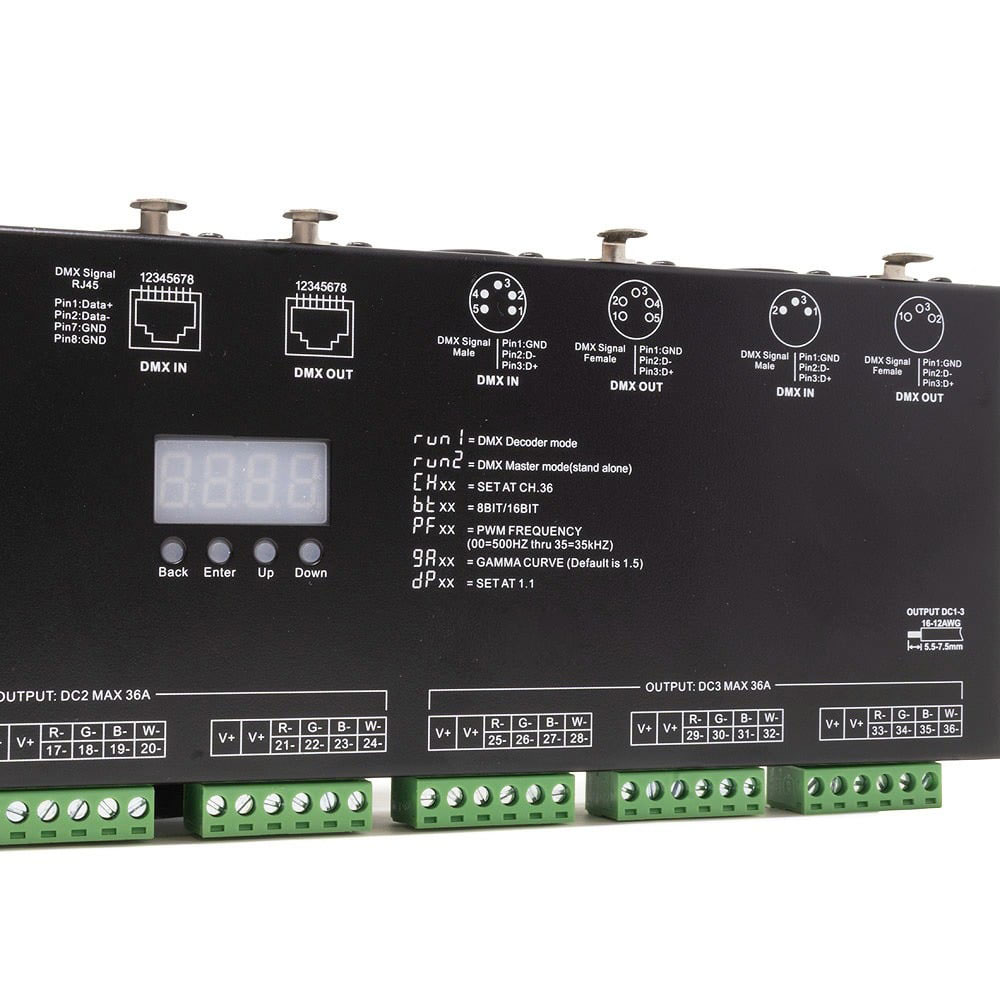

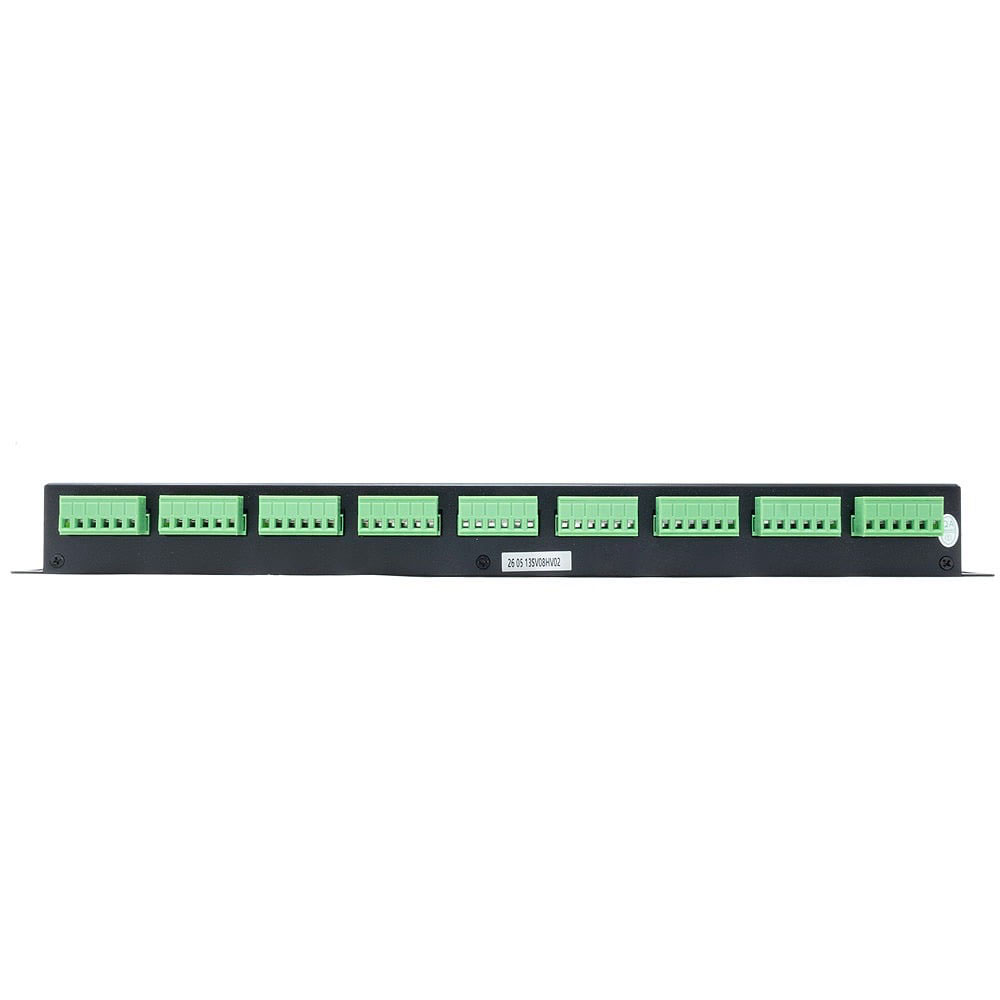

With a host of professional features, this 36 x channel DMX decoder from our Sunricher range of DMX512 control equipment is ideal for controlling up to 9 x sets of RGBW LED strips. Each set of RGBW outputs has 2 x common positive connections and the 9 x RGBW outputs are split into 3 x sets of 3 x outputs. On the input side of the decoder there are three 12v to 24v DC input connections which are designed to power each of the 3 x sets of RGBW outputs, the maximum output load of each channel is 3A. The decoder can be set to single channel mode where all 36 channels work together or 36 channel mode where you will have individual control over each channel. There are many professional features built into the decoder which include RDM, adjustable PWM frequency, adjustable BIT rate and dimming curve gamma value, making this product ideal for film and TV production. When set to Master mode, the channels can be set to various colours or basic programs can be run directly from the onboard display and menu buttons without the need for a control desk. For more information on this and our other professional Sunricher control products please contact our technical sales team by phone, email or via live chat and WhatsApp on our website.

Specifications
36 x channel professional DMX decoder
RDM enabled
Adjustable PWM frequency & bit rate
Adjustable dim curve & gamma value
Adjustable 1 or 36 x channel modes

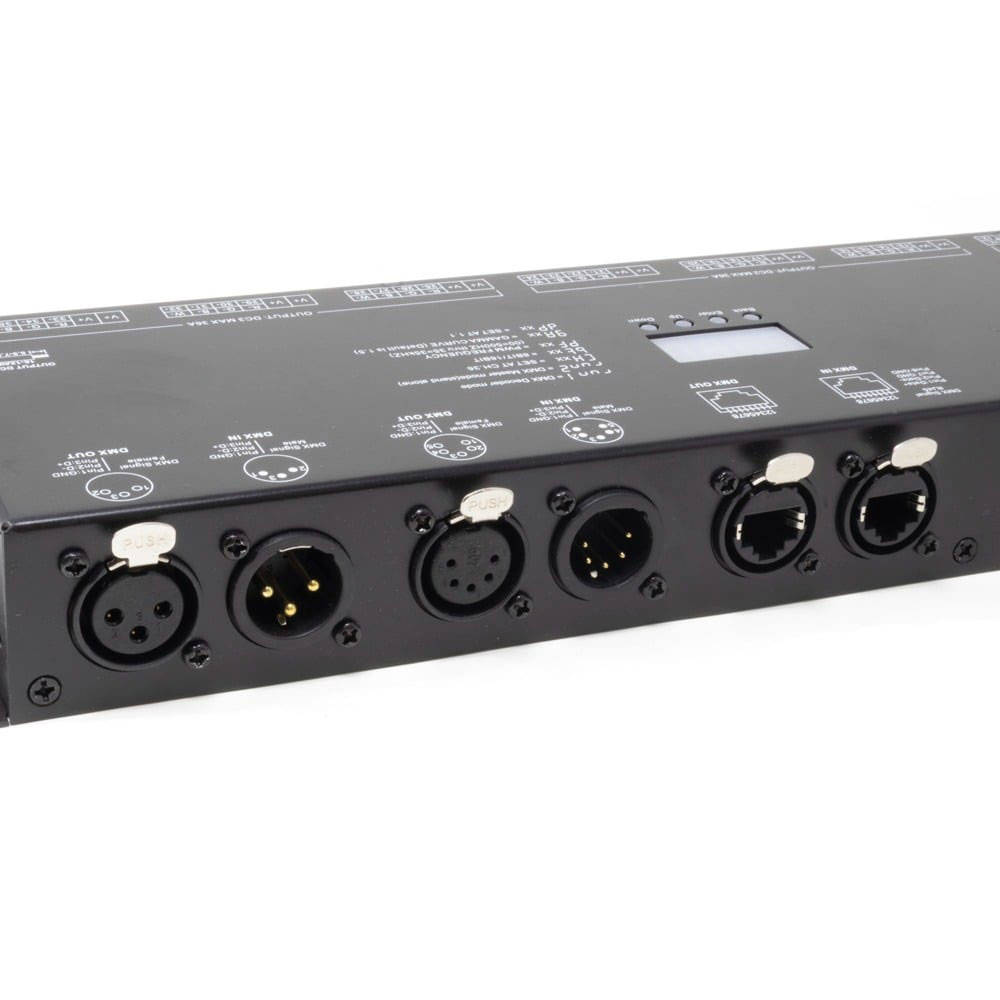

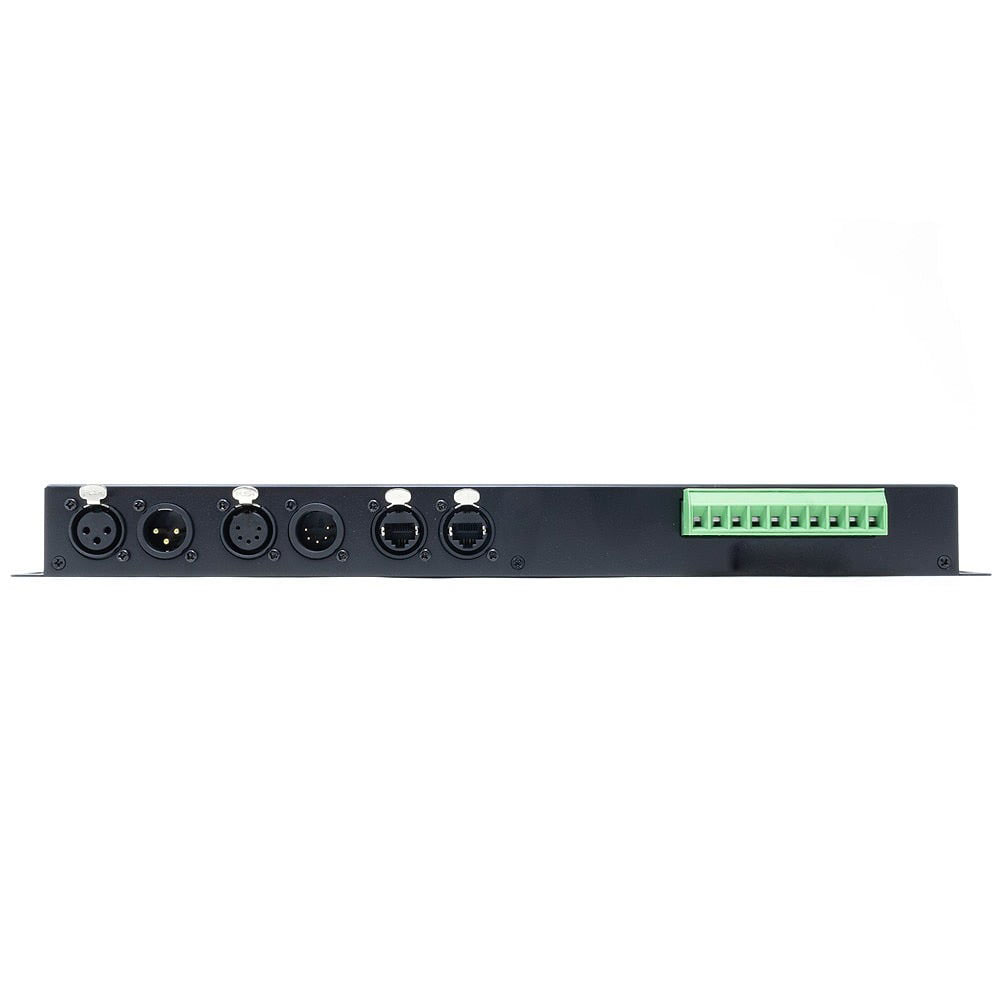

3 Pin and 5 pin XLR DMX in / out
RJ45 DMX in / out
Short Circuit protection

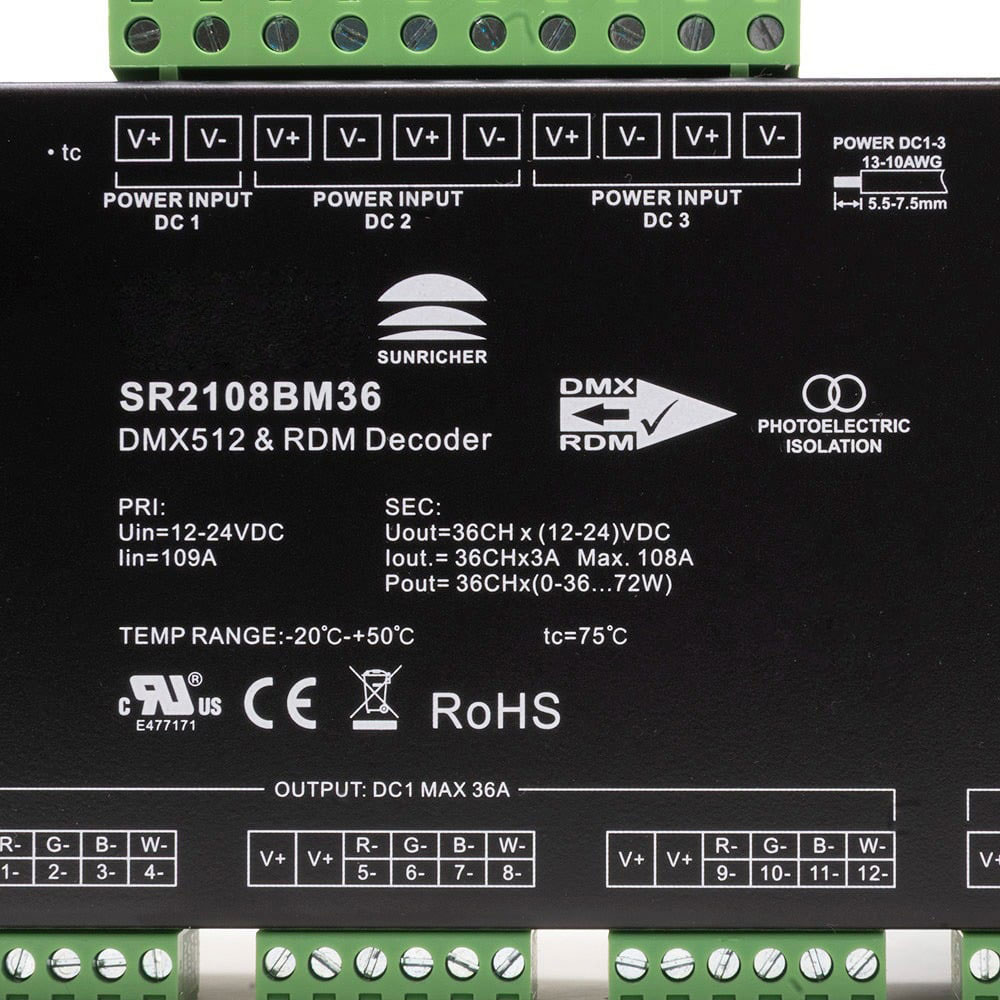

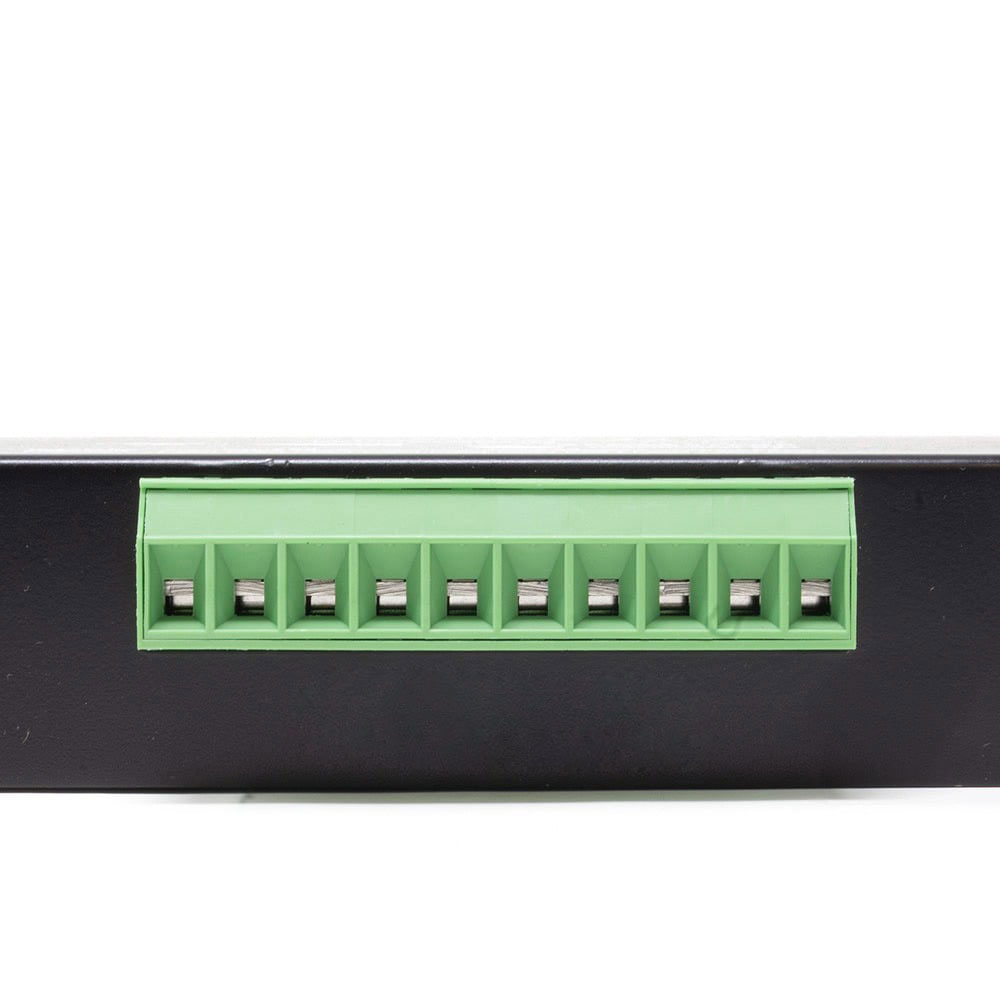

12V to 24V input over 3 x inputs (18 channels each)
35kHz PWM suitable for 4K TV & video production
Master mode

 SR2108BM36 Datasheet
