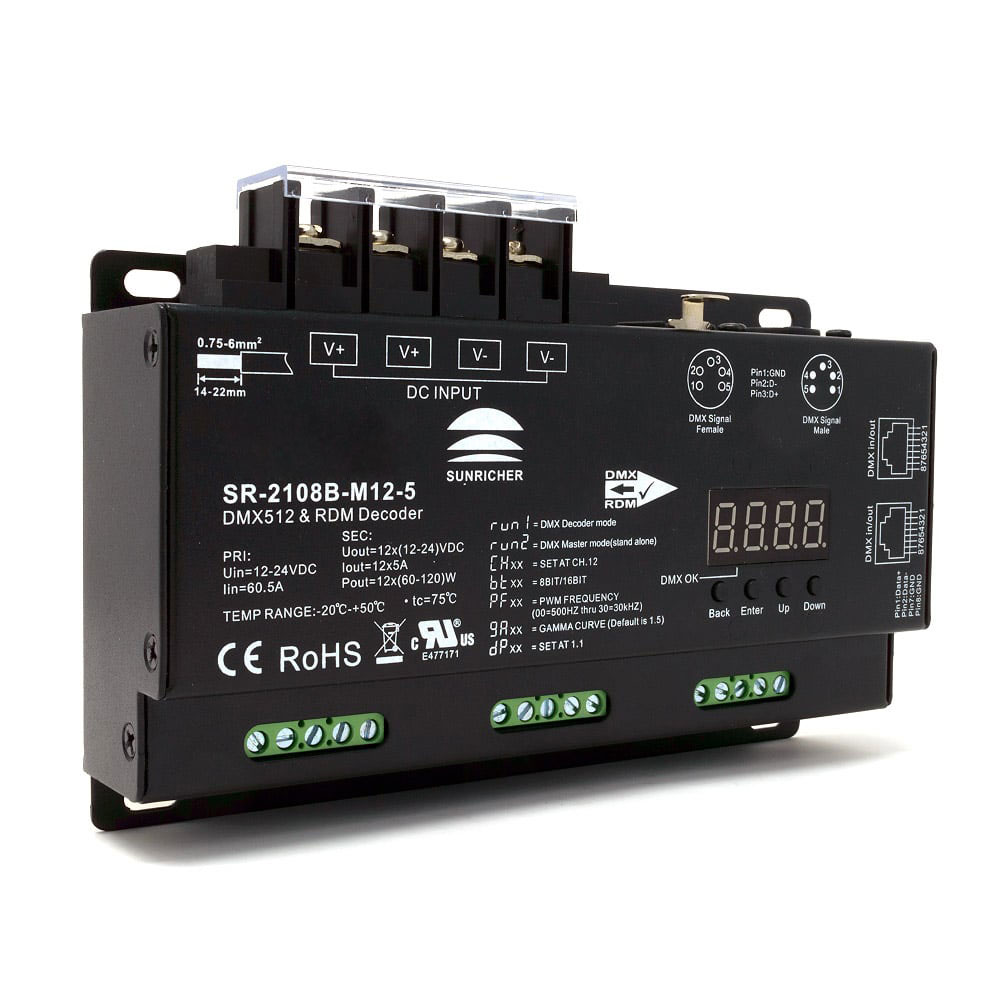

Available from our range of Sunricher LED control products is this Ultra-Pro 12 Channel DMX Decoder with RDM and Master function modes.

This 12-channel DMX decoder is an installation-grade product suitable for use in TV Studios and commercial installations such as hotels, restaurants and retail outlets where multiple sets of LED tapes need to be connected to a DMX data source.

The RDM bi-direction communication function enables an RDM-equipped DMX master console to detect and display decoder information.

This 12 channel DMX decoder features a variety of control functions such as:

DMX address settings
Single or 12-channel operation
8 or 16-bit PWM output resolution
500hz - 30khz PWM output frequency
Adjustable dimming curve gamma value
DMX decoding mode can also be set using the digital display and menu buttons on the DMX controller.
Master Mode
Signal input and output ports for this controller including 5-pin XLR and RJ45 connections are available.

This 12 channel DMX controller also has master control features for basic operation without a DMX desk, connect to an appropriate LED driver in order to control your LED lighting.

The 5 DMX channels allow this unit to communicate with a single colour, dual white, RGB, RGBW & RGB+CCT LED Strip Lights and other LED lighting units.

For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Decoders through our website or contact our technical sales team.

Specifications
12 x channel professional DMX decoder
RDM function
Adjustable PWM frequency & bit rate
Adjustable dim curve & gamma value
Adjustable 1 or 12 x channel modes
5 pin XLR and RJ45 DMX in/out
Suitable for 4K TV & video production
Master mode
