This professional 5 DMX channel decoder with RDM functions is available from our range of Sunricher DMX LED control solutions.

This 5-channel DMX512 decoder is an installation-grade product suitable for use in TV Studios and commercial installations. This 5 channel decoder is the perfect solution to install in places such as hotels, restaurants and retail outlets. This is because larger commercial premises need multiple sets of LED Strip lights of other LED lighting devices that need to be connected to a DMX data source.

The RDM bi-direction communication function enables an RDM-equipped DMX master console to detect and display decoder information.

This DMX 5 channel decoder has a wide variety of professional control features such as:

DMX address setting
Output channel quantity
PWM output resolution (8 or 16-bit)
Adjustable PWM output frequency from 500Hz to 35KHz
GAMMA value, dimming curve
DMX decoding mode can also be set via the digital display and menu buttons
Master Mode
Signal input and output ports for this controller include 5-pin XLR, RJ45 and hard-wired connections.

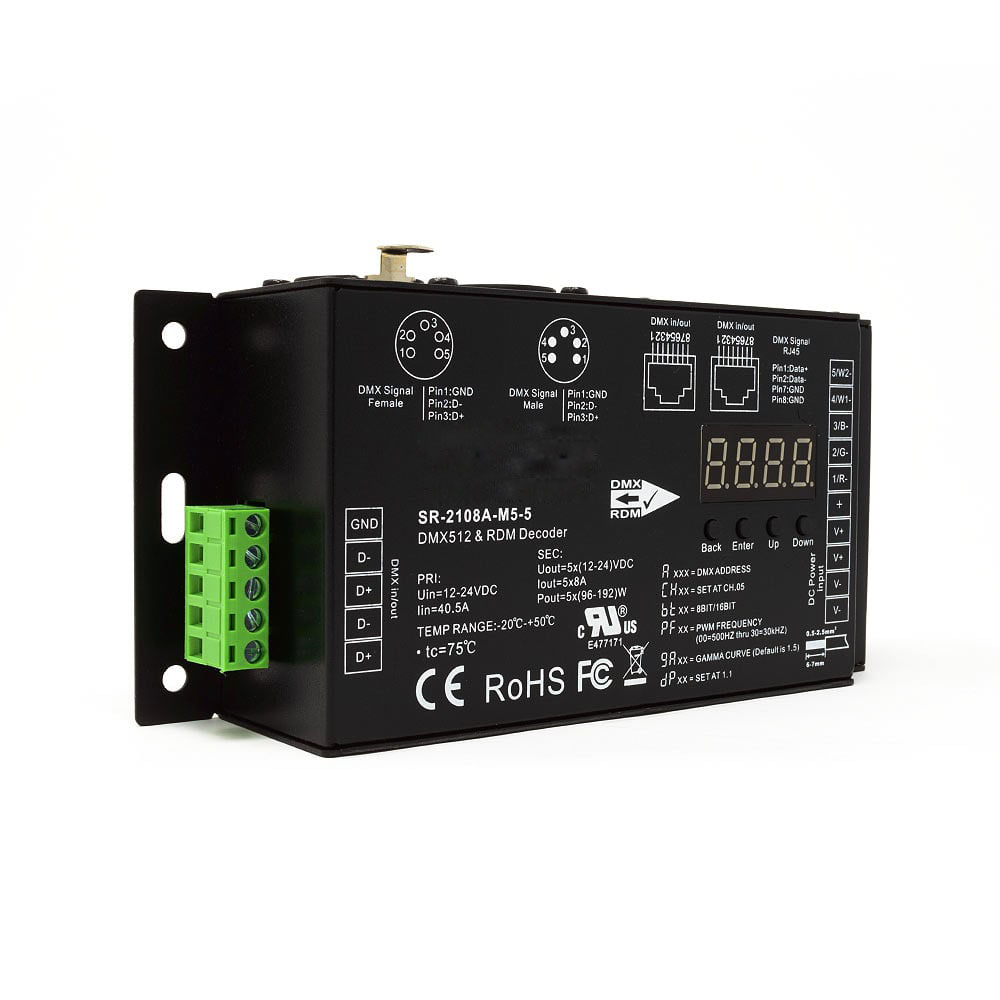

The SR2108AM55 also incorporates a Master Mode function which eneables it to control basic colours and programs with some adjustment to brightness and run speed etc. as a stand alone unit.

When connected to suitable sources, this 5-channel decoder will be able to communicate with a single colour, adjustable white LED tape and RGB & RGBW LED lighting products.

For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of Data Repeaters through our website or contact our technical sales team.

Specifications
Five channel professional DMX decoder
RDM function
Master mode
Adjustable dim curve & gamma value
Adjustable dim curve & gamma value
Adjustable 1, 2, 3, 4 or 5 channel modes
5 pin XLR RJ45 & hard wired DMX in/out
Suitable for 4K TV & video production
Digital display for ease of setup
