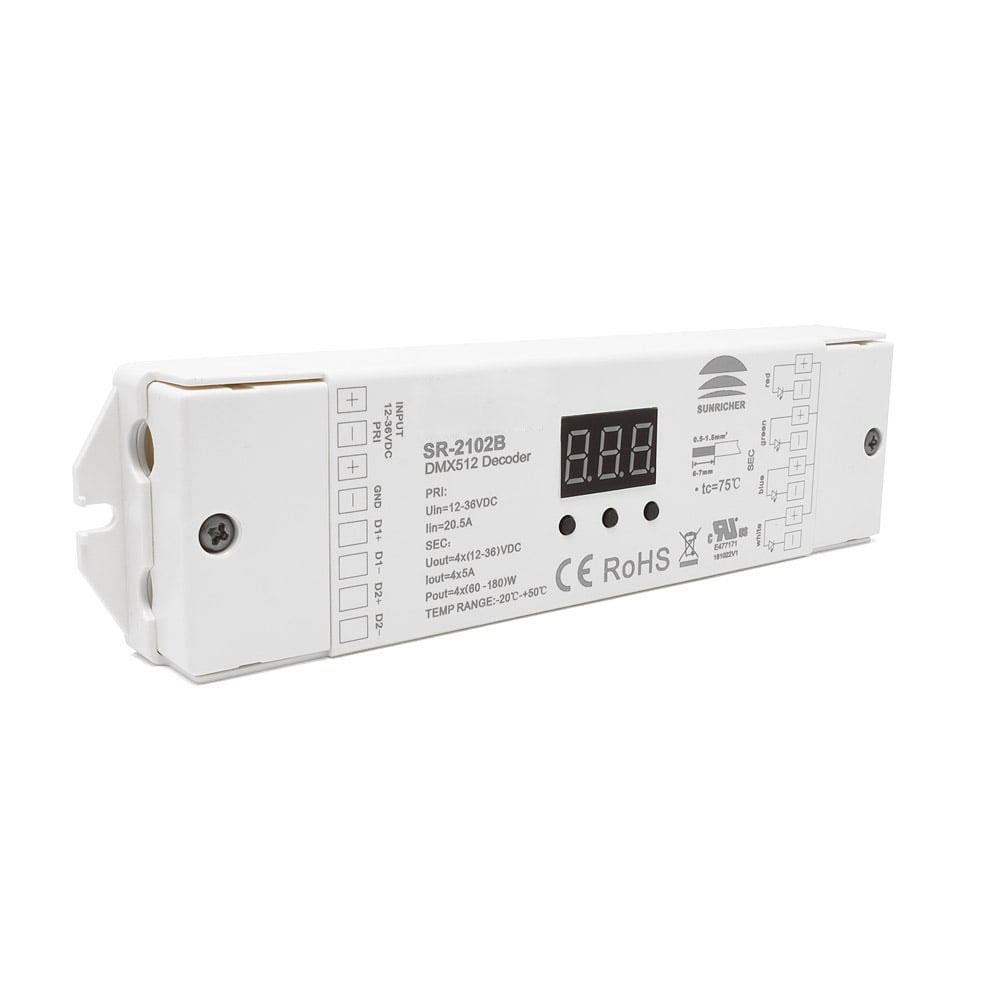

This Constant Voltage 4-Channel DMX decoder with RDM is available from our professional range of Sunricher DMX LED control solutions.

This slim, feature-rich, Constant Voltage 4 channel DMX512 decoder is an installation-grade product suitable for use in domestic and commercial environments. This DMX 4 channel decoder is perfect for use in places such as hotels, restaurants and retail outlets, where multiple sets of LED Strip lights and other LED lighting products are to be connected to a DMX512 data source.

In addition to setting the DMX address, a variety of other features can be adjusted with the menu buttons and digital display. Features such as:

The PWM frequency can be set to either 200hz up to 35KHz
RDM enabled for Bi-directional communication with an RDM enabled DMX controller
Output dimming curve gamma value is also adjustable from from 0.1 to 9.9
It is also possible to set the decoder to 1, 2, 3 or 4 DMX channel operation
For example, when in single-channel mode all four channels will respond to one DMX address.

With its high frequency PWM rate this product is suitable for film and TV work

The DMX decoders 4 channels allow this decoder to be used with a single colour, adjustable white LEDs, RGB & RGBW LED tapes and other lighting units.

For ease of connection, hard-wired input and output terminals are supplied for power. There are also multiple hard-wired output terminals for your LED products.

For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Decoders through our website or contact our technical sales team.

Specifications
Four channel hard wired DMX decoder
RDM enabled for bi-directional communication
Constant voltage PWM controller
Adjustable 1, 2, 3 or 4 channel modes
Adjustable PWM frequency up to 35KHz
Adjustable Gamma dimming curve
Hard wired DMX in/out
Easy setting using the digital interface
Works with 12v - 36v LED products
