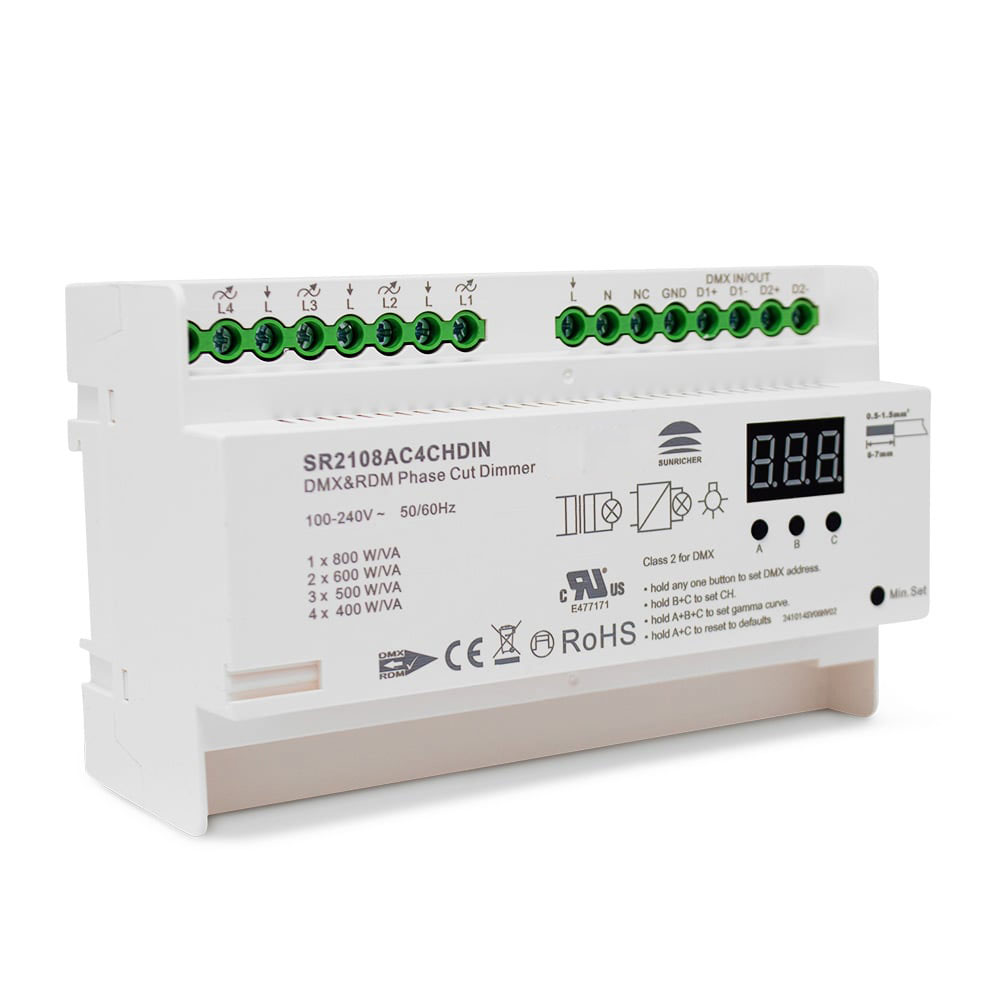

This professional DMX Phase Cut Dimmer from Sunricher can be adjusted to 1, 2, 3 or 4 channel modes as required. It can be mounted on a standard DIN rail mounting fixture and it is compatible with all DMX 512 installations. The dimmer is RDM compatible so many settings can be accessed remotely from an RDM-enabled DMX controller. The input voltage can range from 100V AC to 240V AC 50/60 Hz. The dimming curve gamma value is fully adjustable, and the minimum brightness level can also be set to avoid flickering and dropping out at a low dimming level.

The unit can control the brightness of resistive or capacitive loads, so it will control dimmable LED lamps, dimmable LED drivers, incandescent 240V lamps, and low-voltage halogen lighting with electronic transformers.

For more details on this and all our professional control products please contact our technical sales team by email, phone or via live chat and WhatsApp on our website.

Specifications
Four channel Phase Cut Dimmer
Trailing edge dimming
Supports Resistive & Capacitive loads
RDM enabled
Adjustable channel output 1, 2, 3 or 4 channel
Adjustable output dimming curve
100V to 240V AC input / output
DIN rail mountable
