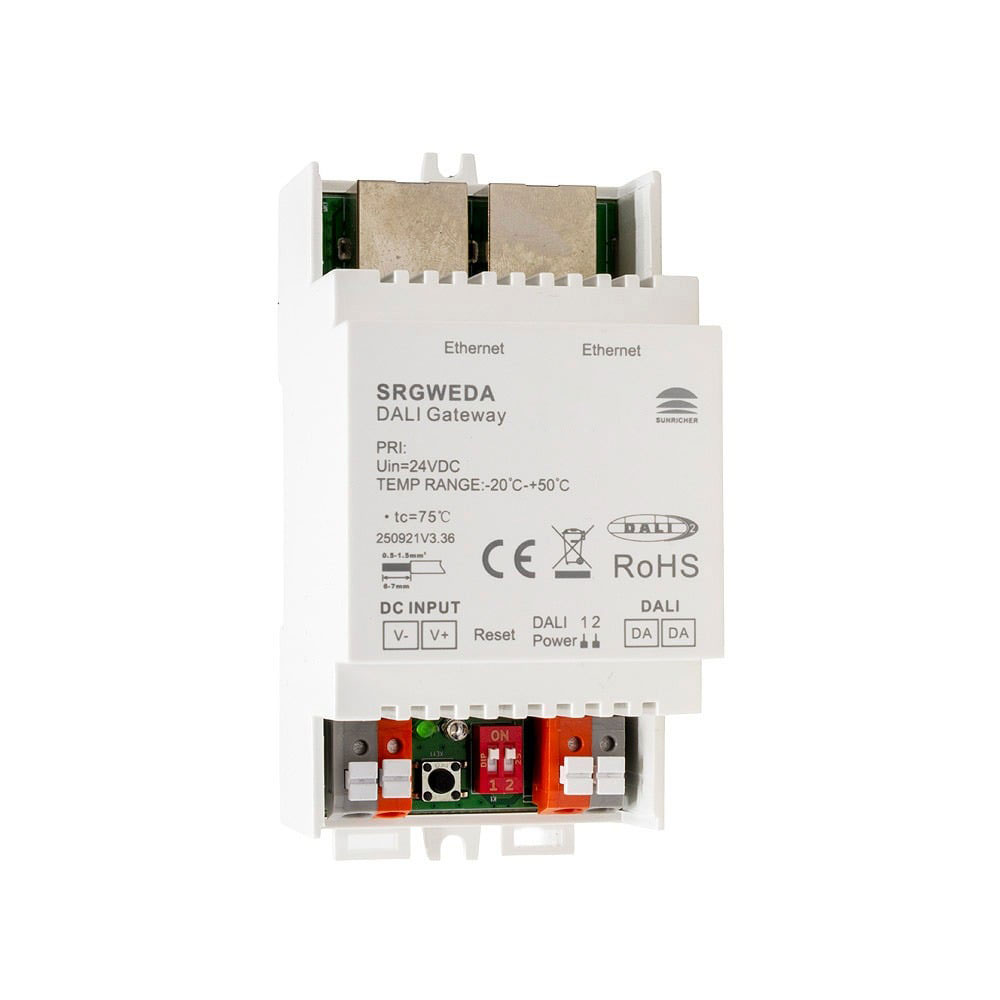

This superb DIN Rail mountable DALI Gateway supports DALI 2 protocols and should be connected to your router using an RJ45 connector. It nables you to contorl your DALI products wirelessly from your PC with DALI Master software installed. The Gateway is DIN rail mountable and has RJ45 input and output connectors to enable Multiple units to be daisy chained together if required. The gateway has a built in switchable DALI BUS power supply which has a maximum output of 250mA. Please note that when the internal DALI BUS is switched off, the number of devices that can be controlled will be dependant on the output of your external connected DALI BUS PSU. Your DALI centre connects to your router wirelessly, please download the DALI Master Software to your PC. There are test functions built into the gateway to enable you to switch on and off all the lights connected to the DALI BUS and the IP address can be set to 10.10.10.100 or using DCHP mode it can be set by the router. The SRGWEDA DALI2 gateway supports DALI DT6, DALI DT8, TC, XY & DALI DT8 RGBWA protocols. Note: It is recommended not to connect more than 8 DALI sensors to a single DALI BUS otherwise if all the sensors are triggered at the same time the totla load could exceed the current limit of the DALI BUS.

Specifications
Supports DALI DT6, DT8, TC, XY, DT, RGBW Protocols
Built in switchable DALI BUS PSU
Built in battery
Built in RTC, supports timer task configuration
Supports addressing, grouping & scene configuration
Fast & easy configuration through the centre DALI PC App
Single channel DALI output
24V DC input
5-Year Warranty
