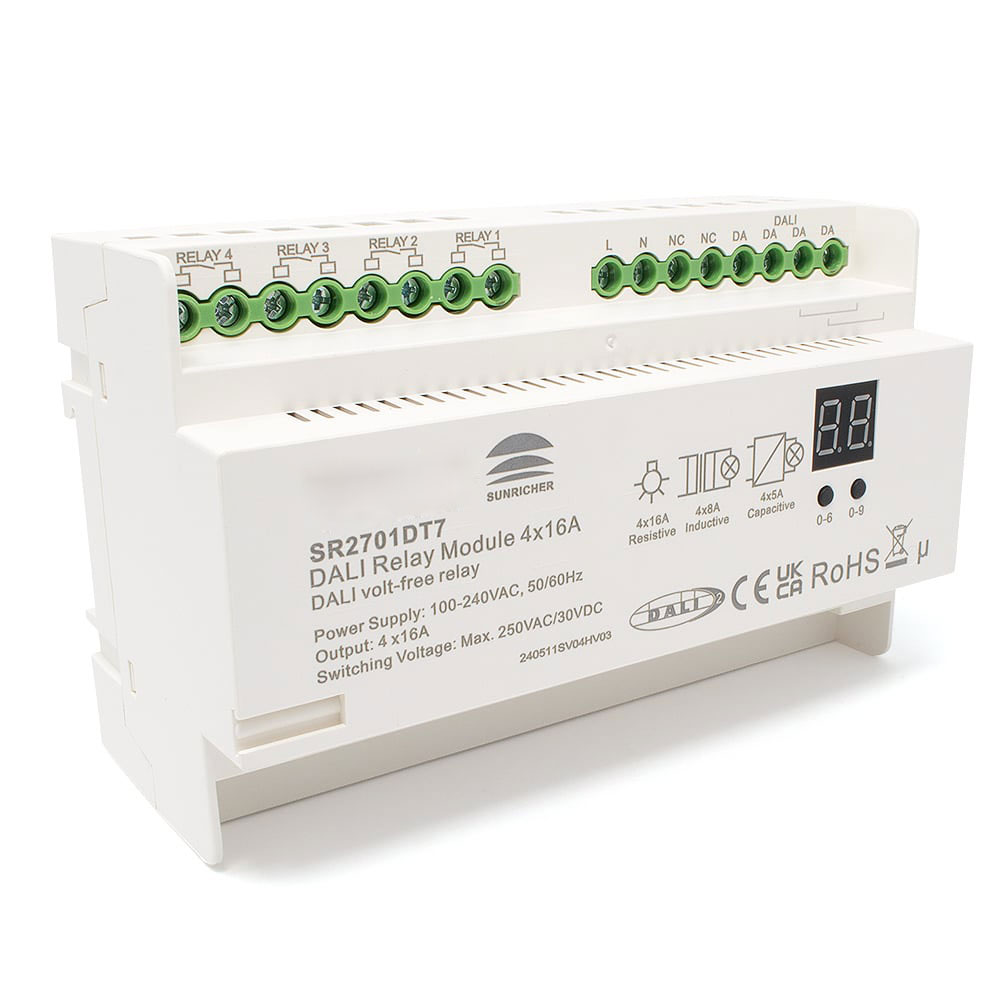

This four-channel DALI Relay is available from our professional range of control products by Sunricher. This unit can switch each channel individually or by adjusting the unit to 1, 2, 3 or 4 DALI addresses it can switch the channels together as required.

The relay is DALI 2 certified and can switch AC products up to 250V AC. This product can also switch up to 30V DC with a maximum current per channel of up to 16A.

Designed to be DIN Rail mounted, this DALI switch relay is perfect for commercial or domestic installations. This DALI Relay module can switch Resistive loads up to 3680W, Capacitive loads up to 1150W, or Inductive Loads up to 1840W.

For more information on this or any of our professional control products, please contact our technical sales team by phone, email or Live Chat and Whats App on our Website.

Specifications
DALI 2 Certified four-channel relay module
Works with resistive, inductive & capacitive loads
Settable DALI address 1,2,3 or 4 channel
Address settable by DALI master or manually
4 x 16A outputs
Input voltage 100V - 240V AC
Max switching voltage AC 250V, DC 30V
DIN rail mountable
