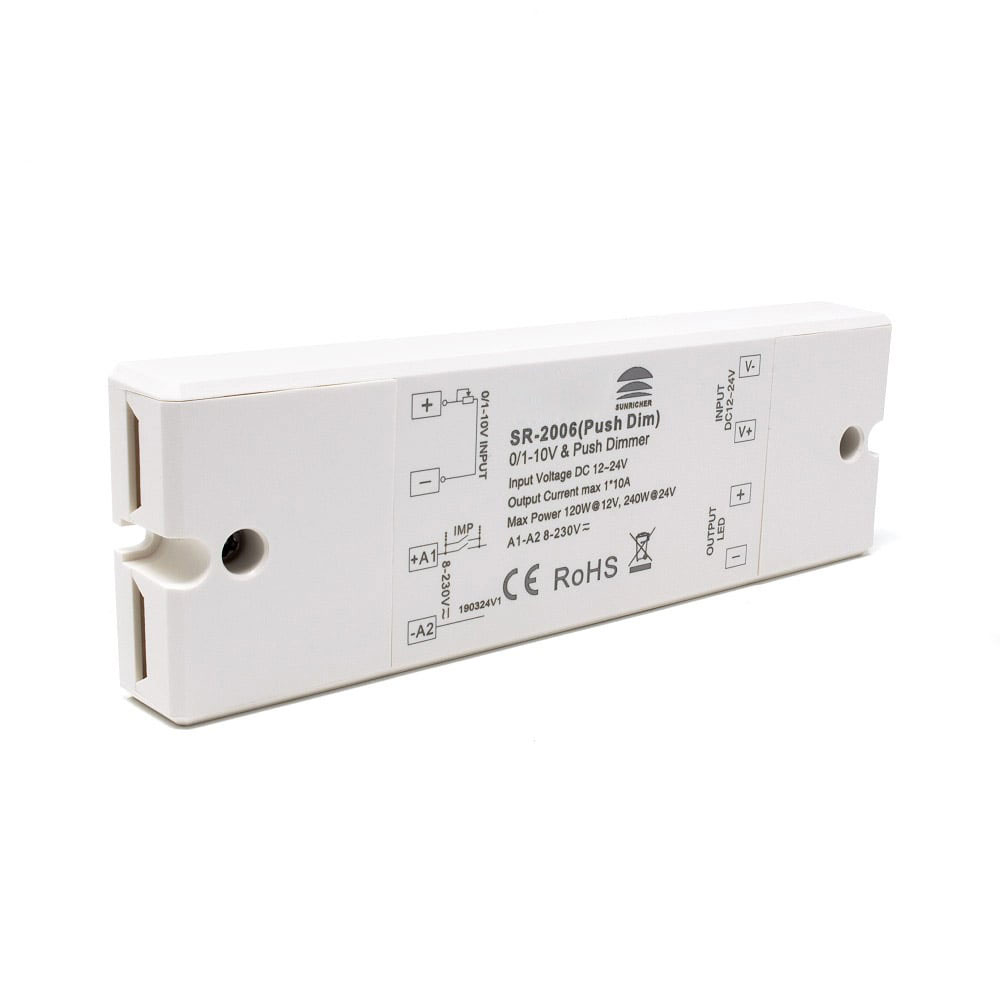

This high quality RF single channel 0-10v dimmer  is from the Sunricher range. It is designed to convert a 0-10v signal to PWM (Pulse width modulation) for LED lighting control.

The PWM dimmer is the perfect installation for domestic and commercial markets. It can be used in a range of spaces such as hotels, offices and retail outlets that has an existing 0-10v lighting control system installed.

The Radio frequency dimmer is perfect for dimming and switching on or off LED lighting. It is designed for 12v or 24v LED lighting products such as single colour dimmable LED Tape / LED strip lights or Neon flex.

The RF dimmer will need to be connected to a suitable constant voltage driver and then to the single colour LED product. Then connect to a 0-10v dimmer control unit to the input connections for full smooth dimming.

If required, you can also connect a LED Push Dimmer to the appropriate terminal on the dimmer to achieve a push dimming option.

You can also connect a 0-10v LED controller such as wall panels to make controlling professional lights easy.

The LED dimmer requires 12v or 24v DC power supply to operate with an output of the same.

This is the perfect installation where control over 0-10v lighting system is required.

Specifications
Single channel 0-10v PWM dimmer
Constant voltage PWM controller
Uses 0-10v logarithmic characteristics
256 Levels of grey scales with no flicker
Connects to 1 x 1-10v controller
Smooth dimming curve
Works with 12v & 24v LED products
Supports loads up to 10A
